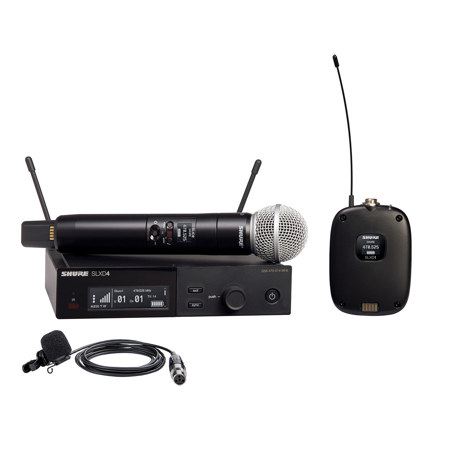

Shure SLXD124 Digital Wireless Combo System w/SM58 Capsule & WL185M Lavalier Mic J52: 558-616MHz

SKU: SHSL12485J52 MFR: SLXD124/85M-J52
Earn VIP Reward Points

Key Features

  • Crystal-clear digital audio with >120 dB dynamic range for superior sound quality
  • Reliable SLX-D Digital Wireless technology ensures stable signal performance
  • SLXD1 Bodypack Transmitter with TQG connectivity for versatile microphone options
  • SLXD4 Receiver supports easy pairing and up to 32 channels per frequency band
  • SLXD2 Handheld Transmitter includes legendary SM58 Microphone Capsule for vocal clarity
  • WL185M Lavalier Microphone offers improved presence response & flexible placement options
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD124 Digital Wireless Combo System w/SM58 Capsule & WL185M Lavalier Mic Specifications

SLXD4 Receiver

SLXD4 Receiver

Jump to...
  • Available Frequency Bands

    G58: 470-514MHz, H55: 514-558MHz, J52: 558-616MHz

  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

  • Impedance

    50 Ohm

  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Full Scale Output

    1/4" (6.35mm): +15 dBV differentially (+9 dBV single)
    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA
    Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    Without Antennas: 1.8 lbs (816g)

SLXD1 Transmitter

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier (EIN)

    -118 dBV

  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

  • Housing

    PC/ABS

  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD2/SM58: General

Jump to...
  • RF Bandwidth

    44 MHz

  • Frequency Step Size

    25 kHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    328' (100m)

  • Max Transmitters per Band

    32

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    No

  • Sample Rate/Resolution

    24-Bit

  • Latency

    3.2 ms

  • Encryption

    No

SLXD2/SM58: Transmitter

Jump to...
  • Transmitter Type

    Handheld

  • RF Output Power

    1 / 10 mW

  • Built-In Microphone

    Yes

  • Audio I/O

    No

  • Pad

    No

  • Muting

    No

  • Audio Input Level

    8.2 dBV

  • Auto-Level Control

    No

  • Gain Range

    0 +21 dB

  • Signal Processing

    No

  • Frequency Response

    20 Hz to 20 kHz (Dependent on Mic)

  • Sync Method

    IR

  • Antenna

    Internal Single-Band Helical

  • Power Requirements

    Battery

  • Battery

    2x AA (Included)
    1x Shure SB903 (Not Included)

  • Battery Charging Time

    1.25 to 5.5 Hours

  • Approx. Battery Life

    8 Hours (Lithium Shure SB903)
    8 Hours (Alkaline)

  • USB/Lightning I/O

    No

  • Display & Indicators

    LCD (Battery Status, Channel, Group, Power)

  • Housing

    Aluminum

  • Operating Temperature

    0 to 122 Degree F (-17 to 50 Degree C)

  • Storage Temperature

    -20 to 165 Degree F (-28 to 73 Degree C)

  • Dimensions

    1.5 x 6.9" (37.1 x 176mm)

  • Weight

    5.2 oz (147g)

SLXD2/SM58: Microphone

Jump to...
  • Color

    Black

  • Microphone Type

    Handheld Capsule

  • Sound Field

    Mono

  • Operating Principle

    Pressure Gradient

  • Capsule

    Dynamic

  • Polar Pattern

    Cardioid

  • Frequency Range

    50 Hz to 15 kHz

  • Sensitivity

    -54.5 dBV/Pa

  • CMRR

    No

  • Diameter

    1.97" (50mm)

WL185M Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Compatible Transmitters

    Shure: Axient AD1, Axient ADX1, Axient AXT100, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, ULXD1

  • Intended Sound Sources

    Vocals, Speech

  • Sound Field

    Mono

  • Element Type

    1x Electret Condenser

  • Polar Pattern

    Cardioid

  • Included Tone Caps

    No

WL185M Microphone: Performance

Jump to...
  • Frequency Range

    70 Hz to 20 kHz

  • Maximum SPL

    140.5 dB SPL (1% THD)

  • Sensitivity

    -43 dBV/Pa

  • Dynamic Range

    120.5 dB

  • Signal-to-Noise Ratio

    74 dB

WL185M Microphone: Connectivity

Jump to...
  • Output Connector

    1x TA4F/Mini-XLR 4-Pin Female

  • Cable Length

    4' / 1.22 m

WL185M Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    5 V (Plug-In Power)

WL185M Microphone: Physical

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Dimensions (Dia. x L)

    0.5 x 0.53" (12.74 x 13.55mm) (Approx.)

  • Weight

    0.7 oz (20g) (with Cable)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

  • UPC Code

    42406852319

About Shure SLXD124 Digital Wireless Combo System w/SM58 Capsule & WL185M Lavalier Mic

If you're seeking a reliable and high-performance digital wireless system, the Shure SLXD124 Digital Wireless Combo System with SM58 Capsule and WL185M Lavalier Microphone is an exceptional choice. This versatile system is designed to meet the demands of various applications, including events, presentations, speeches, houses of worship, and live performances in clubs.

The SLX-D Digital Wireless Systems ensure your performance is never compromised, offering crystal-clear digital audio quality with an impressive >120 dB dynamic range. This system is engineered to eliminate dropouts, maintaining stable signals and delivering rock-solid, reliable performance, thanks to Shure's industry-leading digital wireless technology.

The SLXD1 Digital Wireless Bodypack Transmitter provides transparent 24-bit digital audio and robust RF performance. It features TQG connectivity, allowing compatibility with a wide range of microphone options, making it suitable for both day-long conferences and nighttime performances. The transmitter is ergonomically designed with durable plastic construction and offers up to 8 hours of operation using 2 AA batteries or the optional Shure SB903 Li-ion rechargeable battery.

The SLXD4 Digital Wireless Receiver complements the system with its transparent 24-bit digital audio and rugged metal construction. It supports easy pairing of transmitters and receivers via scan and IR sync, and offers a 44 MHz tuning bandwidth (region dependent) with up to 32 available channels per frequency band. This receiver can accommodate up to 10 compatible systems per 6MHz TV band and 12 systems per 8 MHz band, ensuring flexibility and adaptability in various environments.

Included in this combo system is the SLXD2 Wireless Handheld Transmitter with the legendary SM58 Microphone Capsule, renowned for its reliability in speech presentation and vocal performance. This handheld transmitter is ideal for lecture halls and live entertainment, providing a seamless sync with the wireless receiver.

Additionally, the WL185M Low-Profile Cardioid Lavalier Microphone offers professional-grade sound quality with an improved presence response for clear vocal reproduction. Its compact design, 8 mm shorter than previous models, allows for flexible placement on speakers, presenters, and performers. Available in black or white with LEMO or TA4F connector options, the lavalier includes a snap-fit windscreen, single tie clip, and a zippered bag for convenient storage and transport.

With the Shure SLXD124 Digital Wireless Combo System, you can confidently deliver your message with clarity and precision, ensuring your audience remains engaged and connected.

Shure SLXD124 Digital Wireless Combo System w/SM58 Capsule & WL185M Lavalier Mic Features

  • SLXD4 Digital Wireless Receiver
  • 118 dB dynamic range
  • 44MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8MHz band
  • Compatible with Shure Wireless Workbench control software
  • Remote monitoring and control via ShurePlus Channels app
  • Rugged metal construction
  • SLXD1 Bodypack Transmitter
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • TQG connectivity offers a variety of microphone options
  • Ergonomic, durable plastic construction
  • SLXD2 Wireless Handheld Transmitter with SM58 Microphone Capsule
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery (sold separately)
  • Interchangeable microphone capsules
  • WL185M Low-Profile Cardioid Lavalier Microphone
  • Cardioid (WL185m) polar pattern
  • 8mm shorter than original WL18X series
  • Higher dynamic range with improved max SPL, self-noise, and general sound quality when compared to the original WL18X series
  • TA4F connector option
  • Ships with lavalier, tie clip, snap-fit foam windscreen, and zippered storage bag

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Crystal-clear digital audio with >120 dB dynamic range for superior sound quality
  • Reliable SLX-D Digital Wireless technology ensures stable signal performance
  • SLXD1 Bodypack Transmitter with TQG connectivity for versatile microphone options
  • SLXD4 Receiver supports easy pairing and up to 32 channels per frequency band
  • SLXD2 Handheld Transmitter includes legendary SM58 Microphone Capsule for vocal clarity
  • WL185M Lavalier Microphone offers improved presence response & flexible placement options

What's in the box:

  • SLXD4 Digital Wireless Receiver
  • SLXD1 Bodypack Transmitter
  • SLXD2 Wireless Handheld Transmitter with SM58 Microphone Capsule
  • WL185M Low-Profile Cardioid Lavalier Microphone
  • Rackmounting Hardware
  • 2x 1/4 Wave Antennas
  • 4x AA Batteries
  • PS43US 15-VDC Power Supply
  • Wireless Microphone Clip
  • Single Tie-Clip
  • Snap-Fit Foam Windscreen
  • Zippered Storage Bag for Mic
  • Shure 2 Year Limited Warranty
