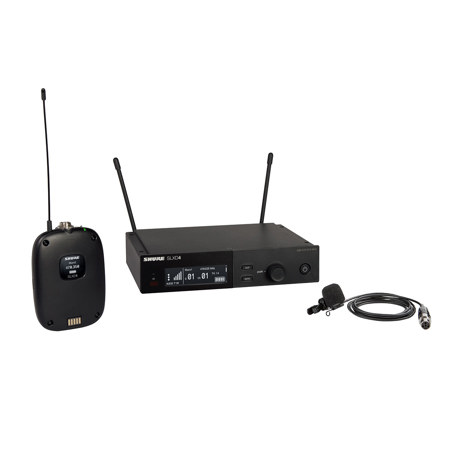

Shure SLXD14 Digital Wireless System with WL185M Cardioid Lavalier Microphone J52: 558-616MHz

SKU: SHSLX1485J52 MFR: SLXD14/85M-J52
Earn VIP Reward Points

Key Features

  • Effortless synchronization with SLXD1 Bodypack Transmitter for seamless audio transmission
  • Versatile microphone options with interchangeable connectors for flexible placement & use
  • Innovative tie clip design allows 90-degree rotation for precise microphone positioning
  • Complete with snap-fit windscreen, tie clip, & zippered bag for easy storage & transport
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD14 Digital Wireless System with WL185M Cardioid Lavalier Microphone Specifications

General

General

Jump to...
  • Available Frequency Bands

    G58: 470-514MHz, H55: 514-558MHz, J52: 558-616MHz

SLXD4 Receiver

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Connector Type

    BNC

  • Impedance

    50 Ohm

  • Impedance

    50 Ohm

  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Full Scale Output

    1/4" (6.35mm): +15 dBV differentially (+9 dBV single)
    XLR (LINE setting): +15 dBV
    XLR (MIC setting): -15 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

  • Housing

    Galvanized Steel

  • Power Requirements

    15 VDC @ 600 mA
    Supplied by external power supply (tip positive)

  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    Without Antennas: 1.8 lbs (816g)

SLXD1 Transmitter

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier (EIN)

    -118 dBV

  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

  • Housing

    PC/ABS

  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1.0" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

WL185M Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Compatible Transmitters

    Shure: Axient AD1, Axient ADX1, Axient AXT100, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, ULXD1

  • Intended Sound Sources

    Vocals, Speech

  • Sound Field

    Mono

  • Element Type

    1x Electret Condenser

  • Polar Pattern

    Cardioid

  • Included Tone Caps

    No

WL185M Microphone: Performance

Jump to...
  • Frequency Range

    70 Hz to 20 kHz

  • Maximum SPL

    140.5 dB SPL (1% THD)

  • Sensitivity

    -43 dBV/Pa

  • Dynamic Range

    120.5 dB

  • Signal-to-Noise Ratio

    74 dB

WL185M Microphone: Connectivity

Jump to...
  • Output Connector

    1x TA4F/Mini-XLR 4-Pin Female

  • Cable Length

    4' / 1.22 m

WL185M Microphone: Power

Jump to...
  • Power Sources

    Plug-In Power

  • Operating Voltage

    5 V (Plug-In Power)

WL185M Microphone: Physical

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Dimensions (Dia. X L)

    0.5 x 0.53" (12.74 x 13.55mm) (Approx.)

  • Weight

    0.7 oz (20g) (with Cable)

  • UPC Code

    42406852159

About Shure SLXD14 Digital Wireless System with WL185M Cardioid Lavalier Microphone

Experience unparalleled audio clarity and reliability with the Shure SLXD14 Digital Wireless System, featuring the WL185M Cardioid Lavalier Microphone. This comprehensive system is designed to meet the demands of both professional presentations and live performances, ensuring seamless operation and superior sound quality.

The SLXD4 Digital Wireless Receiver is engineered for those who require dependable performance in diverse environments, from lecture halls to concert stages. It offers transparent, 24-bit digital audio and robust RF performance, making it an ideal choice for any setting. The receiver's intuitive setup and rechargeability options enhance its versatility, while its ability to sync effortlessly with wireless transmitters ensures a hassle-free experience. With a range of interchangeable microphone options, the SLXD4 caters to various applications, providing the perfect audio solution for every occasion.

Complementing the receiver, the SLXD1 Bodypack Transmitter is designed for easy synchronization with the SLXD4, delivering consistent and high-quality audio transmission. Its cutting-edge digital wireless technology guarantees reliable performance, whether you're conducting a day-long seminar or performing at a nighttime event. The transmitter's compatibility with a variety of microphones ensures adaptability to any audio requirement.

The included WL185M Low-Profile Cardioid Lavalier Microphone is a standout component of this system. It is part of Shure's renowned series of professional lavalier microphones, known for their compact design and exceptional sound reproduction. The WL185M is 8 mm shorter than previous models, offering improved presence response and crystal-clear vocal reproduction. Available in black or white, with LEMO or TA4F connector options, this microphone provides flexible placement for speakers, presenters, and performers. Its innovative tie clip rotates in 90-degree intervals, allowing for precise positioning. Each microphone comes with a snap-fit windscreen, a single tie clip, and a zippered bag for convenient storage and transport.

Elevate your audio experience with the Shure SLXD14 Digital Wireless System, a perfect blend of advanced technology and user-friendly design, tailored to meet the needs of professionals across various industries.

Shure SLXD14 Digital Wireless System with WL185M Cardioid Lavalier Microphone Features

  • SLXD4 Digital Wireless Receiver
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Compatible with Shure Wireless Workbench control software
  • Remote monitoring and control via ShurePlus Channels app
  • Rugged metal construction
  • SLXD1 Bodypack Transmitter
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • TQG connectivity offers a variety of microphone options
  • Ergonomic, durable plastic construction
  • WL185M Low-Profile Cardioid Lavalier Microphone
  • Cardioid (WL185m) polar pattern
  • 8mm shorter than original WL18X series
  • Higher dynamic range with improved max SPL, self-noise, and general sound quality when compared to the original WL18X series
  • TA4F connector option
  • Ships with lavalier, tie clip, snap-fit foam windscreen, and zippered storage bag

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Effortless synchronization with SLXD1 Bodypack Transmitter for seamless audio transmission
  • Versatile microphone options with interchangeable connectors for flexible placement & use
  • Innovative tie clip design allows 90-degree rotation for precise microphone positioning
  • Complete with snap-fit windscreen, tie clip, & zippered bag for easy storage & transport

What's in the box:

  • SLXD4 Digital Wireless Receiver
  • SLXD1 Bodypack Transmitter
  • WL185M Low-Profile Cardioid Lavalier Microphone
  • Rackmounting Hardware
  • 2x 1/4 Wave Antennas
  • 2x AA Batteries
  • PS43US 15-VDC Power Supply
  • Single Tie-Clip
  • Snap-Fit Foam Windscreen
  • Zippered Storage Bag for Mic
  • Shure 2 Year Limited Warranty
