Shure SLX14/85-G5 Specifications

  • RF Carrier Frequency Range

    G5 / 494 - 515 MHz Frequency

  • Approx. Working Range

    300' (100m)

  • Overall Frequency Response

    45Hz - 15kHz, +/-2dB

  • Signal-to-Noise Ratio

    > 100dB A-weighted

  • No. Of Channels

    960 Selectable Frequencies

  • No. Of Simultaneous Systems

    12 (20 in regions where additional frequency bands are available)

  • Type of Receiver

    SLX4 Rack/Table Top Mountable UHF Diversity Receiver

  • Receiver: Type of Outputs

    XLR 3-pin male - 200 Ohms
    1/4" Phone - 1 kOhms

  • Receiver: Headphone Monitoring

    No

  • Receiver: Power Requirements

    12 - 18VDC @ 150mA, supplied by external power supply

  • Receiver: Display

    LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status

  • Receiver: Mounting Options

    Rack / Table Top Mount 1/2 Rack Space

  • Receiver: Antenna Type

    Dual 1/4 wave antennas

  • Type of Transmitter

    SLX1 UHF Bodypack

  • Transmitter: Type of Input Connector

    TA4 Input

  • Transmitter: Type of Microphone

    WL185 Lavalier Included with this Set

  • Transmitter: Polar Pattern

    Cardioid

  • Transmitter: Interchangeable Mic Heads

    Yes, Any of the Shure 'WL' Lavaliers, Headsets, or Instrument Cables (Optional) Can Be Used with this Transmitter

  • Transmitter: Battery Type/Approx. Life

    (2) AA size alkaline or rechargeable - approx 8 hours

  • Transmitter: Mute Switch

    Integrated On-Off / Mute Switch

  • Transmitter: Level Control

    0dB & 10dB Gain Adjust switch

  • Transmitter: Antenna Type

    Flexible 1/4 Wave Whip Antenna

  • Transmitter: Display

    LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status

  • Dimensions (H x W x D)

    Transmitter: 4.25" x 2.50" x 0.75" / 107.95 x 63.5 x 19.05 mm
    Receiver: 1.65" x 7.76" x 5.28" / 41.91 x 197.10 x 134.11 mm

  • Weight

    Transmitter: 3 oz / 85.05 g
    Receiver: 1 lb 13 oz / 822.14 g

  • UPC Code

    042406146111

About Shure SLX14/85-G5

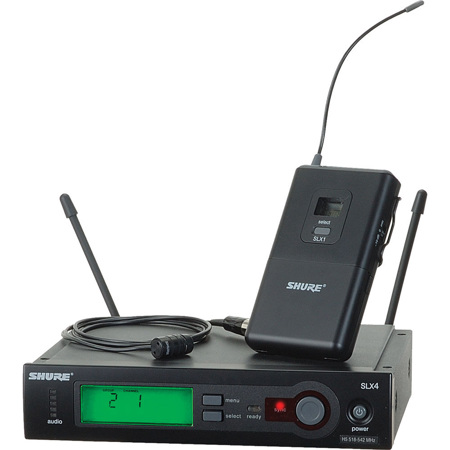

The Shure SLX14/85-G5 Wireless Microphone System provides the performance and reliability needed for use in venues, sound reinforcement, etc. The UHF system is available in up to 8 different bands, over a 24 MHz spectrum. This system includes the SLX4 receiver, SLX1 bodypack transmitter and WL185 lavalier microphone.

The SLX4 Receiver is rack or desktop mountable and features a diversity antenna design. The diversity design allows dual antennas to compete for the strongest possible reception. XLR microphone-level and 1/4" phone-line-level outputs are featured. A comprehensive LCD display provides frequency, group and channel information as well as transmitter battery status, audio level and more. The SLX1 Transmitter is a UHF bodypack transmitter. The transmitter is powered for up to 8 hours on 2 AA size batteries and features a 4-pin microphone input jack, which accommodates any Shure microphone featuring a TA4 connection. The SLX1 features an infrared sensor, which allows the transmitter to remotely sync frequency settings with the receiver. An adjustable mic/0 dB/-10 dB switch allows input from guitars, instruments and microphones.

The WL185 Lavalier Microphone features a cardioid pick-up pattern and its 50-17,000 Hz frequency response makes it suitable for a wide variety of applications.

Shure SLX14/85-G5 Features

  • Automatic Frequency Selection
  • Automatic Transmitter Setup
  • 960 Selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED
  • 5-segment audio meter
  • Multi-function, backlit LCD
  • Low battery indicator
  • Frequency and power lockout
  • Rugged metal chassis
  • Volume control on rear of unit
  • 1/2 rack design
  • Furnished rack hardware
  • Non-slip bumpers for use out of rack
  • XLR and 1/4" outputs

Key Features

  • Automatic Frequency Selection
  • Automatic Transmitter Setup
  • 960 Selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED

What's in the box:

  • Shure SLX4 Diversity Receiver
  • SLX1 Bodypack Transmitter
  • WL185 Lavalier Microphone
  • Zipper Bag
  • Short Rack Mount Bar
  • Long Rack Mount Bar
  • Link Bar
  • Antenna Extension Cables
  • Shure Warranty
