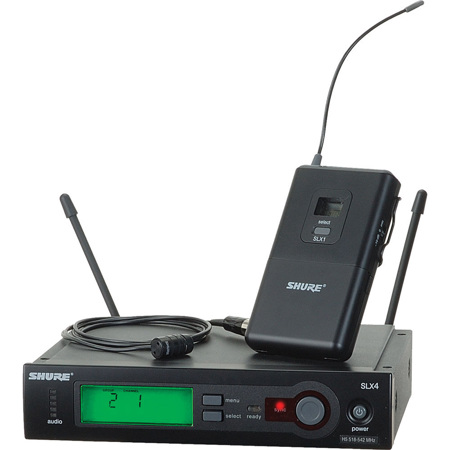

Shure SLX Series Wireless Microphone System H5: 518 - 542MHz
See all Shure items

Shure SLX Series Wireless Microphone System H5: 518 - 542MHz

SKU: SHSLX1485H5

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure SLX14/85-H5 Specifications

  • RF Carrier Frequency Range

    H5 /518 - 542 MHz

  • Approx. Working Range

    300' (100m)

  • Overall Frequency Response

    45Hz - 15kHz, +/-2dB

  • Signal-to-Noise Ratio

    > 100dB A-weighted

  • No. Of Channels

    960 Selectable Frequencies

  • No. Of Simultaneous Systems

    12 (20 in regions where additional frequency bands are available)

  • Receiver: Type of Outputs

    XLR 3-pin male - 200 Ohms
    1/4" Phone - 1 kOhms

  • Receiver: Headphone Monitoring

    No

  • Receiver: Power Requirements

    12 - 18VDC @ 150mA, supplied by external power supply

  • Receiver: Display

    LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status

  • Receiver: Mounting Options

    Rack / Table Top Mount 1/2 Rack Space

  • Receiver: Antenna Type

    Dual 1/4 wave antennas

  • Transmitter: Type of Input Connector

    TA4 Input

  • Transmitter: Type of Microphone

    WL185 Lavalier Included with this Set

  • Transmitter: Polar Pattern

    Cardioid

  • Transmitter: Interchangeable Mic Heads

    Yes, Any of the Shure 'WL' Lavaliers, Headsets, or Instrument Cables (Optional) Can Be Used with this Transmitter

  • Transmitter: Battery Type/Approx. Life

    (2) AA size alkaline or rechargeable - approx 8 hours

  • Transmitter: Mute Switch

    Integrated On-Off / Mute Switch

  • Transmitter: Level Control

    0dB & 10dB Gain Adjust switch

  • Transmitter: Antenna Type

    Flexible 1/4 Wave Whip Antenna

  • Transmitter: Display

    LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status

  • Dimensions (H x W x D)

    Transmitter: 4.25" x 2.50" x 0.75" / 107.95 x 63.5 x 19.05 mm
    Receiver: 1.65" x 7.76" x 5.28" / 41.91 x 197.10 x 134.11 mm

  • Weight

    Transmitter: 3 oz / 85.05 g
    Receiver: 1 lb 13 oz / 822.14 g

  • UPC Code

    042406122276

0 Accessories for Shure SLX Series Wireless Microphone System H5: 518 - 542MHz

About Shure SLX14/85-H5

Shure SLX14/85-H5 Features

  • Automatic Frequency Selection
  • Automatic Transmitter Setup
  • 960 Selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED
  • 5-segment audio meter
  • Multi-function, backlit LCD
  • Low battery indicator
  • Frequency and power lockout
  • Rugged metal chassis
  • Volume control on rear of unit
  • 1/2 rack design
  • Furnished rack hardware
  • Non-slip bumpers for use out of rack
  • XLR and 1/4" outputs

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Automatic Frequency Selection
  • Automatic Transmitter Setup
  • 960 Selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED

What's in the box:

  • Shure SLX4 Diversity Receiver
  • SLX1 Bodypack Transmitter
  • WL185 Lavalier Microphone
  • Zipper Bag
  • Short Rack Mount Bar
  • Long Rack Mount Bar
  • Link Bar
  • Antenna Extension Cables
  • Shure Warranty
