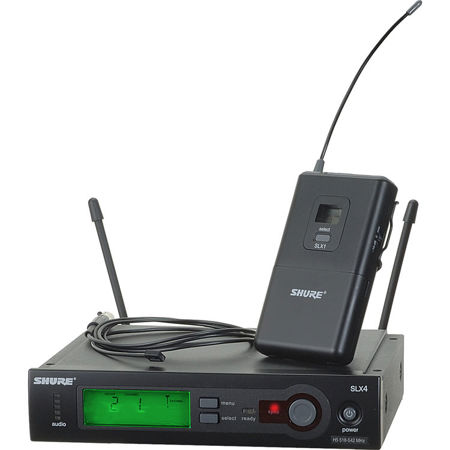

Shure SLX14/93 Lavalier Wireless System, Includes SLX1 Bodypack Transmitter, SLX4 Diversity Receiver and WL93 Lavalier Condenser Microphone, H19: 542.275 to 571.750 MHz Frequency Band

The SLX14/93 Lavalier Wireless System is part of the SLX wireless systems family. SLX Wireless Systems are powerful wireless tools that can be set up quickly and used confidently by installers and working bands. Features include auto frequency scan with transmitter setup, exceptional wireless clarity and Shure patented Audio Reference Companding.

SLX1 Bodypack Transmitter
The reliable SLX1 wireless bodypack transmitter is designed to hold up to the most adverse conditions. SLX1 can be used in a variety of SLX Wireless systems, including Lavalier, Headworn, Guitar/Bass, Instrument and Combo. Wireless Bodypack Transmitter. Designed for adverse conditions. Eight hours battery life, 300 ft. range.

• Automatic Transmitter Setup
• Backlit LCD with timeout feature
• Frequency and power lockout
• 3-segment battery fuel gauge
• 2 AA batteries (included) provide 8 hours continuous use

SLX Wireless Systems feature patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

SLX4 Diversity Receiver
The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. For use with SLX Wireless. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box. Model SLX4L is available with logic output for use with software echo cancellation and remote battery life monitoring. Logic-enabled transmitters include MX690 and MX890. Single-channel Diversity Receiver with optional logic output. Up to 42 compatible systems (multi-band). SLX Wireless Systems feature the patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

• Automatic Frequency Selection
• Automatic Transmitter Setup
• 960 Selectable frequencies across 24 MHz bandwidth
• Detachable 1/4 wave antennas
• Microprocessor-controlled diversity
• RF presence LED
• 5-segment audio meter
• Multi-function, backlit LCD
• Low battery indicator
• Frequency and power lockout
• Rugged metal chassis
• Volume control on rear of unit
• 1/2 rack design
• Furnished rack hardware
• Non-slip bumpers for use out of rack
• XLR and 1/4" outputs

WL93 Series Subminiature Lavalier Microphones
Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

• Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film and sound reinforcement
• Small, inconspicuous mounting hardware
• Full, clear sound comparable to larger microphones
• Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
• Controlled low-frequency roll off reduces low-frequency clothing and room noise
• Low distortion, wide dynamic range
• Uniform omnidirectional polar pattern
• Preamplifier assembly (SM93) can be pocketed, strapped to the body or clipped to belt or waistband
• Wide-range phantom powering (SM93) accepts all commonly used voltage

Note:

When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
