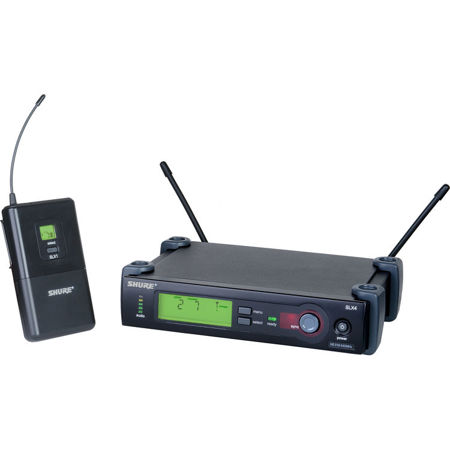

Shure SLX14 Wireless Instrument System, Includes SLX4 Receiver, SLX1 Bodypack Transmitter and WA302 Instrument Cable, H19: 542-572MHz Frequency Band

The SLX14 Instrument Wireless System is part of the SLX wireless systems family. SLX Wireless Systems are powerful wireless tools that can be set up quickly and used confidently by installers and working bands. Features include auto frequency scan with transmitter setup, exceptional wireless clarity and Shure patented Audio Reference Companding. Includes SLX1 bodypack transmitter, SLX4 receiver, guitar cable, rackmount kit, two 1/4 wave antennas, power supply, 2 AA batteries, protective bumpers with 8 screws, vinyl bag and user guide.

SLX1 Bodypack Transmitter
Wireless Bodypack Transmitter. Designed for adverse conditions. Eight hours battery life, 300' range. The reliable SLX1 wireless bodypack transmitter is designed to hold up to the most adverse conditions. SLX1 can be used in a variety of SLX Wireless systems, including Lavalier, Headworn, Guitar/Bass, Instrument and Combo. SLX Wireless Systems feature patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

• Automatic Transmitter Setup
• Backlit LCD with timeout feature
• Frequency and power lockout
• 3-segment battery fuel gauge
• 2 AA batteries (included) provide 8 hours continuous use

SLX4 Diversity Receiver
Single-channel Diversity Receiver with optional logic output. Up to 42 compatible systems (multi-band). The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. For use with SLX Wireless. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box. Model SLX4L is available with logic output for use with software echo cancellation and remote battery life monitoring. Logic-enabled transmitters include MX690 and MX890. SLX Wireless Systems feature the patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

• Automatic Frequency Selection
• Automatic Transmitter Setup
• 960 Selectable frequencies across 24 MHz bandwidth
• Detachable 1/4 wave antennas
• Microprocessor-controlled diversity
• RF presence LED
• 5-segment audio meter
• Multi-function, backlit LCD
• Low battery indicator
• Frequency and power lockout
• Rugged metal chassis
• Volume control on rear of unit
• 1/2 rack design
• Furnished rack hardware
• Non-slip bumpers for use out of rack
• XLR and 1/4" outputs
• Optional logic functionality for software echo cancellation and remote battery life monitoring (SLX4L only)

WA302 Instrument Cable
Instrument cable connects the T1, UT1, SC1, BLX1, PG1, PGX1, GLXD1, QLXD1, SLX1, LX1, ULX1, UC1, UR1, UR1M and U1 body-pack trasmitter to a guitar or other instrument. Features a 2.5 foot (0.75 m), length with 1/4-inch plug and 4-pin mini connector (TA4F) (supplied with instrument systems).

Note

When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
