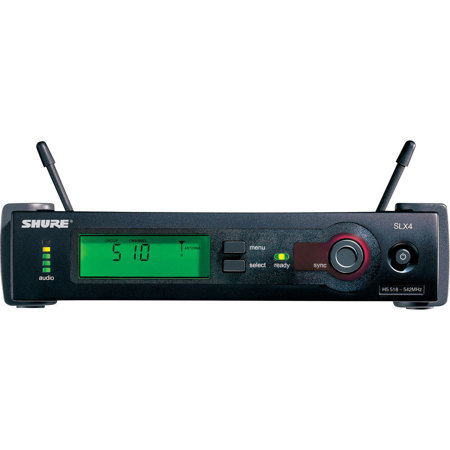

Shure SLX4-J3 Diversity Receiver with Antennas & Power Supply
See all Shure items

Shure SLX4-J3 Diversity Receiver with Antennas & Power Supply, J3/572-596 MHz

SKU: SHSLX4J3

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Shure SLX4-J3 Specifications

  • RF Carrier Frequency Range

    J3: 572-596 MHz

  • Approx. Working Range

    300' (100 m)

  • Overall Frequency Response

    45Hz - 15KHz +/-2dB

  • Signal-to-Noise Ratio

    > 100dB A-weighted

  • Audio Output Level

    XLR connector (into 600 Ohm load): -13 dBV
    1/4 inch connector (into 3000 Ohm load): -2 dBV (ref. +/- 38 kHz deviation with 1 kHz tone)

  • Output Impedance

    XLR connector: 200 Ohms
    1/4 inch connector: 1 kOhm

  • XLR output

    Impedance balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio
    Pin 3: No Audio

  • Sensitivity

    -105 dBm for 12 dB SINAD, typical

  • Image Rejection

    >70 dB, typical

  • Power Requirements

    12 to 18 Vdc at 150 mA, supplied by external power supply

  • Housing

    Galvanized steel

  • Dimensions (H x W x D)

    42mm x 197mm x 134mm (1.65 x 7.76 x 5.28 in.)

  • Weight

    28.78 oz (816g)

  • UPC Code

    042406121606

19 Accessories for Shure SLX4-J3 Diversity Receiver with Antennas & Power Supply, J3/572-596 MHz

  • All Accessories (19)
  • Antennas (5)
  • Cables & Adapters (13)
  • XLR Cables (1)
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 25'
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 25'
$13.95
Recommended
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 6'
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 6'
$7.95
Recommended
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 3'
H&A Elite Pro 1/4" TRS M to XLR F Professional Interconnect Cable, 3'
$6.95
Recommended
H&A TRS 1/4" Male to XLR Male Interconnect Cable With Rean Connectors - 3'
H&A TRS 1/4" Male to XLR Male Interconnect Cable With Rean Connectors - 3'
$6.95
Recommended
Shure UA8 1/2 Wave Omnidirectional Receiver Antenna 572-596 MHz
Shure UA8 1/2 Wave Omnidirectional Receiver Antenna 572-596 MHz
$32.00
Shure UA864US Wall-Mounted Wideband Antenna 470-698 MHz
Shure UA864US Wall-Mounted Wideband Antenna 470-698 MHz
$532.00
Shure UA874 Active Directional Antenna
Shure UA874 Active Directional Antenna
$444.00
Shure UA834WB VHF In-Line Antenna Amplifier, 470-902MHz Frequency Range
Shure UA834WB VHF In-Line Antenna Amplifier, 470-902MHz Frequency Range
$176.00
Shure UA860SWB Passive Omnidirectional Antenna
Shure UA860SWB Passive Omnidirectional Antenna
$338.00
Kramer Electronics 3' XLR (M) to XLR (F) Quad Style Cable
Kramer Electronics 3' XLR (M) to XLR (F) Quad Style Cable
$8.80
Kramer Electronics 1' XLR (M) to XLR (F) Quad Style Cable
Kramer Electronics 1' XLR (M) to XLR (F) Quad Style Cable
$7.20
Kramer Electronics 6' XLR (M) to XLR (F) Quad Style Cable
Kramer Electronics 6' XLR (M) to XLR (F) Quad Style Cable
$11.20

About Shure SLX4-J3

Shure SLX4-J3 Features

  • Automatic frequency selection
  • Automatic transmitter setup
  • 960 selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED
  • 5-segment audio meter
  • Multi-function, backlit LCD
  • Low battery indicator
  • Frequency and power lockout
  • Rugged metal chassis
  • Volume control on rear of unit
  • 1/2 rack design
  • Furnished rack hardware
  • Non-slip bumpers for use out of rack
  • XLR and 1/4" outputs

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Automatic frequency selection
  • Automatic transmitter setup
  • 960 selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED

What's in the box:

  • Shure SLX4 Diversity Receiver
  • PS21US Power Supply
  • Rack Ears
  • 2 x Antenna
  • Shure Warranty
