21% Off

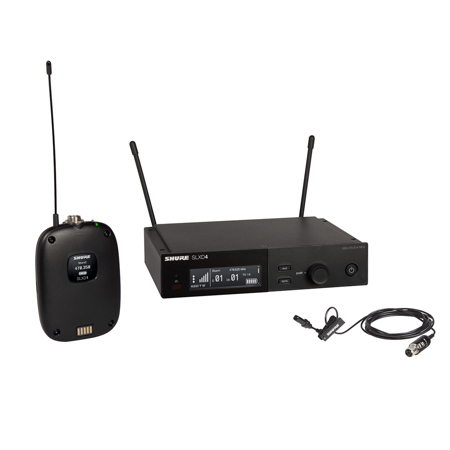

Shure SLXD14/UL4B Digital Wireless System w/UL4B UniPlex Cardioid Lavalier Mic J52: 558-616MHz

SKU: SHSLXD14UJ52 MFR: SLXD14/UL4B-J52
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • The UL4B lavalier microphone ensures speech clarity, ideal for interviews and broadcast applications.
  • Enjoy up to 328' of reliable wireless range, giving you freedom to move during performances.
  • With up to 8 hours of battery life, this wireless system supports all-day use for any event or recording.
  • The digital wireless receiver offers simple setup and operation, making it user-friendly for all skill levels.
  • Rugged and reliable, this Shure wireless system delivers superior sound quality for professional use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD14/UL4B Digital Wireless System w/UL4B UniPlex Cardioid Lavalier Mic Specifications

System
  • Available RF Frequency Band

    G58: 470-514MHz, H55: 514-558MHz, J52: 558-616MHz

  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    G58: 470-514MHz, H55: 514-558MHz: 1760
    J52: 558-616MHz: 1840

  • Included Transmitters

    1x Bodypack with Microphone

  • Diversity

    True Digital Diversity

  • RF Bandwidth

    G58: 470-514MHz, H55: 514-558MHz: 44 MHz
    J52: 558-616MHz: 46 MHz

  • Frequency Step Size

    25 kHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    328' (100m)

  • Max Transmitters per Band

    32

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: ShurePlus Channels
    Functionality: Remote Control

  • OS Compatibility

    Windows 10 or Later
    macOS 10.14 or Later

  • Sample Rate/Resolution

    24-Bit

  • Latency

    3.2 ms

  • Dynamic Range

    120 dBA (Typical)

  • Encryption

    No

  • Modulation

    Wideband FM

SLXD4 Receiver

Jump to...
  • Receiver Type

    Tabletop / Rackmount

  • Mounting Options

    Rackmount, Tabletop (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x 1/4 Wave External, BNC (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Mic/Line Output
    1x 1/4" TRS Female Balanced Output

  • Gain Range

    0 to +21 dB (3 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    -18 to +42 dB (Balanced, Unbalanced)

  • Phantom Power Protection

    On 1/4", XLR Outputs

  • Frequency Response

    20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)

  • Network I/O

    1x RJ45 (10/100 Mb/s)

  • Network Protocols

    DHCP, Manual IP

  • USB/Lightning Connectivity

    No

  • USB Class-Compliant

    No

  • Impedance

    1/4" Output:
    1.3 Kilohms (Balanced)
    670 Ohms (Unbalanced)

    XLR Output:
    400 Ohms (Balanced)
    150 Ohms (Balanced)

  • Adjacent Channel Isolation

    >70 dB

  • Spurious

    Rejection: >75 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    15 VDC at 600 mA, Center-Positive (Included)

  • DC Input Power

    15 VDC at 600mA

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Display & Indicators

    LCD (AF Level, Channel, Frequency, Group, RF Level, Transmitter Battery Status)

  • Housing

    Steel

  • Operating Temperature

    0 to 122 Degree F (-17 to 50 Degree C)

  • Storage Temperature

    -20 to 165 Degree F (-28 to 73 Degree C)

  • Dimensions

    7.8 x 1.7 x 6" (197 x 42 x 152mm)

  • Weight

    1.8 lbs (816g) (Without Antenna)

SLXD1 Transmitter

Jump to...
  • Transmitter Type

    Bodypack with Microphone

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

  • Pad

    No

  • Muting

    No

  • Auto-Level Control

    No

  • Gain Range

    0 +21 dB

  • Signal Processing

    No

  • Sync Method

    IR

  • Antenna

    1/4 Wave External, Fixed

  • USB/Lightning I/O

    No

  • Display & Indicators

    LCD (Battery Status, Channel, Group)

  • Housing

    ABS, Plastic

  • Operating Temperature

    0 to 122 Degree F (-17 to 50 Degree C)

  • Storage Temperature

    -20 to 165 Degree F (-28 to 73 Degree C)

  • Power Requirements

    Battery

  • Battery

    2x AA (Included)
    1x Shure SB903 (Not Included)

  • Battery Charging Time

    1.25 to 5.5 Hours

  • Approx. Battery Life

    8 Hours (Lithium Shure SB903)
    8 Hours (Alkaline)

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2.7 x 3.9 x 1" (68 x 98 x 25.5mm)

  • Weight

    3.1 oz (89g)

UL4 Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Color

    Black

  • Sound Field

    Mono

  • Capsule

    MEMS

  • Polar Pattern

    Cardioid

  • Frequency Range

    40 Hz to 20 kHz

  • SNR

    62 dB A-Weighted

  • Equivalent Noise Level

    32 dB A-Weighted

  • Maximum SPL

    130 dB SPL

  • Sensitivity

    -42.5 dBV/Pa

  • CMRR

    No

  • Dynamic Range

    98 dB

  • Output Connector

    1x TA4F/Mini-XLR 4-Pin Female Unbalanced

  • Cable Length

    5.48' (1.67m)

  • Operating Voltage

    3.5 to 5 V

  • Operating Current Consumption

    530 microA

  • Length

    0.7" (17mm)

  • Diameter

    0.2" (5mm)

  • Weight

    0.4 oz (12.5g)

  • UPC Code

    042406773539

1 Accessories for Shure SLXD14/UL4B Digital Wireless System with UL4B UniPlex Cardioid Lavalier Microphone

  • All Accessories (1)
  • accessories (1)

About Shure SLXD14/UL4B Digital Wireless System w/UL4B UniPlex Cardioid Lavalier Mic

Featuring the UL4B UniPlex Cardioid Lavalier Microphone and the SLXD1 transmitter, the SLXD14/UL4B provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

The SLXD14/UL4B Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and UL4B UniPlex Cardioid Lavalier Microphone with antenna and rackmount accessories and 2 AA batteries.

- SLXD4 Digital Wireless Receiver -
The SLXD4 Receiver is the choice for confident presentation and performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.


- SLXD1 Bodypack Transmitter -
The SLXD1 easily syncs with a wireless receiver for confident presentation and performance - from lecture halls to live entertainment.

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. A variety of microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.


- UL4 UniPlex Cardioid Lavalier Microphone -
When direction matters. UniPlex delivers superb directional capture of your voice for presentations, conferences, education, broadcast and more. A lavalier microphone with a cardioid polar pattern, UniPlex is the perfect solution for speaking situations when rejection of sound from stage noise, an audience, or close-proximity presenters is called for.

Tailored For Speech
Ideal for corporate presentations and guest speakers in conference rooms, lecture halls, theaters and arenas, UniPlex is a directional lapel microphone that delivers excellent isolated audio capture. Tailored for speech and presentations, UniPlex is offered in four colors and three connector types, and ships with a protective case, snap-fit windscreen and a tie clip.

Why It's Better

Directional Capture
The perfect lavalier for speaking situations when rejection of sound from audience, close-proximity presenters, or stage noise is a concern.

Durable Shure Plex Cable
The same 1.6 mm cable featured in the award-winning TwinPlex line. Dual-redundant ground doubles as a secondary shield for unprecedented flex life.

Exceptional Sound - Tailored for Speech
Clear, clean, directional capture tailored specifically for presentations, education, conferences, and broadcast.

Quality That's In The Details
5 mm cardioid lavalier microphone for professional presentations, conferencing, education, and broadcast.

Advanced 1.6 mm Shure Plex cable for unprecedented longevity.

Shure SLXD14/UL4B Digital Wireless System w/UL4B UniPlex Cardioid Lavalier Mic Features

  • SLXD4 Digital Wireless Receiver
  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Compatible with Shure Wireless Workbench control software
  • Remote monitoring and control via ShurePlus Channels app
  • Rugged metal construction
  • SLXD1 Bodypack Transmitter
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
  • TQG connectivity offers a variety of microphone options
  • Ergonomic, durable plastic construction
  • UL4B UniPlex Cardioid Lavalier Microphone
  • Directional Capture
  • Durable Shure Plex Cable
  • Exceptional Sound - Tailored for Speech

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • The UL4B lavalier microphone ensures speech clarity, ideal for interviews and broadcast applications.
  • Enjoy up to 328' of reliable wireless range, giving you freedom to move during performances.
  • With up to 8 hours of battery life, this wireless system supports all-day use for any event or recording.
  • The digital wireless receiver offers simple setup and operation, making it user-friendly for all skill levels.
  • Rugged and reliable, this Shure wireless system delivers superior sound quality for professional use.

What's in the box:

  • SLXD4 Digital Wireless Receiver
  • SLXD1 Bodypack Transmitter
  • UL4 UniPlex Cardioid Lavalier Microphone (Black)
  • 2x AA Batteries
  • 2x 1/4 Wave Antennas
  • 2x Bulkhead Adapters
  • 2x 22" BNC Cables
  • Power Supply
  • Black Vinyl Zippered Bag
  • Rack Mount Bracket (Short)
  • Rack Mount Bracket (Long)
  • Linking Plate
  • 4x Adhesive Foot
  • Quick Start Guide
  • Shure 2 Year Limited Warranty
