Shure SLXD15 Portable Digital Wireless Bodypack System with SLXD3 Plug-On Transmitter, J52: 558-616MHz

SKU: SHSLXD15J52K MFR: SLXD15-J52-K
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure SLXD15 Portable Digital Wireless System J52: 558-616MHz
    Shure SLXD15 Portable Digital Wireless System J52: 558-616MHz
  • +
  • Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector J52: 558-616MHz
    Shure SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector J52: 558-616MHz
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture pristine audio with this Shure wireless microphone system, ideal for videography.
  • Experience reliable digital wireless performance with the SLXD15 system's robust build.
  • Achieve professional sound using the SLXD3 plug-on transmitter for XLR equipped mics.
  • Enjoy extended battery life with AA batteries, ensuring your wireless mic is always ready.
  • The SLXD5 receiver offers balanced outputs, perfect for cameras & audio recorders.
  • Get crystal-clear sound quality with Shure's digital wireless technology at an affordable price.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD15 + SLXD3 Specifications

General

General

Jump to...
  • RF Frequency Band

    J52: 558-616MHz

SLXD1 Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent Input Noise

    -118 dBV (EIN)

SLXD1 Transmitter: RF Input

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1 Transmitter: Power

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD1 Transmitter: Physical

Jump to...
  • Housing

    PC/ABS

  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.5mm)

  • Weight

    3.1 oz (89g)

SLXD5 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5 Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    1/8" (3.5 mm), x2

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground

    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5 Receiver: Power

Jump to...
  • Power Requirements

    Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

SLXD5 Receiver: Physical

Jump to...
  • Housing

    Aluminum

  • Dimensions (H x W x D)

    4.21 x 2.68 x 1" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    6

  • UPC Codes

    192223243354, 042406759113, 042406764735

33 Accessories for Shure SLXD15 Portable Digital Wireless Bodypack System with SLXD3 Plug-On Transmitter, J52: 558-616MHz

  • All Accessories (33)
  • Lavalier Microphone (4)
  • Bags & Cases (1)
  • Straps & Slings (1)
  • Batteries & Power Supply (13)
  • Cables & Adapters (5)
  • Headphones (3)
  • Headsets (2)
  • Microphones (2)
  • Cleaning Accessories (1)
  • Transmitter (1)

About Shure SLXD15 + SLXD3

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

Take your audio performance to the next level with the SLXD15 Portable Digital Wireless Bodypack System with SLXD3 Plug-On Transmitter, operating in the J52: 558-616MHz frequency range. This advanced system combines the SLXD1 Digital Wireless Bodypack Transmitter and the SLXD5 Single-Channel Portable Digital Wireless Receiver, both renowned for their industry-leading digital wireless technology and design.

The SLXD1 Transmitter delivers transparent, 24-bit digital audio and robust RF performance, ensuring crystal-clear sound quality. With an extended frequency range of 20 Hz to 20 kHz, it captures every nuance of your audio. Its digital predictive switching diversity and 44 MHz tuning bandwidth offer reliable, interference-free operation. The transmitter can easily sync with a wireless receiver and offers TQG connectivity, making it compatible with a variety of microphone options. It's designed for durability, with an ergonomic plastic construction that can withstand the rigors of day-long conferences or nighttime performances.

The SLXD5 Receiver, on the other hand, is a powerful, portable device that can be mounted on-camera or used in an audio bag. It offers the same transparent 24-bit digital audio and extended frequency range as the transmitter, ensuring consistent sound quality. The receiver features dual 1/8" outputs, including a headphone monitor out and switchable line/mic output, providing flexibility in audio monitoring and recording. Its Multi-Mic Mode allows you to scan, sync, and monitor multiple clean frequencies from a single receiver. The bright OLED display screen provides key system function readouts and remaining battery life, ensuring you're always in control.

Both the transmitter and receiver offer up to 10 compatible systems per 6MHz TV band and 12 systems per 8 MHz band, providing ample options for multi-system setups. The SLXD15 system also includes a pair of AA alkaline batteries, a non-conductive cold shoe mount adapter, and a zippered carrying pouch for convenient transport and storage.

Experience the difference in audio quality and performance with the SLXD15 Portable Digital Wireless Bodypack System with SLXD3 Plug-On Transmitter. It's the perfect solution for a wide range of applications, from professional broadcasting to live performances.

Shure SLXD15 + SLXD3 Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this Shure wireless microphone system, ideal for videography.
  • Experience reliable digital wireless performance with the SLXD15 system's robust build.
  • Achieve professional sound using the SLXD3 plug-on transmitter for XLR equipped mics.
  • Enjoy extended battery life with AA batteries, ensuring your wireless mic is always ready.
  • The SLXD5 receiver offers balanced outputs, perfect for cameras & audio recorders.
  • Get crystal-clear sound quality with Shure's digital wireless technology at an affordable price.

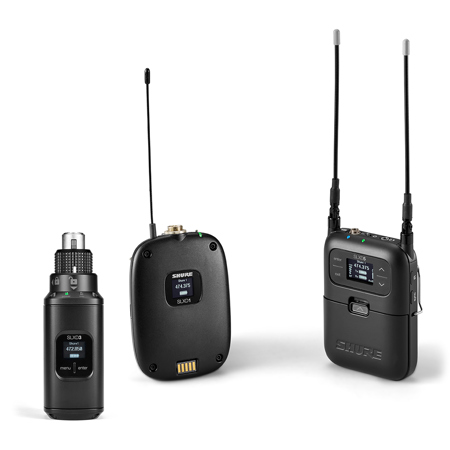

What's in the box:

  • SLXD1 Digital Wireless Bodypack Transmitter
  • SLXD5 Single-Channel Portable Digital Wireless Receiver
  • SLXD3 Digital Wireless Plug-On Transmitter
  • 4x AA Alkaline Batteries
  • Cold Shoe Mount Adapter
  • Zippered Carrying Pouch
  • Shure 2 Year Limited Warranty
