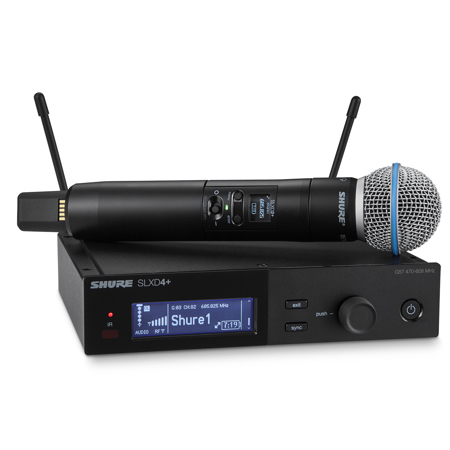

Shure SLXD24+/B58 Single-Channel Digital Wireless Handheld System with B58 Microphone Capsule, G57: 470-608MHz

SKU: SHSLXD24B58 MFR: SLXD24+/B58-G57
Earn VIP Reward Points

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Delivering transparent, 24-bit digital audio and rock-solid RF performance
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD24+/B58 Specifications

System: RF

System: RF

Jump to...
  • Working Range

    328' (100m)

  • RF Tuning Step Size

    JB Band: 125 kHz
    All Other Bands: 25 kHz

  • Image Rejection

    >85 dB

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    2.8 ms

  • High-Pass/Low Cut Filter

    160 Hz, -12 dB/octave

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    118 dB @1% THD (A-weighted, 20 Hz-20 kHz, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 1/4" (6.35mm) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

System: General

Jump to...
  • Country of Origin

    China

SLXD4+ Receiver: General

Jump to...
  • Color

    Black

  • Material

    Galvanized Steel

SLXD4+ Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4+ Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.1 k Ohm (550 Ohm Unbalanced)
    XLR (line): 500 Ohm (250 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +18 dBV differentially (+12 dBV single)
    XLR (LINE setting): +18 dBV
    XLR (MIC setting): -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4+ Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4+ Receiver: Physical

Jump to...
  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    2 lbs (900g) (without antennas)

SLXD2+ Transmitter: General

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Transmitter Type

    Handheld

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Dynamic range

    118 dB

  • Audio conversion

    24 bit

  • Configuration

    Unbalanced

SLXD2+ Transmitter: Audio Input

Jump to...
  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Antenna Type

    Integrated Single-Band Helical

SLXD2+ Transmitter: RF Output

Jump to...
  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD2+ Transmitter: Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

SLXD2+ Transmitter: Physical

Jump to...
  • Dimensions (Dia. X L)

    1.46 x 6.93" (37.1 x 176mm)

  • Weight

    5.08 oz (144g)

Beta 58A Microphone Capsule

Jump to...
  • Type

    Dynamic (moving coil)

  • Applications

    Speech, and Lead & Backup Vocals

  • Frequency Response

    50 to 16,000 Hz

  • Polar Pattern

    Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency

  • Impedance

    Rated impedance is 150 ohms (290 ohms actual) for connection to microphone inputs rated low Z

  • Output Level

    At 1,000 Hz: Open Circuit Voltage -51 dBV/Pa (2.8 mV) (1 Pa = 94 dB SPL)

  • Connector

    XLR-3 Type

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin
    Adjustable Stand Adapter Slip in, unbreakable adjustable through 180 Degree, with standard 5/8-27 thread, Black finish

  • Weight

    9.8 oz (278g)

  • UPC Code

    042406897099

About Shure SLXD24+/B58

The SLXD24+/B58 Digital Wireless Handheld System unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering transparent, 24-bit digital audio and rock-solid RF performance, wide-tuning SLX-D+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.


- SLXD4+ Single-Channel Digital Wireless Rackmount Receiver -
The SLXD4+ is a single channel half-rack receiver for use with SLX-D+ transmitters. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With the crystal-clear audio and rock-steady RF that SLX-D+ provides, the SLXD4+ features a wide 138 MHz tuning range that stays in sync with SLX-D+ transmitters, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates, Link 2nd transmitter to a receiver channel


- SLXD2+/B58 Wireless Handheld Transmitter -
The SLXD2+/B58 Wireless Handheld Transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With rugged metal construction, wide-tuning SLX-D+ handheld transmitters stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates

Beta 58A Supercardioid Dynamic Vocal Microphone
• Smooth, extended frequency response for outstanding sound for professional live vocal use
• Consistent supercardioid pattern provides the best gain-before-feedback among dynamic microphones
• Pneumatic shock mount reduces handling noise
• Frequency response: 50 to 16,000 Hz
• Neodymium magnet for high signal to noise output
• Hardened steel mesh grille that resists wear and abuse
• Minimally effected by varying load impedance
• Legendary Shure quality and reliability

Shure SLXD24+/B58 Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Delivering transparent, 24-bit digital audio and rock-solid RF performance

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Delivering transparent, 24-bit digital audio and rock-solid RF performance

What's in the box:

  • 2x AA Batteries
  • Antenna
  • Rack Mounting Hardware
  • Shure 2 Year Limited Warranty
