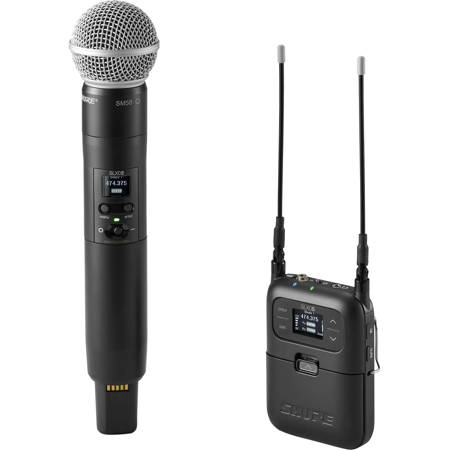

Shure SLXD25/SM58 Portable Digital Wireless Handheld Microphone System G58: 470-514MHz

SKU: SHSLXD25SG58 MFR: SLXD25/SM58-G58
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Shure wireless handheld microphone system.
  • Achieve crystal-clear audio for presentations, performances, and recording sessions.
  • Enjoy freedom with a reliable wireless range up to 328 feet for dynamic movement.
  • Benefit from the handheld microphone's durable design, built to withstand daily use.
  • Operate confidently with up to 8 hours of battery life for uninterrupted performance.
  • Set up easily with auto-scan; this wireless microphone system is ready to use out-of-the-box.
See More Product Details

Product Options

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD25/SM58 Portable Digital Wireless Handheld Microphone System Specifications

General

General

Jump to...
  • Available RF Frequency Band

    G58: 470 to 514 MHz, H55: 514 to 558 MHz, J52: 558 to 602 MHz and 614 to 616 MHz

SLXD2/SM58: General

Jump to...
  • RF Bandwidth

    44 MHz

  • Frequency Step Size

    25 kHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    328' (100m)

  • Max Transmitters per Band

    32

  • Sample Rate/Resolution

    24-Bit

  • Latency

    3.2 ms

  • Encryption

    No

SLXD2/SM58: Transmitter

Jump to...
  • Transmitter Type

    Handheld

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    No

  • Pad

    No

  • Muting

    No

  • Audio Input Level

    8.2 dBV

  • Auto-Level Control

    No

  • Gain Range

    0 +21 dB

  • Signal Processing

    No

  • Frequency Response

    20 Hz to 20 kHz (Dependent on Mic)

  • Sync Method

    IR

  • Antenna

    Internal Single-Band Helical

  • Power Requirements

    Battery

  • Battery

    2xAA (Included)
    1 xShure SB 903 (Not Included)

  • Battery Charging Time

    1.25 to 5.5 Hours

  • Approx. Battery Life

    8 Hours (Lithium Shure SB903)
    8 Hours (Alkaline)

  • USB/Lightning Connectivity

    No

  • Display & Indicators

    LCD (Battery Status, Channel, Group, Power)

  • Housing

    Aluminum

  • Operating Temperature

    0 to 122 Degree F (-17 to 50 Degree C)

  • Storage Temperature

    -20 to 165 Degree F (-28 to 73 Degree C)

  • Dimensions

    1.5 x 6.9" (37.1 x 176mm)

  • Weight

    5.2oz (147g)

SLXD2/SM58: Microphone

Jump to...
  • Microphone Type

    Handheld Capsule

  • Sound Field

    Mono

  • Capsule

    Dynamic

  • Polar Pattern

    Cardioid

  • Frequency Range

    50 Hz to 15 kHz

  • Sensitivity

    -54.5 dBV/Pa

  • CMRR

    No

  • Diameter

    1.97" (50mm)

SLXD5 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5 Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    1/8" (3.5 mm), x2

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground

    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5 Receiver: Power

Jump to...
  • Power Requirements

    Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

SLXD5 Receiver: Physical

Jump to...
  • Housing

    Aluminum

  • Dimensions (H x W x D)

    4.21 x 2.68 x 1" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

  • UPC Code

    042406761840

About Shure SLXD25/SM58 Portable Digital Wireless Handheld Microphone System

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

- SLXD2 Wireless Handheld Transmitter with SM58 Microphone Capsule -
SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock-solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to night time performances.

Features:
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 120 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery (sold separately)
• Interchangeable microphone capsules
• Rugged metal construction


- SLXD5 Single-Channel Portable Digital Wireless Receiver -
The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode.

A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non-conductive cold shoe mount adapter and a zippered carrying pouch.

Features:
• Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Bright OLED display screen for key system function readouts and remaining battery life
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Rugged metal construction

Shure SLXD25/SM58 Portable Digital Wireless Handheld Microphone System Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120dB dynamic range for SLXD2/SM58 and 118 dB dynamic range for SLXD5 Wireless Receiver
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Rugged metal construction

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Shure wireless handheld microphone system.
  • Achieve crystal-clear audio for presentations, performances, and recording sessions.
  • Enjoy freedom with a reliable wireless range up to 328 feet for dynamic movement.
  • Benefit from the handheld microphone's durable design, built to withstand daily use.
  • Operate confidently with up to 8 hours of battery life for uninterrupted performance.
  • Set up easily with auto-scan; this wireless microphone system is ready to use out-of-the-box.

What's in the box:

  • SLXD2 Wireless Handheld Transmitter with SM58 Microphone Capsule
  • SLXD5 Single-Channel Portable Digital Wireless Receiver
  • 4x AA Alkaline Batteries
  • Cold Shoe Mount Adapter
  • Zippered Carrying Pouch
  • Shure 2 Year Limited Warranty
