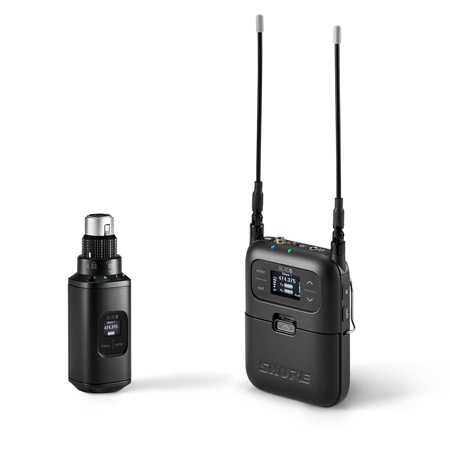

Shure SLXD35 Portable Digital Wireless Plug-On Transmitter System G58: 470-514MHz

SKU: SHSLXD35G58 MFR: SLXD35-G58
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this digital wireless microphone system, perfect for interviews.
  • Achieve superior sound quality using the SLXD35's plug-on transmitter with an XLR connector.
  • Enjoy reliable connectivity across multiple RF frequency bands for uninterrupted recording sessions.
  • Benefit from the wireless microphone's durable build, designed to withstand rigorous field use.
  • Experience ease of use with intuitive controls and a portable receiver for on-the-go recording.
  • Extend your recording range with a powerful transmitter, ideal for dynamic film and broadcast.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure SLXD35 Portable Digital Wireless Plug-On Transmitter System Specifications

General

General

Jump to...
  • Available RF Frequency Band

    G58: 470 to 514 MHz, H55: 514 to 558 MHz, J52: 558 to 602 MHz and 614 to 616 MHz

SLXD3 Transmitter: Audio Input

Jump to...
  • Configuration

    XLR

  • Maximum Input Level 1 kHz @ 1% THD

    Pad -12 dB: 20.5 dBV
    0 dB: 8.5 dBV
    Boost +12 dB: -3.5 dBV

  • Phantom Power

    +48 V (7 mA maximum)
    +12 V (15 mA maximum)

SLXD3 Transmitter: RF Output

Jump to...
  • Antenna Type

    Dipole

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW/30 mW

  • Specific Absorption Rate (SAR)

    <0.17 W/kg

SLXD3 Transmitter: Power

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD3 Transmitter: Physical

Jump to...
  • Housing

    Aluminum, Zinc Alloy, PC/ABS

  • Dimensions (Dia. x L)

    4.9 x 1.6 x 1.6" (126 x 41 x 41mm)

  • Weight

    7.0 oz (200g)

SLXD5 Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB Typical

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5 Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    1/8" (3.5 mm), x2

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground

    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5 Receiver: Power

Jump to...
  • Power Requirements

    Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

SLXD5 Receiver: Physical

Jump to...
  • Housing

    Aluminum

  • Dimensions (H x W x D)

    4.21 x 2.68 x 1" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

  • UPC Code

    042406763325

About Shure SLXD35 Portable Digital Wireless Plug-On Transmitter System

SLX-D Portable Digital Wireless

Whether you’re a professional videographer, a field production specialist or a location sound mixer, stress-free audio capture is your calling card. Wherever the work takes you, SLX-D Portable lets you bring the rock-solid RF performance and flawless digital audio of SLX-D Digital Wireless with you. Locations can be unpredictable. Wireless audio shouldn’t be.

Get the shot. Capture the sound. Every time.

Hard-Working Wireless, When And Where You Need It

From weddings to live streams, great video is nothing without great audio.

SHSLXD15

Superior Audio Experiences

Bring the great audio experiences of the SLX-D Digital Wireless platform to your productions.

SHSLXD15

High-Performing Wireless Audio

Outstanding spectral efficiency and rock-solid RF performance deliver flawless wireless audio, time after time. Locations are Unpredictable. Wireless Audio Shouldn’t Be.

SHSLXD15

Fast & Intuitive Setup: Scan, Sync, and Go

SLX-D Portables have innovative set-up features that get you going at a moment’s notice. Flexible and user-friendly, SLX-D Portables capture the sound, every time.

SHSLXD15

Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync

- SLXD3 Digital Wireless Plug-On Transmitter -
SLXD3 Plug-On Digital Wireless Transmitter converts any XLR source, including dynamic and condenser microphones, for use as an SLX-D wireless transmitter. Featuring a patented locking ring for a secure, wobble-free connection, the SLXD3 sends 24-bit digital audio from any XLR source to an SLXD4 or SLXD5 Digital Wireless receiver via rock-solid RF connection. Use IR Sync to pair transmitters easily and quickly with your choice of SLX-D wireless receiver.

A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD3 plug-on transmitter, a pair of AA alkaline batteries, zippered carrying pouch and a leather protective sleeve with an integrated belt clip.

Features:
• Convert any XLR source for use within SLX-D wireless systems
• Provides +12-48 VDC phantom power for use with condenser microphones
• Patented locking mechanism for secure, wobble-free connection
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• Switchable 1/10/30 mW power levels (region- and band-dependent)
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
• Rugged metal construction


- Shure SLXD5 Single-Channel Portable Digital Wireless Receiver -
The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode.

A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non-conductive cold shoe mount adapter and a zippered carrying pouch.

Features:
• Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Bright OLED display screen for key system function readouts and remaining battery life
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Rugged metal construction

Shure SLXD35 Portable Digital Wireless Plug-On Transmitter System Features

  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Rugged metal construction

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this digital wireless microphone system, perfect for interviews.
  • Achieve superior sound quality using the SLXD35's plug-on transmitter with an XLR connector.
  • Enjoy reliable connectivity across multiple RF frequency bands for uninterrupted recording sessions.
  • Benefit from the wireless microphone's durable build, designed to withstand rigorous field use.
  • Experience ease of use with intuitive controls and a portable receiver for on-the-go recording.
  • Extend your recording range with a powerful transmitter, ideal for dynamic film and broadcast.

What's in the box:

  • SLXD3 Digital Wireless Plug-On Transmitter with XLR Connector
  • SLXD5 Single-Channel Portable Digital Wireless Receiver
  • 4x AA Batteries
  • Zippered Carrying Pouches
  • Leather Protective Sleeve with Integrated Belt Clip
  • Cold Shoe Mount Adapter
  • Shure 2 Year Limited Warranty
