New Arrival

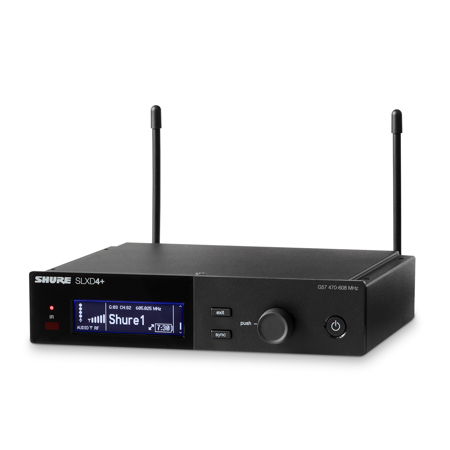

Shure SLXD4+ Single-Channel Digital Wireless Rackmount Receiver, G57: 470-608MHz, Black

SKU: SHSLXD4G MFR: SLXD4+=-G57
Earn VIP Reward Points

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Single channel half-rack design with rugged metal construction
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD4+ Specifications

General

General

Jump to...
  • Color

    Black

  • Material

    Galvanized Steel

  • Number of Channels

    Single

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Audio conversion

    24 bit

  • Encryption

    AES-256

  • Length

    Cable: 22" (55.8cm)

  • Power Requirements

    15 VDC @ 360 mA

  • Country of Origin

    China

RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Connector Type

    BNC

  • Impedance

    50 Ohm

Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.1 k Ohm (550 Ohm Unbalanced)
    XLR (line): 500 Ohm (250 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +18 dBV differentially (+12 dBV single)
    XLR (LINE setting): +18 dBV
    XLR (MIC setting): -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

Physical

Jump to...
  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    2 lbs (900g) (without antennas)

  • UPC Code

    042406906418

About Shure SLXD4+

The SLXD4+ is a single channel half-rack receiver for use with SLX-D+ transmitters. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With the crystal-clear audio and rock-steady RF that SLX-D+ provides, the SLXD4+ features a wide 138 MHz tuning range that stays in sync with SLX-D+ transmitters, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Includes SLXD4+ Single Channel Receiver, two 1/4" antennas, two bulkhead adapters, two 22" BNC cables, rack mount kit and power supply.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates, Link 2nd transmitter to a receiver channel

Shure SLXD4+ Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Single channel half-rack design with rugged metal construction

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Single channel half-rack design with rugged metal construction

What's in the box:

  • Shure SLXD4+ Single-Channel Digital Wireless Rackmount Receiver (Black)
  • 2x 1/4 Wave Antennas
  • 2x Bulkhead Adapters
  • 2x 22" BNC Cables
  • Power Supply
  • Rack Mounting Hardware
  • Shure 2 Year Limited Warranty
