Shure TwinPlex TL47 Specifications

  • Microphone Capsule

    Dual-Diaphragm, Prepolarized Condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20 Hz to 20 kHz

  • Sensitivity at 1 kHz

    -45.0 dBV (5.62 mV)

  • Self-Noise,

    A-Weighted, Equivalent Acoustical
    24.5 dB SPL-A

  • Signal-To-Noise Ratio

    69.5 dB

  • Output Clipping Level

    3.0 dBV,1 kHz
    at 1% THD, typical

  • Maximum SPL

    142.0 dB SPL
    1 kHz at 1% THD, typical

  • Dynamic Range

    117.5 dB
    typical

  • Microphone Current Draw

    120 to 240 A, typical

  • Bias Voltage

    5 VDC

  • Housing

    Molded ABS

  • Polarity

    LEMO, NC, MDOT: Positive pressure at diaphragm leads to negative voltage with respect to ground
    MTQG, XLR connector: Positive pressure at diaphragm leads to positive voltage with respect to ground

  • Cable Diameter

    1.6 mm

  • Cable Length

    66 in. (1.67 m)

  • Microphone Length

    13.5 mm

  • Microphone Diameter

    5.6 mm

  • Net Weight with Cable

    12.0 g (0.42 oz.)

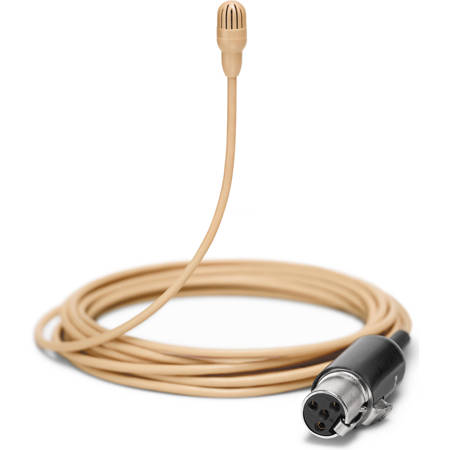

About Shure TwinPlex TL47

In dialogue or monologue. Song or speech. A single word can affect the whole story. Through sweat, noise, and wear and tear, your little lavalier has an enormous job to do. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual- diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

No more "sweat-outs." The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your lavalier rises to the challenge, night after night.

The TwinPlex TL47 is available with connector options for most bodypack transmitters, color options that meet numerous situational needs, and mounting choices for all professional applications. The low sensitivity can handle the most critical acoustic environments without distortion, and the 1.6 mm paintable cable stands up to the most demanding use. With extensive solutions for any application, it's the go-to line for flexibility.

TwinPlex TL47 Features and Benefits:
• With a variety of colors and connectors, the TL47 is ideal for nearly any application
• Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency r esponse due to the patent pending dual- diaphragm design
• Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
• Best-in-class low self-noise and dynamic range for cleaner audio production
• Interchangeable sweat- and moisture-resistant frequency caps prevent sweat- outs due to an invisible syperhydropho bic nanoscopic coating
• Paintable 1.6 mm cable that is immune to memory effect and kinks
• Dual redundant ground in cable serves as secondary shield for longevity
• Sound signature: Natural
• Sensitivity: Low

What's in the box:

  • 3 x Frequency Caps
  • Flat Response
  • 2 x Frequency Caps
  • Presence Response
