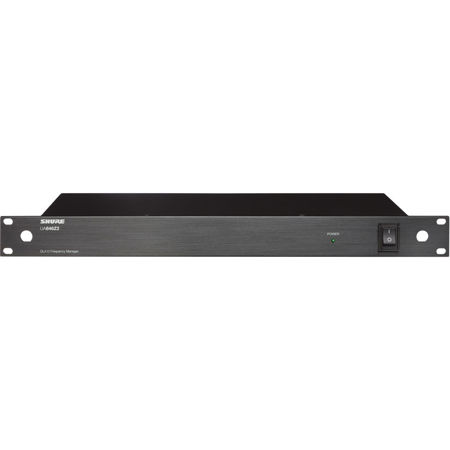

Shure UA846Z2/LC Frequency Manager for GLXD4R Receivers, Less Antenna Cables

Connect up to 6 GLX-D Advanced rack-mountable receiver systems per frequency manager for up to 9 systems in typical environments (11 under optimal conditions). Ideal for house of worship, education and live music applications. Use GLX-D Advanced Frequency Managers to connect up to 6 GLXD4R rack-mountable receivers per frequency manager. Get improved channel count over GLX-D systems: up to 9 systems in typical environments (11 under optimal conditions). Complete with remote antenna accessories for rock-solid RF performance and seamless frequency management.

• Uses patented data communication via RF cables to create and manage the receiver community
• Features revolutionary LINKFREQ Automatic Frequency Management, which quickly identifies the best open group and channel frequencies
• Bi-directional communication link enables transmitters to follow receiver frequency changes automatically
• Identifies and assigns optimal frequencies to receiver and transmitter pairs
• In case of interference, automatically and seamlessly transitions to backup frequencies
• Provides power to the GLXD4R receivers, eliminating need for power strips or multiple outlets
• Operates in the globally unlicensed 2.4 GHz frequency band
• Provides advanced automatic frequency management to a linked receiver community for improved RF performance and increased channel count: Coordinates GLXD4R receiver scans of the 2.4 GHz RF environment, Guarantees use of the clearest possible transmission and backup frequencies

Links multiple GLXD4R receivers via RF ports for traditional antenna distribution
• Allows for remote mounting of antennas in optimal locations for increased signal stability
• Link up to 6 GLXD4R receivers per frequency manager
• Link up to 9 GLXD4R receivers in typical application environments (up to 11 under optimal conditions)
• Two frequency managers required for communities of more than 6 receivers
