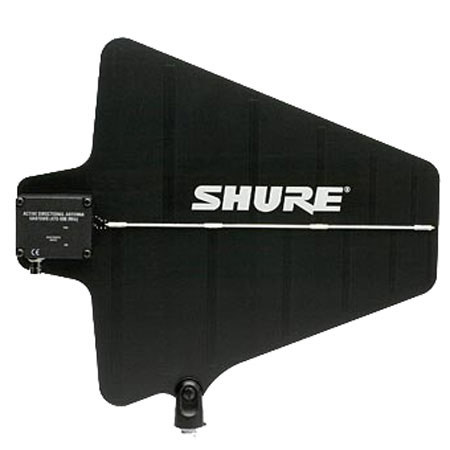

Shure UA870X Active Directional Antenna (944-952 MHz)

The Shure UA870X is an active 1/2 wave directional antenna designed for use with select Shure UHF wireless receivers. The antenna features a cardioid reception pattern which enhances reception of the desired coverage area while eliminating RF signals outside the coverage area. An on-board RF signal amplifier compensates for signal loss during long cable runs. The amplifier features a switch allowing users to select between 3 or 10 dB gain.

The UA870X requires remote 12 V DC power via connected U4 receiver or antenna distribution system. The antenna is completely weather resistant and can be mounted on a microphone stand, suspended from the ceiling, or mounted to a wall using the integrated swivel adapter bracket.
