Shape Swivel Monitor Mount for 24" Atomos Neon

SKU: SHUB24K

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the Self-Securing Closure strips on the SHAPE Swivel Monitor Mount?

The Self-Securing Closure strips are pre-installed on the side and top plates of the mount. They are designed to attach the sun hood to the mount, which helps prevent light from flaring on the monitor and ensures optimal viewing quality.

What is the functionality of the push-button adjustment system?

SHAPE's renowned push-button adjustment system allows for precise tilt adjustments. You can tilt the monitor up to 170 degrees forward and back in 4-degree increments for the optimal viewing angle. Once set, the angle can be locked in place using the locking knob.

What is the purpose of the special bracket included in the kit?

The special bracket included in the kit is designed to support and hold the heavy power supply. It can be fixed on a C-stand or tripod with the included maffer clamp through a unique spigot design.

Can the SHAPE Swivel Monitor Mount be used with other monitors?

The SHAPE Swivel Monitor Mount is specifically designed for the 24" Atomos Neon monitor. Although it may fit other monitors, it is optimized for the best performance with the Atomos Neon.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shape Swivel Monitor Mount for 24" Atomos Neon Specifications

  • Material

    Aluminum

  • Tilt

    +/-170 Degree Tilt in 4 Degree Increments

  • Mounting

    Swivel/Tilt Yoke Mount: C-Stand Spigot
    Power Supply Bracket: Mafer Clamp

  • Load Capacity

    20 lbs (10kg)

  • UPC Code

    629266103005

About Shape Swivel Monitor Mount for 24" Atomos Neon

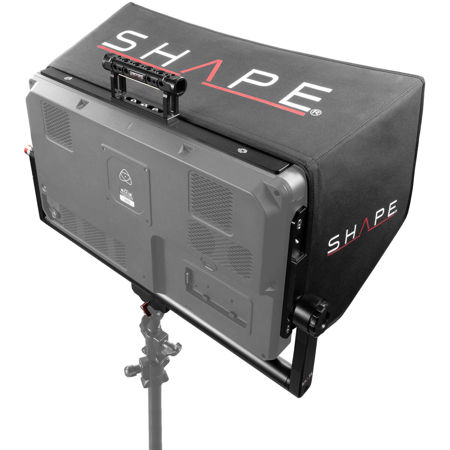

An essential tool for professional video production, the SHAPE Swivel Monitor Mount is specifically designed for the 24" Atomos Neon monitor. This high-quality, durable mount includes a top plate with a convenient briefcase-style handle, along with two sturdy side plates. These are expertly designed to fit into the monitor catchers on each side of the horizontal tube bracket assembly, ensuring a secure and stable setup.

Pre-installed Self-Securing Closure strips on both side plates and the top plate allow for easy attachment of the sun hood. This feature is crucial in preventing light flare on the monitor, ensuring optimal viewing quality in various lighting conditions.

The SHAPE Swivel Monitor Mount is not just durable but also versatile. It features a 750 spigot pin receiver, enabling you to mount the bracket onto a C-stand with ease. The matte black finish of the bracket not only adds to its aesthetic appeal but also minimizes reflection, further enhancing your viewing experience.

One of the standout features of this mount is SHAPE's renowned push-button adjustment system. This allows for precise tilt adjustments up to 170 degrees forward and back in 4-degree increments. Once you've set the desired tilt, a locking knob ensures the monitor stays in that position, supporting up to 20 lbs / 10 kg without shifting. This adjustable feature makes it an ideal choice for various filming needs.

The kit also includes a special bracket designed to support and hold the heavy power supply. This can be easily fixed on a C-stand or tripod with the included maffer clamp through a unique spigot design. With its combination of durability, versatility, and adjustability, the SHAPE Swivel Monitor Mount for 24" Atomos Neon is a reliable choice for your video production needs.

Shape Swivel Monitor Mount for 24" Atomos Neon Features

  • Designed for the Atomos Neon
  • Matte Black CNC-Machined Aluminum
  • +/-170 Degree Tilt in 4 Degree Increments
  • Push-Button Adjustment and Locking Knob
  • Power supply bracket with maffer clamp to support the power supply
  • Compatible with 750 spigot C-stands
  • Mount supports up to 40 pounds

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Achieve optimal viewing with the Shape Swivel Monitor Mount's +/-170° tilt range.
  • Easily mount your 24" Atomos Neon monitor using the robust C-Stand spigot.
  • Safely secure your power supply with the included bracket and Mafer clamp.
  • Enjoy a clear view even in bright conditions with the detachable sun hood.
  • Carry and adjust your setup effortlessly using the integrated top handle.
  • Rely on the durable aluminum build, supporting monitors up to 20 lbs (10kg).

What's in the box:

  • Shape Swivel Monitor Mount
  • Power Supply Bracket
  • Tilting Yoke Mount
  • 2x Side Plate
  • Top Plate
  • Sun Hood
  • Top Handle
  • Mounting Screw Set
  • Shape Lifetime Limited Warranty
