29% Off

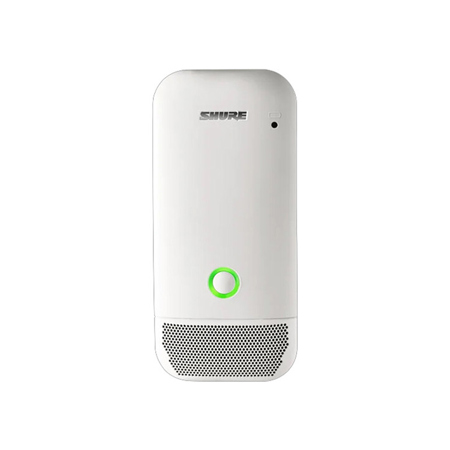

Shure ULXD6 Digital Wireless Boundary Microphone Transmitter Omnidirectional J50A: 572-616MHz White

SKU: SHULX6WOJ50A MFR: ULXD6W/O=-J50A
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Shure wireless boundary microphone transmitter.
  • Achieve low latency and exceptional sound for seamless conference calls and presentations.
  • Enjoy long range wireless freedom up to 328 feet, perfect for large venues and events.
  • Rely on the durable design of this Shure transmitter for years of dependable use.
  • Set up is a breeze! Get your wireless microphone system running quickly with auto-scan.
  • Get 8 hours of battery life with standard AA's, or 9 with a Shure SB900A rechargeable.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the AES-256 encryption feature do in the ULXD6 Digital Wireless Boundary Microphone Transmitter?

The AES-256 encryption feature in the ULXD6 Transmitter provides secure transmission, ensuring that your audio data is protected from potential security breaches.

Can the ULXD6 Digital Wireless Boundary Microphone Transmitter be used in large venues?

Yes, when paired with a ULX-D or QLX-D digital receiver, the ULXD6 Transmitter delivers exceptional performance with low latency and extended transmission range, making it suitable for large venues.

What does the cardioid polar pattern feature do in the ULXD6 Digital Wireless Boundary Microphone Transmitter?

The cardioid polar pattern feature in the ULXD6 Transmitter is designed to capture sound from in front of the microphone while minimizing sound from the sides and rear. This makes it ideal for capturing sound from a specific direction or area.

Is the ULXD6 Digital Wireless Boundary Microphone Transmitter easy to use?

Yes, the ULXD6 Transmitter is user-friendly with a convenient mute switch for easy microphone control. Its low-profile design also allows for easy setup and operation.

What makes the ULXD6 Digital Wireless Boundary Microphone Transmitter versatile?

The ULXD6 Transmitter is versatile due to its omnidirectional and supercardioid capabilities, which allow it to pick up sound from a wide range of directions. This makes it suitable for various audio needs.

Reviews about this item

Review Summary

Shure ULXD6/O Specifications

General

General

Jump to...
  • Wireless Technology

    Digital UHF

  • Available RF Frequency Bands

    J50: 572-636MHz, G50: 470-534MHz, H50: 534-598MHz, J50A: 572-616MHz, X52: 902-928MHz

  • RF Bandwidth

    H50/G50: 64 MHz, J50A: 44 MHz, X52: 26 MHz

  • Frequency Step Size

    25 kHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    328.1' (100m)

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    < 3 ms

  • Encryption

    AES 256

  • Modulation

    Proprietary

Transmitter

Jump to...
  • Transmitter Type

    Tabletop

  • RF Output Power

    J50/G50/H50/J50A: 1 / 10 / 20 mW
    X52: 0.25 / 10 / 20 mW

  • Audio I/O

    None

  • Muting

    Programmable Mute Switch

  • Auto-Level Control

    No

  • Gain Range

    0 to 21 dB (3 dB Steps)

  • Signal Processing

    High-Pass Filter: -12 dB at 150 Hz, 12 dB/Octave Slope

  • Sync Method

    IR

  • Antenna

    1xInternal

  • Power Requirements

    Battery

  • Battery

    2xAA (Included)
    1xShure SB900A (Not Included)

  • Approx. Battery Life

    Med.: 8 Hours (Alkaline)
    Med.: 9 Hours (Lithium Shure SB900A)

  • USB/Lightning I/O

    1xUSB-A (Charging, Host Connection)

  • Display & Indicators

    1xLED (Mute)

  • Housing

    Plastic

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2.4 x 1.3 x 4.5" (62 x 34 x 114mm)

  • Weight

    With Batteries: 8.5oz (241g)

Microphone

Jump to...
  • Microphone Type

    Boundary

  • Available Colors

    Black, White

  • Sound Field

    Mono

  • Available Polar Patterns

    Omnidirectional, Cardioid

  • UPC Code

    042406550536

About Shure ULXD6/O

The ULXD6 Boundary Microphone Transmitter delivers uncompromising audio quality and RF performance, and AES-256 encryption for secure transmission.

The ULXD6 Boundary Microphone Transmitter offers a low-profile boundary form factor that is ideal for tabletop use at meetings and events where wired microphones are impractical. Paired with a ULX-D or QLX-D digital receiver, the ULXD6 creates a system with low latency, long transmission range, and high channel count, delivering exceptional performance in large meeting venues where live sound reinforcement is required.

Shure ULXD6/O Features

  • Very low latency makes the ULXD6 ideal for meetings that require live sound reinforcement
  • Long transmission range (up to 300 feet/100 meters) for reliable performance in very large meetings at conference and convention centers
  • Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD6 boundary microphone transmitters to be used with just one pair of receiving antennas for efficient setup
  • Compatible with ULX-D and QLX-D digital receivers
  • Optional SB900B rechargeable batteries provide up to 9 hours of runtime
  • Compatible with standard AA alkaline batteries
  • Optional SBC250, SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Shure wireless boundary microphone transmitter.
  • Achieve low latency and exceptional sound for seamless conference calls and presentations.
  • Enjoy long range wireless freedom up to 328 feet, perfect for large venues and events.
  • Rely on the durable design of this Shure transmitter for years of dependable use.
  • Set up is a breeze! Get your wireless microphone system running quickly with auto-scan.
  • Get 8 hours of battery life with standard AA's, or 9 with a Shure SB900A rechargeable.

What's in the box:

  • Shure ULXD6 Digital Wireless Boundary Microphone Transmitter
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
