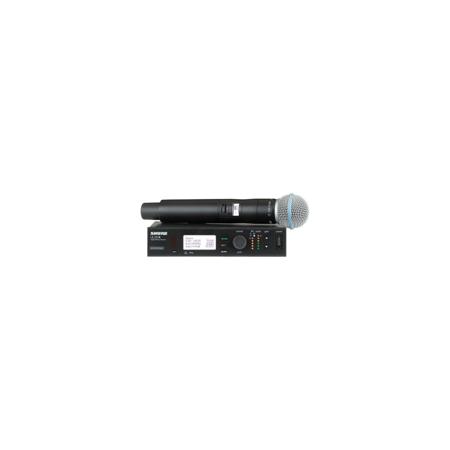

Shure ULXD24/B58-G50 Digital Wireless Handheld Microphone System
Shure ULXD24/B58-G50: Picture 1 thumbnail
Shure ULXD24/B58-G50: Picture 2 thumbnail
Shure ULXD24/B58-G50: Picture 3 thumbnail
Shure ULXD24/B58-G50: Picture 4 thumbnail
See all Shure items
Kit Savings

Shure ULXD24/B58-G50 Digital Wireless Handheld Microphone System, Includes ULXD4 Receiver, ULXD2 Transmitter and Beta 58 Capsule, G50/470 to 534MHz

SKU: SHULXD24B58G MFR: ULXD24/B58-G50
(1)Ask a Question
$1,841.00
OR
$154/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure ULXD4 Single-Channel Digital Wireless Rackmount Receiver G50: 470-534MHz
    Shure ULXD4 Single-Channel Digital Wireless Rackmount Receiver G50: 470-534MHz
  • +
  • Shure ULXD2/B58 Digital Wireless Handheld Transmitter with Beta 58A Mic Capsule G50: 470-534MHz
    Shure ULXD2/B58 Digital Wireless Handheld Transmitter with Beta 58A Mic Capsule G50: 470-534MHz
  • +
  • Show more

Key Features

  • Experience superior sound quality with the Shure Beta 58 wireless microphone system.
  • Enjoy freedom of movement with a reliable wireless range up to 328 feet (100 meters).
  • The ULXD4 receiver offers a wide tuning range (470-534MHz) for clear digital audio.
  • Perfect for live performances, this handheld wireless microphone delivers exceptional clarity.
  • Benefit from durable construction ensuring longevity for your Shure wireless system.
  • Get over 12 hours of battery life with Shure SB900 rechargeable batteries (optional).
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?TAZARRE P : We do weddings and need a professional mic we can depend on. This mic is the best for the level we perform.ALEKSEI G : The best solution

Reviews about this item

Review Summary

2024-01-24T02:11:47

Rated 5 out of 5

Highly recommend

The products and service are above and beyond. Reading some of the reviews had me wondering if I should buy from this company or not, but after some research, it appears Adorama has been around for a long time. I placed the order easily and it was shipped within days, received the product on the same day. This was a present for my brother and he is yet to test it!

FLORINA W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Shure ULXD24/B58-G50 Specifications

  • RF Carrier Frequency

    G50 / 470 to 534MHz
    RF tuning step size: 25kHz

  • Operating Range

    328' (100m)

  • Image Rejection

    >70 dB, typical

  • RF Sensitivity

    -98 dBm at 10-5 BER

  • Latency

    < 2.9ms

  • Frequency Response

    20Hz - 20kHz (+/-1 dB)

  • Dynamic Range

    >120 dB, A-weighted, typical (System Gain @ +10)

  • THD

    <0.1% (-12 dBFS input, System Gain @ +10)

  • Polarity

    Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.

  • Operating Temperature

    0 to 122deg.F (-18 to 50deg.C)

  • Storage Temperature

    -20 to 165deg.F (-29 to 74deg.C)

  • Receiver: Image and Spurious Rejection

    >80 dB, typical

  • Receiver: Antenna Connector

    BNC

  • Receiver: Impedance

    50Ohm
    Bias voltage: 12 - 13V DC, 170 mA maximum, per antenna

  • Receiver: Gain Range

    -18 to +42 dB in 1 dB steps (plus Mute setting)

  • Receiver: Connectors

    1/4" (6.35 mm):: Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Receiver: Input Impedance

    1/4" (6.35 mm): 100 Ohm(50 Ohm Unbalanced)
    XLR: 100 Ohm

  • Receiver: Output Level

    1/4" (6.35 mm):: +12 dBV
    XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

  • Receiver: Pad

    30 dB pad

  • Receiver: Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

  • Receiver: Networking

    Power over Ethernet (PoE): No, protected
    Network interface: Single Port Ethernet 10/100 Mbps
    Network addressing capability: DHCP or Manual IP address
    Maximum Ethernet cable length: 328' (100m)

  • Receiver: Housing

    Galvanized Steel

  • Transmitter: Gain Range

    Gain offset range: 0 to 21 dB (in 3 dB steps)

  • Transmitter: Battery Type

    Shure SB900 Rechargeable Li-Ion or AA batteries
    Runtime @ 10mW
    Shure SB900: >12 hours
    Alkaline: 11 hours

  • Transmitter: Audio Connections

    4-Pin male mini connector (TA4M)
    Unbalanced

  • Transmitter: Impedance

    1M Ohm

  • Transmitter: Line Max Input Level

    Pad Off: 8.5 dBV (7.5 Vpp)
    Pad On: 20.5 dBV (30 Vpp) (1 kHz at 1% THD)

  • Transmitter: EIN

    Preamplifier Equivalent Input Noise (EIN) System Gain Setting = +20:120 dBV, A-weighted, typical

  • Transmitter: Antenna

    Integrated Single Band Helical

  • Transmitter: Bandwidth

    Occupied bandwidth: <200 kHz

  • Transmitter: Modulation Type

    Shure proprietary digital

  • Transmitter: Output Power

    1 mW, 10 mW, 20 mW

  • Transmitter: Housing

    Machined aluminum

  • Dimensions (L x Diameter)

    Transmitter: 10.1 x 2.0" (256.5 x 50.8mm)
    Receiver: 7.75 x 6.75 x 1.66" (196.8 x 171.4 x 42.1mm)

  • Weight

    Transmitter: 12 oz (340g) without batteries
    Receiver: 2.0 lb (0.90kg)

  • UPC Codes

    042406211697, 042406214209, 042406214148

About Shure ULXD24/B58-G50

FEATURED REVIEWS

Highly recommend

By FLORINA W.

The products and service are above and beyond. Reading some of the reviews had me wondering if I should buy from this company or not, but after some research, it appears Adorama has been around for a long time. I placed the order easily and it was shipped within days, received the product on the same day. This was a present for my brother and he is yet to test it!

How can you elevate your live performances with unparalleled audio clarity and reliability Look no further than the Shure ULXD24/B58-G50 Digital Wireless Handheld Microphone System. This professional-grade system delivers transparent, 24-bit digital audio transmission, ensuring uncompromising audio clarity that rivals wired microphones.

Constructed from durable galvanized steel, both the ULXD2 handheld transmitter and ULXD4 receiver are designed to withstand the rigors of any application, from music concerts to theater productions. The system also includes a high-quality Beta 58 microphone capsule, renowned for its superior sound reproduction.

The Shure ULXD24/B58-G50 operates in the 470-534 MHz frequency range, offering an efficient and stable RF performance with an impressive overall tuning range of up to 64MHz. This versatile system supports up to 14 active transmitters in a single 6 MHz TV channel and can accommodate 60 compatible channels on one frequency band, making it a reliable choice for complex audio setups.

With its advanced recharging capabilities and intelligent Shure battery circuitry, this system ensures efficient battery charges for uninterrupted performance. The system's 256-bit signal encryption provides secure RF signal transmission, protecting your audio from potential interference.

The ULXD24/B58-G50 also features optimized scanning that automatically identifies and deploys the cleanest frequencies available. Its interference detection alerts provide instant confirmation when interference is present, allowing for quick troubleshooting.

This system is equipped with comprehensive LCD displays for easy monitoring and control, and it offers both XLR and 1/4" phone balanced outputs for versatile connectivity. With its Ethernet network capability, the Shure ULXD24/B58-G50 Digital Wireless Handheld Microphone System is not just a microphone system, but a comprehensive solution for professional audio transmission.

Shure ULXD24/B58-G50 Features

  • Adorama Valuable Bundle. Kit Includes.
  • Shure ULXD4 Single Digital Wireless Receiver, Power Supply, 2 x 1/2 Wave Antenna, 2 x 2' BNC Cable, 2 x BNC Bulkead Adapters, Rackmount Kit, 5' Ethernet Cable, 2 x AA Alkaline Batteries, Rackmount Bracket (Short), Rackmount Bracket (Long), Link Bar, Shure USA Warranty.
  • Shure ULXD2 Handheld Transmitter, Beta 58A Microphone, Shure USA Warranty.

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience superior sound quality with the Shure Beta 58 wireless microphone system.
  • Enjoy freedom of movement with a reliable wireless range up to 328 feet (100 meters).
  • The ULXD4 receiver offers a wide tuning range (470-534MHz) for clear digital audio.
  • Perfect for live performances, this handheld wireless microphone delivers exceptional clarity.
  • Benefit from durable construction ensuring longevity for your Shure wireless system.
  • Get over 12 hours of battery life with Shure SB900 rechargeable batteries (optional).

What's in the box:

  • Shure ULXD4 Receiver
  • ULXD2 Handheld Transmitter with Beta 58 Capsule
  • Power Supply
  • 2 x 1/2 Wave Antenna
  • 2 x BNC Cable
  • Rackmount Kit
  • Ethernet Cable-5' (1.52m)
  • 2 x AA Alkaline Batteries
  • Rackmount Bracket (Short)
  • Rackmount Bracket (Long)
  • Link Bar
  • Antenna for Bodypack Transmitter
  • Zipper Bag for Bodypack Transmitter
  • AA Battery Adapter for Bodypack Transmitter
  • Shure USA Warranty
