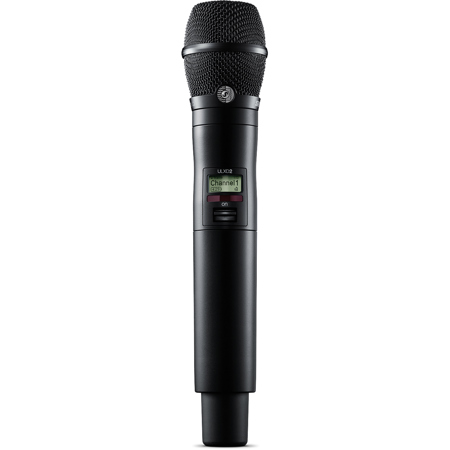

Shure ULXD2/K11 Digital Wireless Handheld Transmitter with KSM11 Mic Capsule G50: 470-534MHz

SKU: SHULX2K1BG50 MFR: ULXD2/K11B=-G50
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with the KSM11 capsule for crystal-clear vocals.
  • Enjoy reliable wireless connectivity up to 328 feet, perfect for dynamic performances.
  • The Shure ULXD2 transmitter boasts a durable aluminum build, ready for rigorous use.
  • Achieve pristine audio with a wide dynamic range, capturing every nuance of your voice.
  • This wireless microphone system is ideal for live vocals, theater, and presentations.
  • Get up to 11 hours of battery life with Shure's SB900A rechargeable battery option.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure ULXD2/K11 Digital Wireless Handheld Transmitter with KSM11 Mic Capsule Specifications

ULXD2 Transmitter

ULXD2 Transmitter

Jump to...
  • Available Frequencies

    G50: 470-534MHz, H50: 534-598MHz

  • Housing Material

    Machined Aluminum

  • Applications

    Live Vocals
    Presentation
    Theater

  • Working Range

    328' (99.98m)

  • Gain Offset Range

    0 to 21 dB (in 3 dB steps)

  • Battery

    Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V

  • Battery Runtime

    At 10 mW:
    Shure SB900A: up to 11 hours
    Alkaline: 11 hours

  • Audio Input: Configuration

    Unbalanced

  • Audio Input: Maximum Input Level

    145 dB SPL (SM58), typical (1 kHz at 1% THD)

  • RF Output: Antenna Type

    Integrated Single Band Helical

  • RF Output: Occupied Bandwidth

    Less than 200 kHz

  • RF Output: Modulation Type

    Shure proprietary digital

  • RF Output: Power

    1 mW, 10 mW, 20 mW

  • Battery Info

    Required, Included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

KSM11 Capsule

Jump to...
  • Housing Material

    Aluminum and Steel Grille

  • Type

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    50 to 20,000 Hz

  • Output Impedance (1 kHz)

    250 Ohm with 5 VDC

  • Sensitivity

    -46.5 dBV/Pa (At 1 kHz, open circuit voltage)

  • Maximum SPL with 5 VDC

    151 dB SPL

  • Signal-to-Noise Ratio

    71.5 dB

  • Dynamic Range with 5 VDC

    128.5 dB

  • Clipping Level with 5 VDC

    10 dBV

  • Self Noise

    22.5 dB SPL (Typical, equivalent SPL, A-weighted)

  • Polarity

    Positive pressure on diaphragm produces positive voltage into transmitter with respect to ground

  • Power Requirements

    5 Volt Bias from Shure Transmitter

  • Dimensions (Dia. x H)

    1.92 x 3.0" (48.7 x 76.3mm)

  • Weight

    5.23 oz (150g)

  • UPC Code

    42406692199

About Shure ULXD2/K11 Digital Wireless Handheld Transmitter with KSM11 Mic Capsule

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems featuring the KSM11 Cardioid Condenser Microphone that provides full lows, clear mids and high-end detail, without the need for extensive EQ.

The ULXD/K11 is a handheld wireless microphone transmitter compatible with ULX-D Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.


- KSM11 Wireless Microphone Capsule -
The KSM11 Wireless Vocal Microphone Capsule redefines vocal performance by providing a prized combination of full lows, clear mids and high-end detail, without the need for extensive EQ. A cardioid condenser designed specifically for live performance, event recording and premium streaming, the KSM11 allows digital wireless systems to present live vocals that must be heard to be believed.

As modern live stages have transitioned to digital technology, the KSM11 cardioid condenser microphone was developed to take advantage of increased digital audio linearity - equal output across the frequency range. The KSM11 delivers an elegant balance of full low end, rich mid-range, essential high-end detail, and incredible off-axis rejection. Professional engineers have a near-perfect presentation of vocal performance to build their mixes around, EQing by choice and not default. You've simply never heard wireless vocals sounding this good.

Features
• Proprietary wireless condenser capsule utilizing a 3/4" gold diaphragm and premium electronics for exceptional dynamic range and transient response
• Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low frequency response, linear and transparent mid-range and natural high-end detail
• Streamlined design for an overall smaller and lighter capsule footprint
• Advanced suspended isolation system for virtually zero handling noise
• Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals
• Available with ULX-D transmitters in black and Axient Digital transmitters in black and nickel. Compatible with all Shure handheld transmitters with interchangeable microphone capsules

Shure ULXD2/K11 Digital Wireless Handheld Transmitter with KSM11 Mic Capsule Features

  • AES 256-bit encryption for applications for which secure transmission is needed
  • Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior sound quality with the KSM11 capsule for crystal-clear vocals.
  • Enjoy reliable wireless connectivity up to 328 feet, perfect for dynamic performances.
  • The Shure ULXD2 transmitter boasts a durable aluminum build, ready for rigorous use.
  • Achieve pristine audio with a wide dynamic range, capturing every nuance of your voice.
  • This wireless microphone system is ideal for live vocals, theater, and presentations.
  • Get up to 11 hours of battery life with Shure's SB900A rechargeable battery option.

What's in the box:

  • Shure ULXD2/K11 Digital Wireless Handheld Transmitter with KSM11 Microphone Capsule
  • 2x 80B8201 AA Alkaline Batteries
  • Microphone Clip
  • Euro-Threaded Adapter
  • Zipper Bag
  • Shure 2 Year Limited Warranty
