Shure ULXD4D Dual-Channel Digital Wireless Rackmount Receiver G50: 470-534MHz

SKU: SHULXD4DG50 MFR: ULXD4D=-G50
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Shure wireless receiver for professional sound.
  • Enjoy reliable wireless connection with AES 256 encryption for secure audio transmission.
  • This dual-channel digital receiver is perfect for live performances and broadcast applications.
  • Achieve low latency of < 2.9 ms, ensuring seamless audio synchronization for any event.
  • Maximize your setup with a rackmount receiver supporting up to 60 transmitters per band.
  • Operate confidently with a wireless microphone system offering a range up to 328 feet.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure ULXD4D Specifications

System
  • Available Frequency Band

    G50: 470-534 MHz
    H50:534-598MHz
    J50A: 572-616MHz
    V50: 174-216MHz
    X52: 902-928MHz

  • Rackmount Size

    1 RU (Full Rack)

  • Diversity

    Yes

  • RF Frequency Band

    G50: 470 to 534 MHz

  • Number of RF Channel Frequencies

    2560

  • Max Operating Range

    328.1' (100m)

  • Max Transmitters per Band

    60

  • Latency

    < 2.9 ms

  • Encryption

    AES 256

  • Timecode Support

    No

  • Mobile App Compatible

    No

Receiver

Jump to...
  • Antenna

    2x Removable BNC 1/2 Wave External (Rear-Mount)

  • Number of Audio Channels

    2

  • Network I/O

    2x RJ45

  • USB Class-Compliant

    No USB Connectivity

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Frequency Response

    30 Hz to 20 kHz +/-1 dB (Dependent on Mic)

  • Built-In Microphone

    No

  • Power Requirements

    AC Input

  • Input Power

    100 to 240 VAC, 50 / 60 Hz at 0.32 A

  • UPC Code

    042406214155

About Shure ULXD4D

Digital dual wireless receiver offers an intelligent dual-channel, option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.

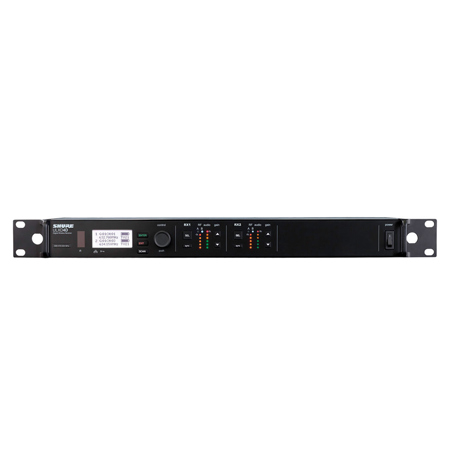

The Shure ULXD4D Dual Channel Digital Wireless Receiver offers two channels of uncompromising audio quality, RF signal stability and efficiency, and advanced setup features in a single rack unit. Rugged, yet lightweight and compact, the all-metal chassis houses two independent receivers, each with its own audio and RF meters, gain control, and receiver outputs that can be either direct or summed for flexible signal routing.

With RF cascade and two Ethernet ports, units easily can share RF signal and be networked together for simplified frequency coordination and deployment. For networked audio applications, Dante digital networking allows multiple channels of audio to be transmitted and received over a single Ethernet cable. When more compatible frequencies over shorter distances, High-Density mode can be enabled to dramatically increase the number of available open frequencies.

With the suite of features and benefits, ULX-D Digital Wireless Systems offer, the ULXD4D is truly generations ahead of any other dual digital receiver in its class and brings a new level of performance to professional sound reinforcement.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Shure ULXD4D Features

  • Two receivers in a rugged 1RU metal chassis with internal power supply
  • Individual gain controls, LED meters, and XLR outputs for each channel
  • Up to 64 MHz tuning range (region dependent)
  • Digital predictive switching diversity
  • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30m
  • RF cascade ports allow distribution of RF signal to another unit
  • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
  • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
  • AES 256-bit encryption-enabled for secure transmission
  • Audio summing routes both audio channels to each XLR receiver output
  • Dante digital networked audio over Ethernet
  • Up to 60 dB independently adjustable gain for each channel
  • Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
  • Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
  • AMX/Crestron control
  • AXT600 Axient Spectrum Manager compatible
  • Yamaha device ID allows simplified channel patching on CL consoles
  • Intuitive front panel LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • XLR connectors with switchable mic/line output level
  • Remoteable 1/2 wave antennas

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior audio clarity with this Shure wireless receiver for professional sound.
  • Enjoy reliable wireless connection with AES 256 encryption for secure audio transmission.
  • This dual-channel digital receiver is perfect for live performances and broadcast applications.
  • Achieve low latency of < 2.9 ms, ensuring seamless audio synchronization for any event.
  • Maximize your setup with a rackmount receiver supporting up to 60 transmitters per band.
  • Operate confidently with a wireless microphone system offering a range up to 328 feet.

What's in the box:

  • Shure ULXD4D Dual-Channel Digital Wireless Rackmount Receiver
  • Mounting Hardware
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x BNC Antenna Cables (22")
  • Ethernet Cable (3')
  • IEC Power Cord
  • Shure 2 Year Limited Warranty
