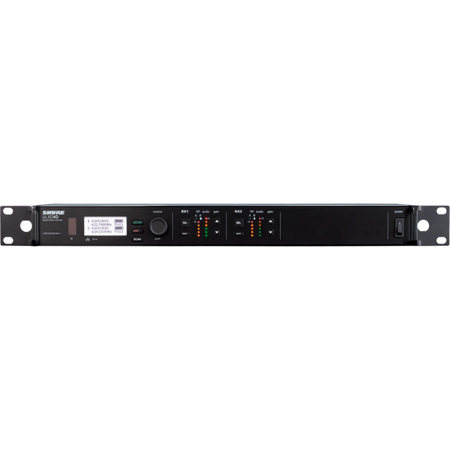

Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver with AES-256 Encryption G50: 470-534MHz
See all Shure items
29% Off

Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver with AES-256 Encryption G50: 470-534MHz

SKU: SHULXDDGVG50 MFR: ULXD4DGV=-G50
Be the first to review this itemAsk a Question
$3,556.00
$4,979.00
Save: $1423 (29%)
OR
$297/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with this Shure digital wireless receiver.
  • Ensure secure transmissions with AES-256 encryption for sensitive content.
  • Enjoy a reliable wireless connection up to 328 feet for stage performances.
  • Easily integrate into existing setups with versatile rackmount receiver design.
  • Optimize your sound with adjustable gain and balanced XLR audio outputs.
  • Scan and select from 2560 frequencies for interference-free operation.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$299.99
3-Year Adorama Protect$449.99
5-Year Adorama Protect$949.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the always-on AES-256 encryption in the Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver?

The always-on AES-256 encryption provides a high level of security for the transmission of audio signals. It ensures that your confidential content is protected, making this receiver suitable for environments where information security is paramount.

Can I use two wireless microphones at the same time with the Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver?

Yes, this dual-channel receiver is designed to allow for the simultaneous use of two wireless microphones or instruments.

What is the frequency range of the Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver?

The Shure ULXD4D-GV operates within three frequency ranges: 470-534 MHz, 534-598 MHz, and 572-616 MHz. This provides flexibility and compatibility with a variety of wireless microphone systems.

What kind of environments is the Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver suitable for?

The Shure ULXD4D-GV is designed for demanding environments such as corporate settings, educational institutions, government facilities, and live performance venues.

What connectors does the Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver have?

The receiver is equipped with an Ethernet RJ-45 connector for networking and an XLR connector for audio input.

Reviews about this item

Review Summary

Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver with AES-256 Encryption Specifications

General

General

Jump to...

  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    G50/H50: 2560
    J50A: 1760
    G57: 470-608MHz

  • Diversity

    Antenna Diversity

  • Available RF Frequency Band

    G50: 470-534MHz, H50: 534-598MHz, J50A: 572-616MHz

  • RF Bandwidth

    G50/H50: 64 MHz
    J50A: 44MHz

  • Frequency Step Size

    25 kHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    328.1' (100m)

  • Max Transmitters per Band

    60

  • Latency

    < 2.9 ms

  • Modulation

    Proprietary

Receiver

Jump to...

  • Receiver Type

    Rackmount

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (Full Rack)

  • Antenna

    2x 1/2 Wave External, BNC (Rear-Mount)

  • Antenna Bias Voltage

    12 to 13 VDC, 150 mA (per Antenna)

  • Number of Audio Channels

    2x

  • Audio I/O

    2x XLR 3-Pin Male Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Outputs: +18 dBV (Line Level, Balanced)
    XLR Outputs: -12 dBV (Mic Level)

  • Phantom Power Protection

    On XLR Outputs

  • Frequency Response

    30 Hz to 20 kHz +/-1 dB (Dependent on Mic)

  • Network I/O

    2x RJ45 (1 Gb/s)

  • Network Protocols

    DHCP, Dante, Manual IP

  • USB/Lightning Connectivity

    None

  • Standalone Audio Interface Capable

    No

  • Impedance

    XLR Output: 100 Ohms (Balanced)

  • Approximate RF Sensitivity

    -98 dBm

  • Adjacent Channel Isolation

    >70 dB

  • Spurious

    Rejection: >80 dB

  • Power Requirements

    AC Input

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 0.32 A

  • Display & Indicators

    1x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
    2x Multi-Segment LED (AF Level, Output Level, Peak)

  • Housing

    Steel

  • Operating Temperature

    0 to 122 Degree F (-17 to 50 Degree C)

  • Storage Temperature

    -20 to 165 Degree F (-28 to 73 Degree C)

  • Dimensions

    19 x 1.7 x 10.8" (482 x 44 x 274mm)

  • Weight

    7.4 lbs (3.4kg)

Other

Jump to...

  • UPC Code

    042406912389

About Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver with AES-256 Encryption

Dual-channel digital wireless receiver for use in demanding corporate, education, government, and performance environments. Wide 64MHz tuning range, extensive antenna and spectrum options, and always-on AES-256 encryption.

The Shure ULXD4D-GV is a dual-channel networkable wireless receiver for use with ULX-D Digital Wireless Systems.

With 24-bit / 48 kHz digital audio for pristine sound quality, efficient RF transmission for maximum channel capacity in crowded spectrum, and always-on AES-256 encryption to protect confidential content, ULX-D delivers uncompromising wireless for the most demanding environments.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation

Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver with AES-256 Encryption Features

  • Two receivers in a rugged 1RU metal chassis with internal power supply
  • Dante digital networked audio over Ethernet
  • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
  • Individual gain controls, LED meters, and XLR outputs for each channel
  • Up to 64MHz tuning range (region dependent)
  • Digital predictive switching diversity
  • High Density mode allows higher channel counts at distances up to 100' (30m)
  • Optimized scanning finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
  • Always-on AES-256 encryption for enhanced privacy in confidential settings
  • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench integration, and AMX/Crestron control
  • Yamaha device ID allows simplified channel patching on CL consoles ("YAMAHA" is a registered trademark of Yamaha Corporation)
  • Remote-mountable 1/2 wave antennas included

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with this Shure digital wireless receiver.
  • Ensure secure transmissions with AES-256 encryption for sensitive content.
  • Enjoy a reliable wireless connection up to 328 feet for stage performances.
  • Easily integrate into existing setups with versatile rackmount receiver design.
  • Optimize your sound with adjustable gain and balanced XLR audio outputs.
  • Scan and select from 2560 frequencies for interference-free operation.

What's in the box:

  • Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x 22" BNC Antenna Cables
  • 3' Ethernet Cable
  • IEC Power Cord
  • Mounting Hardware
  • Shure 2 Year Limited Warranty
