Rack/Table Top Mountable UHF Diversity Wireless Instrument System
554.000 to 865.000 MHz
300 Feet (100m)
25 Hz - 15 kHz, (+/-2 dB)
Greater Than 90 dB
Over 1400 User Selectable Frequencies
Up to 20
ULXS4 Rack/Table-Top Mount Standard UHF Receiver
Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd(Both Outputs Feature: Voltage, Current and Phantom Power Protection)
No
14 - 18 Vdc (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning
Rack / Table Top Mount 1/2 Rack Space
Remotable 1/2 Wave, Rear Mounted
ULX-1 Bodypack UHF Transmitter
TAF4 4-Pin Mini Connector
WL185 Electret Condenser Lavalier
Cardioid
Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector.
Non-Rechargeable Type:
9v Lithium Battery / 21 Hours (Recommended)
9v Alkaline Battery / 8 - 9 Hours (Recommended)
Yes
Yes, 25 dB Gain Adjustment Range
Remotable 1/2 Wave, Rear Mounted
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Receiver: 1.72 x 8.56 x 6.52" (43.68 x 217.4 x 165.60 mm)
Transmitter: 3.86 x 2.68 x 1.10" (98 x 68 x 27.94 mm)
Transmitter: 2 lbs, 5 oz (1049 g)
Receiver: 2.8 oz. (79.37 g) without Battery
042406147668

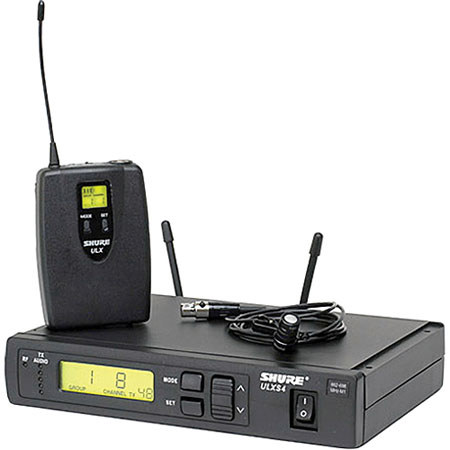

The Shure ULXS14/85-G3 Wireless Lavalier Microphone System provides professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. The system includes the ULXS4 diversity receiver, ULX1 bodypack transmitter and WL185 lavalier microphone.
The ULXS4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.
The ULX1 bodypack transmitter is lightweight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands, etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0 dB and 20 dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9 V battery.
The WL185 lavalier microphone features cardioid pickup pattern, which minimizes off-axis noise and feedback caused by speakers or stage monitors. The WL185 features a 50-17,000 Hz frequency response making it suitable for a wide variety of applications.
