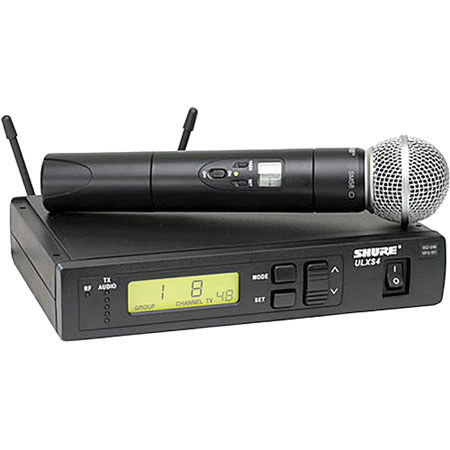

Shure ULXS24/58-J1 Wireless Handheld Microphone System (J1 / 554 - 590 MHz)
See all Shure items

Shure ULXS24/58-J1 Wireless Handheld Microphone System (J1 / 554-590 MHz), Includes ULXS4 Receiver, ULX2 Transmitter, SM58 Capsule

SKU: SHULXS2458J1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Shure ULXS24/58-J1 Specifications

  • System: Type

    Rack/Table Top Mountable UHF Diversity Wireless Instrument System

  • System: RF Carrier Frequency Range

    554.000 to 865.000 MHz

  • System: Approx. Working Range

    300 Feet (100m)

  • System: Overall Frequency Response

    25 Hz - 15 kHz, (+/-2 dB)

  • System: Signal-to-Noise Ratio

    Greater Than 90 dB

  • System: Number Of Channels

    Over 1400 User Selectable Frequencies

  • System: Number Of Simultaneous Systems

    Up to 20

  • Receiver: Type

    ULXS4 Rack/Table-Top Mount Standard UHF Receiver

  • Receiver: Type of Outputs

    Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
    Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd(Both Outputs Feature: Voltage, Current and Phantom Power Protection)

  • Receiver: Headphone Monitoring

    No

  • Receiver: Power Requirements

    14 - 18 Vdc (negative ground), 550 mA
    External Power Supply - PS40, Included, Now with Locking DC Connector

  • Receiver: Display

    Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning

  • Receiver: Mounting Options

    Rack / Table Top Mount 1/2 Rack Space

  • Receiver: Antenna Type

    Remotable 1/2 Wave, Rear Mounted

  • Transmitter: Type

    ULX2/58 Handheld UHF Transmitter

  • Transmitter: Type of Input Connector

    Microphone Element is Attached (Screwed On) to Transmitter

  • Transmitter: Type of Microphone

    SM58 Dynamic Microphone Head

  • Transmitter: Polar Pattern

    Cardioid

  • Transmitter: Interchangeable Mic Heads

    No

  • Transmitter: Battery Type/Approx. Life

    Non-Rechargeable Type:
    9v Lithium Battery / 21 Hours (Recommended)
    9v Alkaline Battery / 8 - 9 Hours (Recommended)

  • Transmitter: Mute Switch

    Yes

  • Transmitter: Level Control

    Yes, 25 dB Gain Adjustment Range

  • Transmitter: Antenna Type

    Remotable 1/2 Wave, Rear Mounted

  • Transmitter: Display

    Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)

  • Dimensions

    Receiver: 1.72 x 8.56 x 6.52" (43.68 x 217.4 x 165.60 mm)
    Transmitter: 9.49 x 2" (241 x 50.8 mm)

  • Weight

    Transmitter: 2 lbs, 5 oz (1049 g)
    Receiver: 2.8 oz. (79.37 g) without Battery

  • UPC Code

    042406082075

About Shure ULXS24/58-J1

Shure ULXS24/58-J1 Features

  • ULXS4 Receiver: Automatic Frequency Selection
  • ULXS4 Receiver: Over 1400 selectable frequencies
  • ULXS4 Receiver: Predictive Diversity
  • ULXS4 Receiver: RF presence LED
  • ULXS4 Receiver: 5-segment audio meter
  • ULXS4 Receiver: 3-segment transmitter battery fuel gauge
  • ULXS4 Receiver: Multi-function LCD
  • ULXS4 Receiver: 1/2 rack design
  • ULXS4 Receiver: Detachable 1/4 wave antennas
  • ULXS4 Receiver: Durable plastic chassis
  • ULXS4 Receiver: Locking DC connector
  • ULXS4 Receiver: XLR and 1/4" outputs
  • ULXS4 Receiver: Mic/line switchable
  • ULX2 Transmitter: 5-segment RF meter
  • ULX2 Transmitter: 300 ft (92m) operating range
  • ULX2 Transmitter: Backlit LCD shows group and channel
  • ULX2 Transmitter: Automatic Frequency Selection with group scan
  • ULX2 Transmitter: 5-segment audio meter
  • ULX2 Transmitter: Frequency and power settings
  • ULX2 Transmitter: Up to 1400 selectable frequencies
  • ULX2 Transmitter: Control lockout
  • ULX2 Transmitter: Predictive Diversity
  • ULX2 Transmitter: 8 hour battery life

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Automatic Frequency Selection
  • Over 1400 selectable frequencies
  • Predictive Diversity
  • ULXS4 Receiver: RF presence LED
  • 5-segment audio meter
  • 3-segment transmitter battery fuel gauge

What's in the box:

  • Shure ULXS4 Diversity Receiver
  • ULX2 Handheld Transmitter
  • SM58 Capsule
  • 9V Alkaline Battery
  • PS40 Power Supply
  • Shure Warranty
