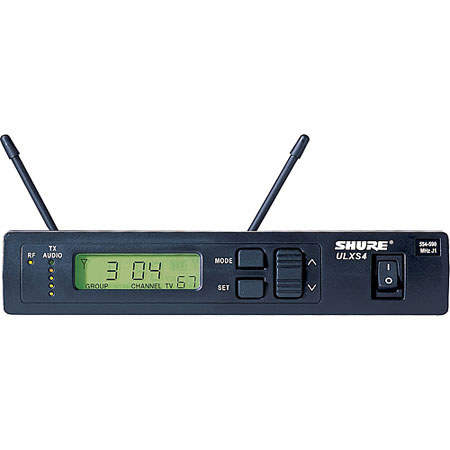

Shure ULXS4-J1 Standard Wireless Receiver with PS40 Power Supply, J1 Band/554-590 MHz

SKU: SHULXS4J1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Ron K : what's the difference between the M1 and J1 models of this unit? thanksANDREW R : The M1 uses a different RF Carrier Frequency Range (662 - 698 MHz)

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure ULXS4 Specifications

  • Type of Receiver

    ULXS4 Rack/Table-Top Mount UHF Standard Diversity Receiver

  • RF Carrier Frequency Range

    J1 Band, 554 - 590 MHz

  • Frequency Response

    25 Hz - 15 kHz, (+/-2 dB)

  • Signal-to-Noise Ratio

    Greater Than 90 dB

  • Approx. Working Range

    300 Feet (100m)

  • Type of Outputs

    Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
    (Both Outputs Feature: Voltage, Current and Phantom Power Protection)

  • Headphone Monitoring

    No

  • Power Requirements

    14 - 18 Vdc (negative ground), 550 mA
    External Power Supply - PS40, Included, Now with Locking DC Connector!

  • No. Of Channels

    Over 1400 User Selectable Frequencies

  • Display

    Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning

  • Mounting Options

    Rack/Table-Top Mount 1/2 Rack Space

  • Antenna Type

    Remotable 1/2 Wave, Rear Mounted

  • Dimensions (HxWxD)

    1.72 x 8.56 x 6.52" (43 x 217 x 165mm)

  • Weight

    2 lbs. 5 oz. (1049 g)

  • UPC Code

    042406080934

About Shure ULXS4

The Shure ULXS4-J1 Standard Wireless Receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile ULXS4-J1 receiver offers a direct path to full, clear audio signals, unencumbered and unattached.

Shure ULXS4 Features

  • Power On Indicator
  • "RF" Diversity Signal Indicators
  • Transmitted (TX) Audio Indicators
  • Receiving Antenna Indicator
  • Group/Channel Displays
  • Transmitter Battery Life Indicator
  • PS40, in-line power supply with locking DC connector
  • MODE Button for Menu Display
  • SET Button for Saving Settings
  • Mic/Line level Switch
  • XLR and 1/4" outputs with level control
  • Space-saving 1/2 rack design

Key Features

  • Power On Indicator
  • RF Diversity Signal Indicators
  • Transmitted (TX) Audio Indicators
  • Receiving Antenna Indicator
  • Group/Channel Displays
  • Transmitter Battery Life Indicator

What's in the box:

  • Shure ULXS4 Standard Wireless Receiver
  • PS40 Power Supply
  • Shure Warranty
