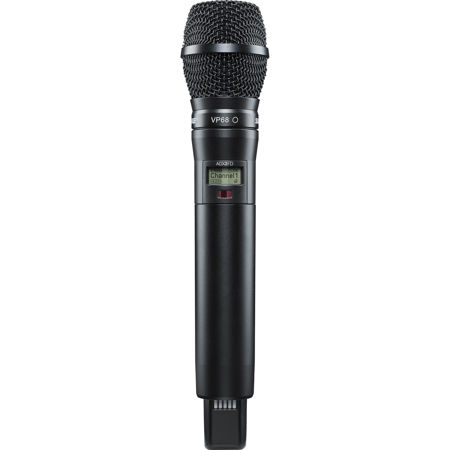

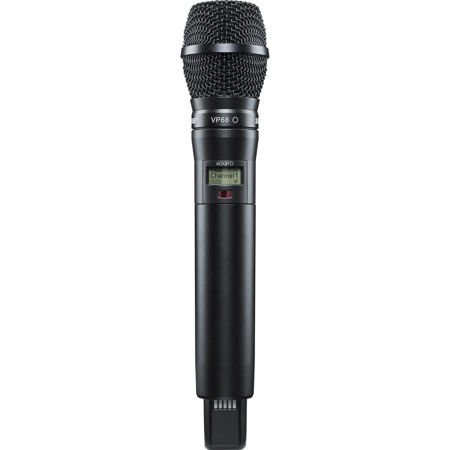

Shure ADX2FD/VP68 Digital Wireless Handheld Transmitter with VP68 Microphone Capsule, G57: 470-616MHz

SKU: SHX2FDV68G57 MFR: ADX2FD/VP68=-G57
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with the Shure ADX2FD/VP68 wireless microphone transmitter.
  • Achieve professional sound quality for live performances and studio recordings with ease.
  • Benefit from reliable, interference-free operation across the 470-616 MHz (G57) frequency band.
  • Enjoy comfortable handling and durable construction, perfect for demanding stage environments.
  • Seamlessly integrate this handheld wireless microphone into your existing Shure Axient Digital system.
  • Invest in Shure's renowned brand reputation for superior audio performance and lasting value.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure ADX2FD/VP68 Specifications

System
  • Wireless Technology

    Digital UHF

  • RF Frequency Band

    470-616MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    328.1' (100m) (Line of Sight)

  • Latency

    2 to 2.9 ms (Selectable)

  • Encryption

    AES 256

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Mobile App Compatible

    No

Transmitter

Jump to...
  • Included Transmitters

    1x Handheld

  • RF Output Power

    20 / 10 / 2 / 50 mW (Selectable)

  • Antenna

    Internal

  • Input Level

    Microphone

  • Audio I/O

    No

  • USB I/O

    No

  • Muting

    Mute Switch

  • Gain Range

    -12 to +21 dB (3 dB Steps)

  • Auto-Level/Gain

    Yes

  • Sync Method

    IR

  • Display

    Backlit LCD

Microphone

Jump to...
  • Microphone

    1x Handheld with Interchangeable Capsule (VP68 Included)

  • Type

    Condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    40 Hz - 20,000 Hz (based on -3dB points in normalized response)

  • Sensitivity (at 1,000 Hz)

    41 dBV/Pa

  • Maximum SPL (at 1,000 Hz)

    136.5 dB SPL

  • Self-Noise

    18.5 dB(A) SPL

  • Dynamic Range (1000 ohms)

    118.0 dB SPL

  • Transmitter Battery Type

    1x Rechargeable (Included, Replaceable)

  • Transmitter Battery Life

    Single-Carrier Mode: up to 9 hours
    Frequency Diversity: up to 6.5 hours

  • Included Charging Case

    No

  • AC/DC Power Adapter

    No

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Color

    Black

  • Housing

    Aluminum

  • Environmental Resistance

    No

  • Dimensions (L x Dia.)

    10 x 2" (254 x 51mm)

  • Weight

    Without Battery: 11.9 oz (338g)

  • UPC Code

    042406526760

About Shure ADX2FD/VP68

ADX2FD/VP68, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

The ADX2FD/VP68 is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.


- VP68 Microphone Capsule -
The RPW124 is the VP68 omnidirectional wireless condenser microphone cartridge for use with Shure wireless handheld transmitters. The omnidirectional polar pattern design of the VP68 allows for consistently superior sound capture, providing the clearest and cleanest on- and off-axis audio for critical ENG and field interview applications.

Features
• Requires minimal positioning towards sound source
• Sound source is typically interview subjects
• Excellent clarity for on-axis or off-axis sources
• Naturally minimized proximity effect
• Excellent performance in interior and exterior applications
• Authentic ambient sounds captured to preserve context
• Works with all Shure wireless handheld transmitter systems with interchangeable microphone cartridge design

Shure ADX2FD/VP68 Features

  • Ability to transmit RF signal on two discrete carriers
  • Optional 50mW High Power mode for driving increased power on a single frequency
  • Durable, moisture-resistant, lightweight metal case in black finish
  • Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with the Shure ADX2FD/VP68 wireless microphone transmitter.
  • Achieve professional sound quality for live performances and studio recordings with ease.
  • Benefit from reliable, interference-free operation across the 470-616 MHz (G57) frequency band.
  • Enjoy comfortable handling and durable construction, perfect for demanding stage environments.
  • Seamlessly integrate this handheld wireless microphone into your existing Shure Axient Digital system.
  • Invest in Shure's renowned brand reputation for superior audio performance and lasting value.

What's in the box:

  • Shure ADX2FD/VP68 Digital Wireless Handheld Transmitter with VP68 Microphone Capsule
  • SB920A Rechargeable Lithium-ion Battery
  • Zipper Bag
  • Threaded Adapter
  • Swivel Adapter
  • Shure 2 Year Limited Warranty
