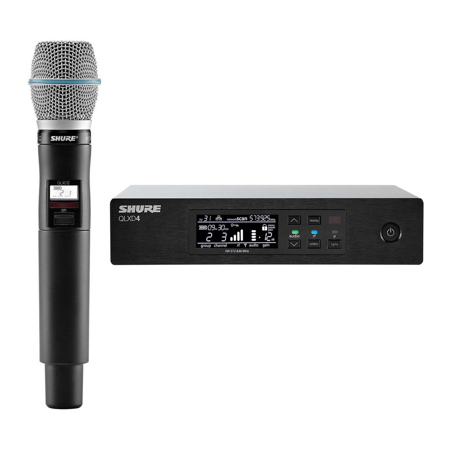

Shure QLXD24/B87A Digital Wireless Microphone System with QLXD2/B87A Handheld Microphone, H50: 534-598MHz

SKU: SHX24B87AH5K MFR: QLXD24/B87A-H50 K
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure QLXD2 Wireless Handheld Microphone Transmitter with BETA 87A Capsule H50: 534-598MHz
    Shure QLXD2 Wireless Handheld Microphone Transmitter with BETA 87A Capsule H50: 534-598MHz
  • +
  • Shure QLXD4 Half-Rack Digital Wireless Receiver H50: 534-598MHz
    Shure QLXD4 Half-Rack Digital Wireless Receiver H50: 534-598MHz
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Experience superior sound quality with this Shure wireless microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range up to 330 feet, ideal for dynamic presentations.
  • The Beta 87A capsule delivers exceptional clarity, making this handheld microphone great for vocalists.
  • Benefit from the system's robust build quality, ensuring durability for frequent use in demanding environments.
  • This digital wireless microphone system offers easy setup and operation, perfect for both beginners and pros.
  • Get long-lasting performance with up to 9 hours of battery life, making it ideal for extended events.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure QLXD24/B87A Specifications

System
  • Wireless Technology

    Analog UHF

  • Number of RF Channel Frequencies

    2560

  • Included Transmitters

    1xHandheld

  • Diversity

    Antenna Diversity

  • RF Frequency Band

    H50: 534-598MHz

  • RF Bandwidth

    64 MHz

  • Frequency Step Size

    25 kHz

  • Max Operating Range

    330' (100.6m)

  • Max Transmitters per Band

    60

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    < 2.9 ms

  • Dynamic Range

    120 dB

  • Encryption

    AES 256

  • Modulation

    Proprietary

Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x1/2 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1xXLR 3-Pin Male Balanced Output
    1x1/4" TRS Female Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Output: +18 dBV (Line Level)
    XLR Output: -12 dBV (Mic Level)
    1/4" Output: +12 dBV (Instrument Level)

  • Phantom Power Protection

    On 1/4", XLR Output

  • Network I/O

    1xRJ45 (10/100 Mb/s)

  • Network Protocols

    DHCP, Manual IP

  • Impedance

    XLR Output: 100 Ohms (Balanced)
    1/4" Output: 100 Ohms (Balanced)
    1/4" Output: 50 Ohms (Unbalanced)

  • Adjacent Channel Isolation

    >70 dB

  • Spurious

    Rejection: >80 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 VDC at 0.4 A, Center-Positive (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 150 mA

  • Display & Indicators

    1xBacklit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
    1xLED (Sync)
    1xLED (Peak)

  • Housing

    Metal

  • Operating Temperature

    0 to 122 Degree F (-18 to 50 Degree C)

  • Dimensions

    7.8 x 1.6 x 5.9" (197 x 41 x 151mm) (without Antennas)

  • Weight

    1.7lbs (777g) (without Antenna)

Transmitter

Jump to...
  • Transmitter Type

    Handheld

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    No

  • Muting

    No

  • Gain Range

    0 to 21 dB (3 dB Steps)

  • Frequency Response

    30 Hz to 20 kHz

  • Sync Method

    IR

  • Antenna

    1x1/4 Wave

  • Power Requirements

    Battery

  • Battery

    2xAA (Included)
    1xShure SB900A (Not Included, Replaceable)

  • Approx. Battery Life

    9 Hours (Alkaline)

  • Display & Indicators

    1xBacklit LCD (Channel, Group, RF Output Power)

  • Housing

    Aluminum

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2 x 10.1" (51 x 256mm)

  • Weight

    12.2oz (347g) (without Batteries)

Microphone

Jump to...
  • Microphone Type

    Handheld Capsule

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Supercardioid

  • Frequency Range

    50 Hz to 20 kHz

  • Maximum SPL

    140.5 dB SPL

  • Sensitivity

    -52.5 dBV/Pa

  • UPC Codes

    042406346139, 042406341141

About Shure QLXD24/B87A

Overcome your audio challenges with the QLXD24/B87A Digital Wireless Microphone System, featuring the QLXD2/B87A Handheld Microphone. This system is designed to deliver superior sound quality and robust wireless functionality, making it an ideal choice for mid-sized events, business installations, hotels, government offices with conferencing spaces, schools, houses of worship, and live performance venues.

The heart of this system is the QLXD4 Digital Wireless Receiver, a device that combines professional-grade features with ease of setup and operation. It boasts a transparent 24-bit digital audio quality and efficient RF spectrum usage. With features like Automatic Channel scan, Networked Channel Scan, digital predictive switching, and AES 256 encryption, it ensures secure and high-quality audio transmission.

The receiver's automatic scanning quickly identifies open frequencies, and with one-touch IR sync, these frequencies can be swiftly deployed to transmitters. Its Ethernet networking capability allows for networked channel scanning across multiple receivers and seamless integration with Wireless Workbench software. This enables remote control of receiver settings from a PC or Mac. Additionally, the ShurePlus Channels Mobile App allows for remote monitoring and control from iOS devices.

The QLXD2/B87A Handheld Transmitter with Beta 87A Capsule is the perfect companion to the receiver. It offers transparent 24-bit digital audio quality and efficient RF spectrum usage. Designed for wireless vocals in various spaces, it syncs quickly with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire 100 m (330 ft.) range. Its all-metal construction ensures durability, while its wide selection of compatible microphone choices offers the legendary Shure sound signatures.

Both the receiver and transmitter are housed in durable aluminum construction with a brushed finish, ensuring longevity and a professional look. With the QLXD24/B87A Digital Wireless Microphone System and QLXD2/B87A Handheld Microphone, you can expect high-quality, secure, and reliable audio performance.

Shure QLXD24/B87A Features

  • 24-bit digital audio quality and incredibly efficient RF spectrum usage
  • Detachable 1/2 wave antennas for Receiver
  • AES 256-bit encryption for secure transmission
  • Backlit LCD with easy to navigate menu and controls
  • QLXD2 has 330' (100m) line-of-sight operating range
  • Interchangeable Shure microphone capsules, including the legendary SM58

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Shure wireless microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range up to 330 feet, ideal for dynamic presentations.
  • The Beta 87A capsule delivers exceptional clarity, making this handheld microphone great for vocalists.
  • Benefit from the system's robust build quality, ensuring durability for frequent use in demanding environments.
  • This digital wireless microphone system offers easy setup and operation, perfect for both beginners and pros.
  • Get long-lasting performance with up to 9 hours of battery life, making it ideal for extended events.

What's in the box:

  • QLXD4 Digital Wireless Receiver
  • QLXD2/B87A Digital Handheld Wireless Microphone Transmitter with Beta 87A Capsule
  • Microphone Clip
  • Mounting Hardware
  • Short Rackmount Bracket with Link Bar
  • Long Rackmount Bracket
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x BNC Antenna Cables (22")
  • PS23US Power Supply
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
