What is the range of the QLXD1 Bodypack Transmitter?

The QLXD1 Bodypack Transmitter maintains a clear, uninterrupted signal over its entire 100 m (330 ft.) range.

What are the features of the QLXD4 Digital Wireless Receiver?

The QLXD4 Digital Wireless Receiver offers automatic channel scan, networked channel scan, digital predictive switching, and AES 256 encryption for secure transmission. It also allows for Ethernet networking and Wireless Workbench software integration.

What is the purpose of the WL185 Cardioid TQG Lavalier Microphone?

The WL185 Cardioid TQG Lavalier Microphone is a wireless premium cardioid condenser lavalier mic that is ideal for speech applications and general-purpose sound reinforcement.

How does the QLXD2/SM58 Handheld Transmitter sync with a wireless receiver?

The QLXD2/SM58 Handheld Transmitter syncs quickly with a wireless receiver over IR at the push of a button.

What venues are suitable for the QLXD124/85 Digital Wireless Combo Microphone System?

The QLXD124/85 Digital Wireless Combo Microphone System is perfect for mid-sized events and installations in commercial spaces, such as businesses, hotels, government offices with conferencing facilities, educational institutions, places of worship, and live performance venues.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure QLXD124/85 Specifications

System
  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    2560

  • Included Transmitters

    1xBodypack
    1xHandheld

  • Diversity

    Antenna Diversity

  • RF Frequency Band

    V50: 174-216MHz

  • RF Bandwidth

    64 MHz

  • Frequency Step Size

    25 kHz

  • Max Operating Range

    330' (100.6m)

  • Max Transmitters per Band

    60

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    < 2.9 ms

  • Dynamic Range

    120 dB

  • Encryption

    AES 256

  • Modulation

    Proprietary

Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2 x1/2 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1xXLR 3-Pin Male Balanced Output
    1x1/4" TRS Female Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Output: +18 dBV (Line Level)
    XLR Output: -12 dBV (Mic Level)
    1/4" Output: +12 dBV (Instrument Level)

  • Phantom Power Protection

    On 1/4", XLR Output

  • Network I/O

    1xRJ45 (10/100 Mb/s)

  • Network Protocols

    DHCP, Manual IP

  • Impedance

    XLR Output: 100 Ohms (Balanced)
    1/4" Output: 100 Ohms (Balanced)
    1/4" Output: 50 Ohms (Unbalanced)

  • Approximate RF Sensitivity

    -97 dBm

  • Adjacent Channel Isolation

    >70 dB

  • Spurious

    Rejection: >80 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 VDC at 0.4 A, Center-Positive (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 150 mA

  • Display & Indicators

    1xBacklit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
    1xLED (Sync)
    1xLED (Peak)

  • Housing

    Metal

  • Operating Temperature

    0 to 122 Degree F (-18 to 50 Degree C)

  • Dimensions

    7.8 x 1.6 x 5.9" (197 x 41 x 151mm) (without Antennas)

  • Weight

    1.7lbs (777g) (without Antenna)

Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    1xTA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

  • Audio Input Level

    8.5 dBV / 7.5 V p-p

  • Gain Range

    0 to 21 dB (3 dB Steps)

  • Frequency Response

    20 Hz to 20 kHz

  • Sync Method

    IR

  • Antenna

    1x1/4 Wave

  • Power Requirements

    Battery

  • Battery

    2xAA (Included)
    1xShure SB900A (Not Included, Replaceable)

  • Approx. Battery Life

    9 Hours (Alkaline)

  • Display & Indicators

    1xBacklit LCD (Channel, Group, RF Output Power)

  • Housing

    Aluminum

  • Dimensions

    2.6 x 3.4 x 0.9" (65 x 86 x 23mm)

  • Weight

    4.9oz (138g) (without Batteries)

Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Polar Pattern

    Cardioid

  • Frequency Range

    50 Hz to 17 kHz

  • SNR

    18 dB A-Weighted

  • Maximum SPL

    130.5 dB SPL

  • Impedance

    1800 Ohms

  • Sensitivity

    -45.5 dBV/Pa

  • Dynamic Range

    102.5 dB

  • Output Connector

    1xTA4F/Mini-XLR 4-Pin Female Unbalanced (Locking)

  • Cable Length

    3.94' (1.2m)

  • Operating Voltage

    1.5 to 10 V

Transmitter 2

Jump to...
  • Transmitter Type

    Handheld

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    No

  • Gain Range

    0 to 21 dB (3 dB Steps)

  • Frequency Response

    30 Hz to 20 kHz

  • Sync Method

    IR

  • Antenna

    1 x1/4 Wave Internal

  • Power Requirements

    Battery, Bus Power (USB)

  • Battery

    2xAA (Included)
    1xShure SB900A (Not Included, Replaceable)

  • Approx. Battery Life

    9 Hours (Alkaline)

  • Display & Indicators

    1xBacklit LCD (Battery Status, Channel, Group, RF Output Power)

  • Housing

    Aluminum

  • Dimensions

    2 x 10.1" (51 x 256mm)

  • Weight

    12.2oz (347g) (without Batteries)

Microphone 2

Jump to...
  • Second Microphone Type

    Handheld Capsule

  • Sound Field

    Mono

  • Capsule

    Dynamic

  • Polar Pattern

    Cardioid

  • Frequency Range

    50 Hz to 15 kHz

  • Maximum SPL

    145 dB SPL

  • THD

    0.01

  • Sensitivity

    -54.5 dBV/Pa

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

  • UPC Codes

    V50: 174-216MHz: 042406463096 | V50: 174-216MHz: 042406463201 | V50: 174-216MHz: 042406463348 | 042406053136

About Shure QLXD124/85

An exceptional blend of professional features and user-friendly operation, the QLXD124/85 Digital Wireless Combo Microphone System with WL185 Lavalier and QLXD2/SM58 Handheld Mics, V50: 174-216MHz, is designed to deliver superior wireless functionality. This system is perfect for mid-sized events and installations in commercial spaces, such as businesses, hotels, government offices with conferencing facilities, educational institutions, places of worship, and live performance venues.

The QLXD1 Bodypack Transmitter, a key component of this system, offers transparent 24-bit digital audio quality and highly efficient RF spectrum usage. It's designed for wireless vocals and instruments in various venues, from presentation spaces to music venues and houses of worship. The QLXD1 syncs effortlessly with a wireless receiver over IR at the push of a button, maintaining a clear, uninterrupted signal across its entire 100 m (330 ft.) range. Its robust metal construction ensures durability, while a wide range of compatible microphone choices offer the legendary Shure sound signatures.

The QLXD4 Digital Wireless Receiver, another integral part of this system, combines professional features with streamlined setup and operation. It offers automatic channel scan, networked channel scan, digital predictive switching, and AES 256 encryption for secure transmission. The receiver's automatic scanning quickly finds open frequencies, and one-touch IR sync swiftly deploys them to transmitters. Its Ethernet networking capability enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac.

The QLXD2/SM58 Handheld Transmitter with SM58 Capsule offers transparent 24-bit digital audio quality and highly efficient RF spectrum usage. It syncs quickly with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire 100 m (330 ft.) range. Its robust metal construction ensures durability, and a wide range of compatible microphone choices offer the legendary Shure sound signatures.

The WL185 Cardioid TQG Lavalier Microphone, a wireless premium cardioid condenser lavalier mic, is ideal for speech applications. It's recommended for general-purpose sound reinforcement applications requiring good rejection of ambient noise. The WL185 is a cardioid lavalier microphone with a 130-degree pickup angle and a 1.2-meter (4 ft.) cable terminated with a miniature 4-pin mini connector. Its included tie clip can be rotated in 90-degree intervals for placement flexibility.

In summary, the QLXD124/85 Digital Wireless Combo Microphone System with WL185 Lavalier and QLXD2/SM58 Handheld Mics, V50: 174-216MHz, is a comprehensive solution for superior audio quality and efficient wireless functionality in a variety of professional settings.

Shure QLXD124/85 Features

  • 4-Pin male mini connector (TA4M) for QLXD1 Bodypack Transmitter
  • QLXD1 bodypack transmitter is ideal for wireless vocals and instruments
  • 24-Bit digital audio quality
  • WL185 is a cardioid lavalier microphone with a 130 degree pickup angle
  • Backlit LCD with easy to navigate menu and controls
  • AES 256-bit encryption for secure transmission

Product Documents

User Manual

Key Features

  • 4-Pin male mini connector (TA4M) for QLXD1 Bodypack Transmitter
  • QLXD1 bodypack transmitter is ideal for wireless vocals and instruments
  • 24-Bit digital audio quality
  • WL185 is a cardioid lavalier microphone with a 130 degree pickup angle
  • Backlit LCD with easy to navigate menu and controls
  • AES 256-bit encryption for secure transmission

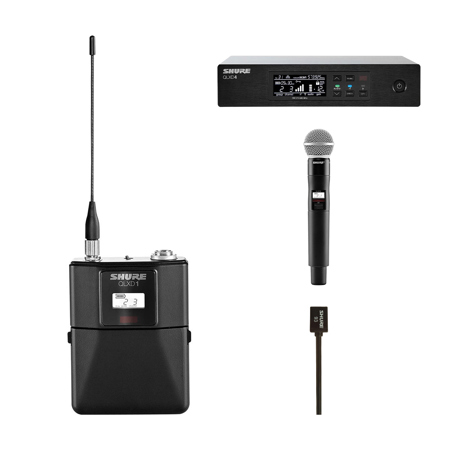

What's in the box:

  • QLXD4 Digital Wireless Receiver
  • QLXD1 Digital Wireless Bodypack Transmitter
  • WL93 Omni Lavalier Condenser Microphone w/TA4F Connector (Black)
  • QLXD2/SM58 Digital Handheld Wireless Microphone Transmitter with SM58 Capsule
  • Microphone Clip
  • Mounting Hardware
  • Short Rackmount Bracket with Link Bar
  • Long Rackmount Bracket
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x BNC Antenna Cables (22")
  • Ethernet Cable (3')
  • PS24US Power Supply
  • 4x AA Batteries
  • Shure 2 Year Limited Warranty
