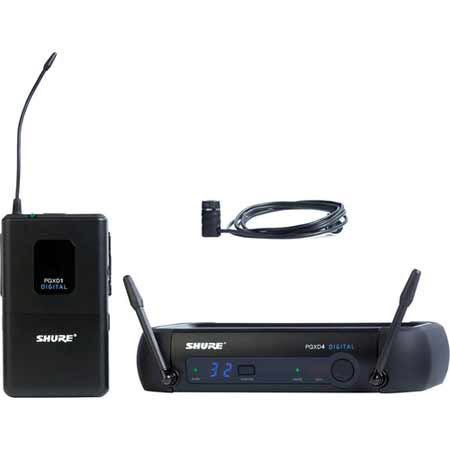

Shure PGXD14/85 Digital Wireless Lavalier System
See all Shure items

Shure PGXD14/85 Digital Wireless Lavalier System with WL185 Lavalier Microphone, X8 (902-928 MHz) Band

SKU: SHXD1485X8
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Shure MoveMic Wireless Lavalier Microphone
$177.00
$142.00
undefined undefined: Picture 1 regular
Shure BLX14/CVL Wireless Cardioid Lavalier Microphone System
$457.00
$359.00
undefined undefined: Picture 1 regular
Shure BLX188 Wireless 2-Channel Presenter System with CVL Lavalier Microphone
$875.00
$689.00
undefined undefined: Picture 1 regular
Shure GLXD14+ Dual Band Digital Wireless System w/WL93 Lav Mic, Z3: 2.4/5.8GHz
$862.00
$689.00
undefined undefined: Picture 1 regular
Shure GLXD14R+ Dual Band Digital Wireless Rack System w/WL93 Mic, Z3: 2.4/5.8GHz
$998.00
$799.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure PGXD14/85 Specifications

  • Transmitter: Audio Input Level

    +10 dBV maximum, at minimum gain setting
    -16 dBV maximum, at maximum gain setting

  • Transmitter: Gain Adjustment Range

    26 dB

  • Transmitter: Input Impedance

    1M ohms

  • Transmitter: RF Output Power

    10 mW varies by region

  • Transmitter: Pin Assignments

    TA4M:
    1: ground (cable shield)
    2: + 5 V Bias
    3: audio
    4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

  • Transmitter: Housing

    Molded polycarbonate case

  • Transmitter: Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Transmitter: Battery Life

    Up to 10 hours

  • Receiver: Housing

    ABS

  • Receiver: Sensitivity

    -102 dBm @ 10 -5 BER

  • Receiver: Power Requirements

    12-18 V DC @ 150 mA, supplied by external power supply (tip positive)

  • Receiver: Audio LED

    Red: 2 dB below clip
    Amber: 12 dB below clip
    Green: 50 dB below clip

  • Receiver: Audio Output Level

    XLR connector: -2.5 dBV (into 3 kOhm load)
    6.35 mm (1/4") Connector: +10 dBV (into 10 kOhm load) (1 kHz tone)

  • Receiver: Impedance

    XLR: 50 ohms
    6.35 mm (1/4"): 50 ohms

  • Receiver: Pin Assignments

    XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4")
    TRS: Tip=audio, Ring=no audio, Sleeve=ground

  • RF Carrier Range

    X8: 902-928 MHz

  • Audio Frequency Response

    20-20000 Hz

  • Dynamic Range

    >108 dB, A-weighted

  • Operating Temperature Range

    -18deg.C (0deg.F)- +50deg.C (122deg.F)

  • Dimensions (H x W x D)

    Transmitter: 108 mm x 64 mm x 19 mm(4.25" x 2.51" x 0.74")
    Receiver: 40 mm X 181 mm X 104 mm(1.57" x 7.12" x 4")

  • Weight

    Transmitter: 128 g (4.5 oz)
    Receiver: 289 g (10.2 oz)

0 Accessories for Shure PGXD14/85 Digital Wireless Lavalier System with WL185 Lavalier Microphone, X8 (902-928 MHz) Band

About Shure PGXD14/85

The Shure PGXD14/85-x8 Digital Wireless Lavalier System with state-of-the-art, 24-bit digital audio and trusted Shure microphones, delivers stunning sound and a strong, clean RF signal. It comes with WL185 cardioid condenser lavalier microphone.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

What's in the box:

  • Shure PGXD4 Receiver
  • PGXD1 Bodypack Transmitter
  • WL185 Lavalier Microphone
  • Power Supply
  • 2 AA Batteries
  • User Guide
  • Shure Warranty
