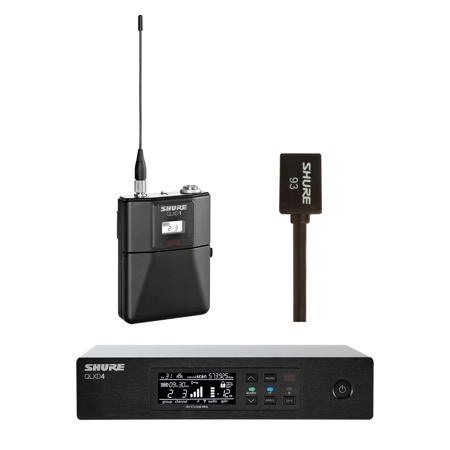

Shure QLXD14/93 Digital Wireless Microphone System with WL93 Lavalier Microphone, G50: 470-534MHz

SKU: SHXD1493G5K MFR: QLXD14/93-G50 K
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure QLXD1 Digital Wireless Bodypack Transmitter G50: 470-534MHz
    Shure QLXD1 Digital Wireless Bodypack Transmitter G50: 470-534MHz
  • +
  • Shure QLXD4 Half-Rack Digital Wireless Receiver G50: 470-534MHz
    Shure QLXD4 Half-Rack Digital Wireless Receiver G50: 470-534MHz
  • +
  • Shure WL93 Omni Lavalier Condenser Microphone w/TA4F for Shure, 4' Cable, Black
    Shure WL93 Omni Lavalier Condenser Microphone w/TA4F for Shure, 4' Cable, Black
  • +
  • Show more

Key Features

  • Crystal-clear audio: The WL93 lavalier mic ensures professional sound quality for any recording.
  • Reliable wireless: Enjoy freedom with a Shure wireless microphone system operating at 470-534MHz.
  • Versatile use: Ideal for presentations, interviews, or stage performances needing discreet mics.
  • Extended range: Confidently move up to 330 feet with a dependable wireless lavalier microphone.
  • Secure signal: Features AES 256 encryption for secure wireless transmission, keeping audio private.
  • Durable and lightweight: The robust bodypack transmitter is built for lasting use, gig after gig.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure QLXD14/93 Specifications

System
  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    2560

  • Included Transmitters

    1xBodypack

  • Diversity

    Antenna Diversity

  • RF Frequency Band

    G50:470-534MHz

  • RF Bandwidth

    64 MHz

  • Frequency Step Size

    25 kHz

  • Max Operating Range

    330' (100.6m)

  • Max Transmitters per Band

    60

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    < 2.9 ms

  • Dynamic Range

    120 dB

  • Encryption

    AES 256

  • Modulation

    Proprietary

Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x1/2 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1xXLR 3-Pin Male Balanced Output
    1x1/4" TRS Female Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Output: +18 dBV (Line Level)
    XLR Output: -12 dBV (Mic Level)
    1/4" Output: +12 dBV (Instrument Level)

  • Phantom Power Protection

    On 1/4", XLR Output

  • Network I/O

    1xRJ45 (10/100 Mb/s)

  • Network Protocols

    DHCP, Manual IP

  • Impedance

    XLR Output: 100 Ohms (Balanced)
    1/4" Output: 100 Ohms (Balanced)
    1/4" Output: 50 Ohms (Unbalanced)

  • Adjacent Channel Isolation

    >70 dB

  • Spurious

    Rejection: >80 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 VDC at 0.4 A, Center-Positive (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 150 mA

  • Display & Indicators

    1xBacklit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
    1xLED (Sync)
    1xLED (Peak)

  • Housing

    Metal

  • Operating Temperature

    0 to 122 Degree F (-18 to 50 Degree C)

  • Dimensions

    7.8 x 1.6 x 5.9" (197 x 41 x 151mm) (without Antennas)

  • Weight

    1.7lbs (777g) (without Antenna)

Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • Housing

    Aluminum

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    1xTA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

  • Audio Input Level

    8.5 dBV / 7.5 V p-p

  • Gain Range

    0 to 21 dB (3 dB Steps)

  • Frequency Response

    20 Hz to 20 kHz

  • Sync Method

    IR

  • Antenna

    1x1/4 Wave

  • Power Requirements

    Battery

  • Display & Indicators

    1xBacklit LCD (Channel, Group, RF Output Power)

  • Battery

    2xAA (Included)
    1xShure SB900A (Not Included, Replaceable)

  • Approx. Battery Life

    9 Hours (Alkaline)

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2.6 x 3.4 x 0.9" (65 x 86 x 23mm)

  • Weight

    4.9oz (138g) (without Batteries)

Microphone

Jump to...
  • Color

    Black

  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Polar Pattern

    Omnidirectional

  • Pad

    No

  • High-Pass Filter

    No

  • Frequency Range

    50 Hz to 20 kHz

  • Maximum SPL

    120 dB SPL

  • Sensitivity

    -38 dBV/Pa

  • Dynamic Range

    102 dB

  • Output Connector

    1 xTA4F/Mini-XLR 4-Pin Female

  • Cable Length

    3.94' (1.2m)

  • Power Sources

    Plug-In Power

  • Operating Voltage

    2 to 10 V

  • Operating Temperature

    0 to 135 Degree F (-18 to 57 Degree C)

  • Storage Temperature

    -20 to 165 Degree F (-28 to 73 Degree C)

  • Weight

    0.6oz (16g)

  • UPC Codes

    042406346719, 042406341158, 042406055338

About Shure QLXD14/93

Before diving into the details, let's introduce the QLXD14/93 Digital Wireless Microphone System with WL93 Lavalier Microphone, G50: 470-534MHz. This system is a blend of professional-grade features, easy setup, and seamless operation. It's an ideal solution for mid-sized events and installations in corporate offices, hotels, government buildings with conferencing facilities, educational institutions, places of worship, and live performance venues.

The QLXD14/93 system includes the QLXD1 Bodypack Transmitter, renowned for its crystal-clear 24-bit digital audio quality and highly efficient RF spectrum usage. This transmitter is perfect for wireless vocals and instruments in various settings, from presentation spaces to music venues and religious institutions. It syncs swiftly with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire 100 m (330 ft.) range. Its all-metal construction ensures durability, and its compatibility with a wide selection of microphones offers the legendary Shure sound signatures.

Key features of the QLXD1 Bodypack Transmitter include over 120 dB of dynamic range, AES 256-bit encryption for secure transmission, optional Shure SB900B lithium-ion rechargeable battery with remaining runtime reporting, external charging contacts for docked charging, backlit LCD with easy-to-navigate menu and controls, selectable display mode, 4-Pin male mini connector (TA4M), rugged metal construction, detachable 1/4 wave antenna, and frequency and power lockout.

The QLXD14/93 system also includes the QLXD4 Digital Wireless Receiver, which combines professional features with streamlined setup and operation. It offers automatic channel scan, networked channel scan, digital predictive switching, and AES 256 encryption for security. With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver provides professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters.

The QLXD4 receiver also offers Ethernet networking for networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices are also available via the ShurePlus Channels Mobile App.

The QLXD14/93 system is completed with the WL93 Miniature Lavalier Microphone, an omnidirectional, subminiature, lavalier, condenser microphone designed for general speech applications where a visually unobtrusive microphone is desirable. It offers a smooth frequency response, controlled low-frequency roll-off, and versatile mounting accessories. The WL93 microphone provides full, clear sound in speech applications, like broadcast presenting and speeches, and is supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications.

Shure QLXD14/93 Features

  • 4-Pin male mini connector (TA4M) for QLXD1 Bodypack Transmitter
  • QLXD1 bodypack transmitter is ideal for wireless vocals and instruments
  • 24-Bit digital audio quality
  • Full, clear sound comparable to larger microphones
  • Backlit LCD with easy to navigate menu and controls
  • AES 256-bit encryption for secure transmission

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: The WL93 lavalier mic ensures professional sound quality for any recording.
  • Reliable wireless: Enjoy freedom with a Shure wireless microphone system operating at 470-534MHz.
  • Versatile use: Ideal for presentations, interviews, or stage performances needing discreet mics.
  • Extended range: Confidently move up to 330 feet with a dependable wireless lavalier microphone.
  • Secure signal: Features AES 256 encryption for secure wireless transmission, keeping audio private.
  • Durable and lightweight: The robust bodypack transmitter is built for lasting use, gig after gig.

What's in the box:

  • QLXD4 Digital Wireless Receiver
  • QLXD1 Digital Wireless Bodypack Transmitter
  • WL93 Subminiature Omnidirectional Lavalier Microphone with 4' Cable and TA4F Connector (Black)
  • Mounting Hardware
  • Short Rackmount Bracket with Link Bar
  • Long Rackmount Bracket
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x BNC Antenna Cables (22")
  • Ethernet Cable (3')
  • PS24US Power Supply for Select Wireless Receivers
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
