Kit Savings

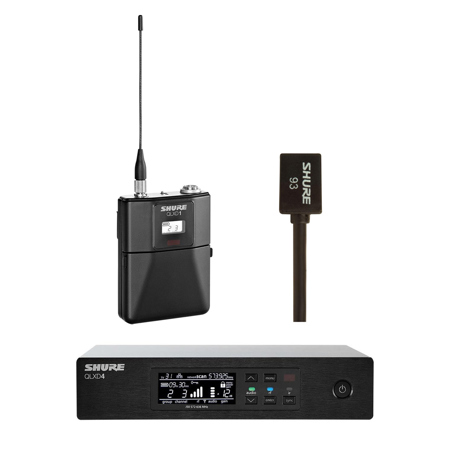

Shure QLXD14/93 Digital Wireless Microphone System with WL93 Lavalier Microphone, V50: 174-216MHz

SKU: SHXD1493V5K MFR: QLXD14/93-V50 K
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure QLXD1 Digital Wireless Bodypack Transmitter V50: 174-216MHz
    Shure QLXD1 Digital Wireless Bodypack Transmitter V50: 174-216MHz
  • +
  • Shure QLXD4 Half-Rack Digital Wireless Receiver V50: 174-216MHz
    Shure QLXD4 Half-Rack Digital Wireless Receiver V50: 174-216MHz
  • +
  • Shure WL93 Omni Lavalier Condenser Microphone w/TA4F for Shure, 4' Cable, Black
    Shure WL93 Omni Lavalier Condenser Microphone w/TA4F for Shure, 4' Cable, Black
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with a reliable wireless range up to 330 feet using this lavalier mic.
  • The WL93 lavalier microphone delivers exceptional sound quality for interviews and film projects.
  • This digital wireless system operates in the V50 band (174-216MHz) minimizing interference issues.
  • Benefit from low latency (<2.9 ms) ensuring real-time audio sync for live streaming and broadcast.
  • Secure your audio with AES 256 encryption, offering top-tier privacy during sensitive recordings.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Shure QLXD14/93 Specifications

System
  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    2560

  • Included Transmitters

    1xBodypack

  • Diversity

    Antenna Diversity

  • RF Frequency Band

    V50: 174-216MHz

  • RF Bandwidth

    64 MHz

  • Frequency Step Size

    25 kHz

  • Max Operating Range

    330' (100.6m)

  • Max Transmitters per Band

    60

  • Sample Rate/Resolution

    48 kHz / 24-Bit

  • Latency

    < 2.9 ms

  • Dynamic Range

    120 dB

  • Encryption

    AES 256

  • Modulation

    Proprietary

Receiver

Jump to...
  • Receiver Type

    Tabletop

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    2x1/2 Wave External, Detachable (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1xXLR 3-Pin Male Balanced Output
    1x1/4" TRS Female Balanced Output

  • Gain Range

    -18 to +42 dB (1 dB Steps)

  • Pad

    30 dB

  • Audio Output Level

    XLR Output: +18 dBV (Line Level)
    XLR Output: -12 dBV (Mic Level)
    1/4" Output: +12 dBV (Instrument Level)

  • Phantom Power Protection

    On 1/4", XLR Output

  • Network I/O

    1xRJ45 (10/100 Mb/s)

  • Network Protocols

    DHCP, Manual IP

  • Impedance

    XLR Output: 100 Ohms (Balanced)
    1/4" Output: 100 Ohms (Balanced)
    1/4" Output: 50 Ohms (Unbalanced)

  • Adjacent Channel Isolation

    >70 dB

  • Spurious

    Rejection: >80 dB

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    12 VDC at 0.4 A, Center-Positive (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 150 mA

  • Display & Indicators

    1xBacklit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
    1xLED (Sync)
    1xLED (Peak)

  • Housing

    Metal

  • Operating Temperature

    0 to 122 Degree F (-18 to 50 Degree C)

  • Dimensions

    7.8 x 1.6 x 5.9" (197 x 41 x 151mm) (without Antennas)

  • Weight

    1.7lbs (777g) (without Antenna)

Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • Housing

    Aluminum

  • RF Output Power

    1 / 10 mW

  • Audio I/O

    1xTA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

  • Audio Input Level

    8.5 dBV / 7.5 V p-p

  • Gain Range

    0 to 21 dB (3 dB Steps)

  • Frequency Response

    20 Hz to 20 kHz

  • Sync Method

    IR

  • Antenna

    1x1/4 Wave

  • Power Requirements

    Battery

  • Display & Indicators

    1xBacklit LCD (Channel, Group, RF Output Power)

  • Battery

    2xAA (Included)
    1xShure SB900A (Not Included, Replaceable)

  • Approx. Battery Life

    9 Hours (Alkaline)

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions

    2.6 x 3.4 x 0.9" (65 x 86 x 23mm)

  • Weight

    4.9oz (138g) (without Batteries)

Microphone

Jump to...
  • Color

    Black

  • Form Factor

    Lavalier

  • Sound Field

    Mono

  • Polar Pattern

    Omnidirectional

  • Pad

    No

  • High-Pass Filter

    No

  • Frequency Range

    50 Hz to 20 kHz

  • Maximum SPL

    120 dB SPL

  • Sensitivity

    -38 dBV/Pa

  • Dynamic Range

    102 dB

  • Output Connector

    1 xTA4F/Mini-XLR 4-Pin Female

  • Cable Length

    3.94' (1.2m)

  • Power Sources

    Plug-In Power

  • Operating Voltage

    2 to 10 V

  • Operating Temperature

    0 to 135 Degree F (-18 to 57 Degree C)

  • Storage Temperature

    -20 to 165 Degree F (-28 to 73 Degree C)

  • Weight

    0.6oz (16g)

  • UPC Codes

    042406463096, 042406463348, 042406055338

About Shure QLXD14/93

Make your audio presentations, live performances, and broadcasts more professional with the QLXD14/93 Digital Wireless Microphone System with WL93 Lavalier Microphone, V50: 174-216MHz. This system combines the high-quality audio of the WL93 lavalier microphone with the advanced features of the QLXD14/93, offering a seamless setup and operation experience.

The QLXD1 Bodypack Transmitter, a key component of this system, delivers transparent 24-bit digital audio quality and efficient RF spectrum usage. It's perfect for wireless vocals and instruments in various settings, from presentation spaces and music venues to houses of worship. With its easy-to-use design, the QLXD1 syncs with a wireless receiver over IR at the push of a button, maintaining a clear, uninterrupted signal over its entire 100 m (330 ft.) range. Its all-metal construction ensures durability, while a wide selection of compatible microphone choices offer the legendary Shure sound signatures.

The QLXD4 Digital Wireless Receiver, another integral part of this system, combines professional features with a streamlined setup. It offers automatic channel scan, networked channel scan, digital predictive switching, and AES 256 encryption for secure transmission. With its transparent 24-bit digital audio quality and efficient RF spectrum usage, the QLXD4 ensures solid RF connection and secure wireless transmission. It also allows for remote monitoring and control from iOS devices via the ShurePlus Channels Mobile App.

The WL93 Miniature Lavalier Microphone, included in this system, provides full, clear sound in speech applications. Its omnidirectional, subminiature design makes it ideal for theater, television, broadcasting, video, film, and sound reinforcement. It features a smooth extended frequency response with a presence rise specially tailored for chest-worn microphone operation, and a controlled low-frequency rolloff to reduce low-frequency clothing and room noise.

In summary, the QLXD14/93 Digital Wireless Microphone System with WL93 Lavalier Microphone, V50: 174-216MHz is a comprehensive solution for all your audio needs, offering superior sound quality, secure transmission, and easy setup and operation.

Shure QLXD14/93 Features

  • 4-Pin male mini connector (TA4M) for QLXD1 Bodypack Transmitter
  • QLXD1 bodypack transmitter is ideal for wireless vocals and instruments
  • 24-Bit digital audio quality
  • Full, clear sound comparable to larger microphones
  • Backlit LCD with easy to navigate menu and controls
  • AES 256-bit encryption for secure transmission

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Shure wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with a reliable wireless range up to 330 feet using this lavalier mic.
  • The WL93 lavalier microphone delivers exceptional sound quality for interviews and film projects.
  • This digital wireless system operates in the V50 band (174-216MHz) minimizing interference issues.
  • Benefit from low latency (<2.9 ms) ensuring real-time audio sync for live streaming and broadcast.
  • Secure your audio with AES 256 encryption, offering top-tier privacy during sensitive recordings.

What's in the box:

  • QLXD4 Digital Wireless Receiver
  • QLXD1 Digital Wireless Bodypack Transmitter
  • WL93 Subminiature Omnidirectional Lavalier Microphone with 4' Cable and TA4F Connector (Black)
  • Mounting Hardware
  • Short Rackmount Bracket with Link Bar
  • Long Rackmount Bracket
  • 2x Antennas
  • 2x BNC Antenna Adapters
  • 2x BNC Antenna Cables (22")
  • Ethernet Cable (3')
  • PS24US Power Supply for Select Wireless Receivers
  • 2x AA Batteries
  • Shure 2 Year Limited Warranty
