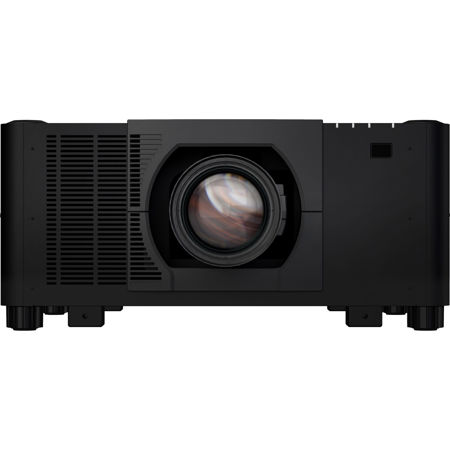

Sharp XP-A201U-B WUXGA RB-Laser LCD Projector, Black

SKU: SHXPA201UB MFR: XP-A201U-B
Earn VIP Reward Points

Key Features

  • Experience brilliant clarity with WUXGA 1920 x 1200 resolution, perfect for detailed presentations.
  • Enjoy vibrant, true-to-life colors with an impressive 3,000,000:1 contrast ratio for dynamic visuals.
  • Project with confidence in any environment thanks to 20,000 lumens of exceptional brightness.
  • Benefit from a long-lasting light source, offering 20,000 hours of reliable operation.
  • Connect effortlessly with versatile input terminals, including HDMI and HDBaseT for seamless integration.
  • Achieve the perfect display with motorized lens adjustments, including focus, zoom, and shift.
See More Product Details
Temporarily On Backorder?Expected Availability: 12/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sharp XP-A201U-B Specifications

Display

Display

Jump to...
  • Aspect Ratio

    16:10

  • Screen Resolution

    WUXGA 1920 x 1200

  • Maximum Resolution

    4K 4096 x 2160

  • Supported Resolutions

    80 to 500" (2 to 12.7m)

  • Brightness (typical)

    20000 Lumens

  • Brightness (maximum)

    21000 Center Lumens

  • Contrast Ratio (typical)

    3,000,000:1 (with Dynamic Contrast)

Synchronization Range

Jump to...
  • Horizontal (Analog/Digital)

    15Khz/24-153kHz

  • Vertical

    50-85Hz, 100Hz, 120Hz

Signal Compatibility/Connectivity

Jump to...
  • Supported Video Standards

    NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

  • SD/HD Video Signal Compatibility

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K

  • PC Signal Compatibility

    VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD

  • Macintosh Signal Compatibility

    Yes

  • Sync Compatibility

    Separate Sync / Composite Sync / Sync on G

  • External Control

    RS-232, IR, Wired Remote, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0)

  • Input Terminals

    RGB1(digital): HDMI (V2.0) w/HDCP (V2.2/1.4)
    RGB2(digital): HDMI (V2.0) w/HDCP (V2.2/1.4)
    RGB3(digital): HDBaseT w/HDCP (V2.2/1.4)
    RGB4(digital): 3G / HD/ SD SDI (SMPTE ST 424M / SMPTE 292M / SMPTE 259M)

  • Output Terminals

    Digital: HDBaseT w/HDCP (V2.2/1.4)
    Audio: Stereo Mini Jack
    Audio Out: Stereo Mini Jack

Power Consumption (typical)

Jump to...
  • On

    1530W / 1400W / 0.9W / 0.32W

  • Input Current

    11.9A - 7.8A

  • Power Requirements

    100-240V AC, 50/60 Hz

Environmental Conditions

Jump to...
  • Operating Temperature

    32-113 Degree F (0-45 Degree C)

  • Operating Humidity

    20 to 85% Humidity (Non-Condensing)

  • Operating Altitude

    11,975' (0 to 3650m)

  • Storage Temperature

    14-122 Degree F (-10 50 Degree C)

  • Storage Humidity

    20% - 80% (non-condensing)

  • Storage Altitude

    0-39,370' (0-12,000m) (above sea level)

Optical

Jump to...
  • Display Technology

    1.0" LCD w/ MLA

  • Light Output(Lumens)

    20,000 Lumens

  • Light Source Life

    20,000 hours

  • Throw Ratio

    0.53 to 0.65:1 Motorized Zoom Lens / 0.65 to 0.87:1 Motorized Zoom Lens / 0.86 to 1.25:1 Motorized Zoom Lens / 1.24 to 2.01:1 Motorized Zoom Lens / 1.98 to 3.95:1 Motorized Zoom Lens / 3.95 to 7.51:1 Motorized Zoom Lens

  • Projection Distance

    3.58 to 141' (1.09 to 43m)

  • Projector Angle

    5.8 to 18.1 Degree tele / 11.4 to 25.8 Degree wide

  • Lens

    Zoom: Motorized
    Focus: Motorized
    F number, fnumber: (NP51ZL/XP-51ZL) F=1.94 to 2.2, f= 12.0 to 14.8mm, (NP52ZL/XP-52ZL) F=1.84 to 2.25, f= 14.4 to 19.1mm, (NP53ZL/XP-53ZL) F=1.8 to 2.24, f= 19.0 to 27.6mm, (NP54ZL/XP-54ZL) F=1.8 to 2.24, f= 27.7 to 44.3mm, (NP55ZL/XP-55ZL) F=1.84 to 2.58, f= 43.8 to 86.0mm, (NP56ZL/XP-56ZL) F=1.85 to 2.41, f= 86.2 to 164.8mm

  • Keystone Correction

    +/- 40 Degree horizontal, +/- 30 Degree vertical

Mechanical

Jump to...
  • Installation Orientation

    Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

  • Fan Noise

    42 dB normal / 34 dB silent mode

  • Regulations

    USA UL60950-1: 2nd edition, UL 62368-1, 3rd Edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.62368-1-19, 3rd Edition, ICES-003 Issue 7(ANSI C63.4-2014)

Lens Adjustment Functions

Jump to...
  • Lens Adjustment Functions

    Motorized focus, zoom, horizontal/vertical shift, light shutter (dowser) / Range of shift is dependent on lens

Physical

Jump to...
  • Country of Origin

    China

  • Dimensions

    25.6 x 12.2 x 26" (650 x 311 x 661mm)

  • Weight

    85.3 lbs (38.7kg)

  • UPC Code

    074000703896

About Sharp XP-A201U-B

Sharp's A201U-B (black cabinet) is a 20,000-lumen (Center: 21,000lm) 4K Ready LCD RB laser projector with advanced professional installation features for higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals. HDBaseT Repeater allows cascading of the signal for edge-blending or stacking applications.

4K Ready
Display stunning 4K content using proprietary high performance video processing/scaling chip without the loss of critical details.

Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources

Lens Shift
Lens shift saves time and simplifies installations by adding flexibility to your projector placement.

Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.

Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.

Motorized Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.

Quick Startup and Quick Power-Off
Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.

Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.

NaViSet Administrator 2
Control, monitor and manage your display and projector settings in an all in one support system with NaViSet Administrator 2. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units.

Roll-Free Installation
Allows the projector to be rotated freely (360 Degree ) in order to point up or down depending on the installation requirements.

Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.

Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image

Sharp XP-A201U-B Features

  • 4K Ready - Display stunning 4K 60P content using Sharp's proprietary high performance video processing/scaling chip
  • Learning of basic control of competitors product reducing the need for reprogramming of a control system (call Sharp for complete list)
  • Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP and PJ link allow for complete interactivity and control
  • 20,000-lumen (Center: 21,000lm) brightness provides brilliant images in most high ambient lighting situations
  • ProAssist is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space
  • Motorized Lenses
  • Manual Keystone Correction
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • NaViSet Administrator 2
  • Quick power-off
  • Advanced AccuBlend
  • AutoSense

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience brilliant clarity with WUXGA 1920 x 1200 resolution, perfect for detailed presentations.
  • Enjoy vibrant, true-to-life colors with an impressive 3,000,000:1 contrast ratio for dynamic visuals.
  • Project with confidence in any environment thanks to 20,000 lumens of exceptional brightness.
  • Benefit from a long-lasting light source, offering 20,000 hours of reliable operation.
  • Connect effortlessly with versatile input terminals, including HDMI and HDBaseT for seamless integration.
  • Achieve the perfect display with motorized lens adjustments, including focus, zoom, and shift.

What's in the box:

  • Sharp XP-A201U-B WUXGA RB-Laser LCD Projector (Black)
  • Remote Control (RMT-PJ40)
  • Power Cord
  • Batteries
  • Important Info
  • Lens Cap
  • Security Sticker
  • Lens Anti-Theft Screw
  • Inlet Stopper
  • User Manual
  • Sharp 5 Year Limited Warranty
