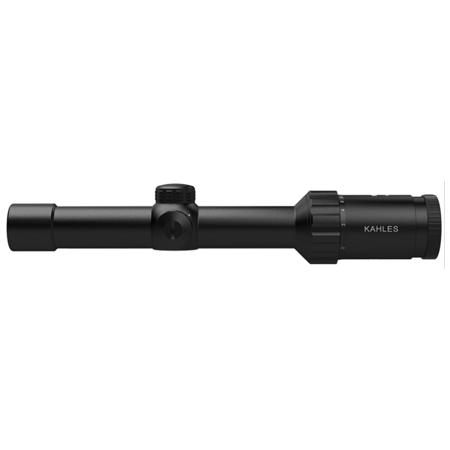

Kahles 1-8x24mm K18i Series Riflescope, Matte Black Finish with Illuminated Second Focal Plain IPSC Reticle, 30mm Center Tube

Optimized for IPSC and 3-Gun matches, the K18i with 8 x zoom features an ultra-wide field of view, specially designed, extra-bright illuminated reticles with unique MAX LIGHT function and an individually adjustable throw lever.

2nd focal plane
When the magnification is changed, the reticle remains the same size - although the size of the image changes, the size of the reticle does not. The subtensions change with the magnification.

Main tube 30 mm
The main tube has a diameter of 30 mm which is the standard for hunting scopes.

Adjustment direction CW
Elevation and windage are working clockwise (=cw).

MIL
Clicks in MRAD. 0.1 MRAD correspond to a shift of the point of impact of 1 cm/100 m.

Windage right
All scopes of the K-series have the parallax wheel integrated in the elevation. Corresponding to the standard the windage is on the right side of the tube. The illumination turret is on the left side of the tube.

MaxLight
Extra-bright day/night illumination in 2nd focal plane with MAX LIGHT function for extreme backlight situations.

Kahles K18i IPSC Recticle
We at KAHLES share the passion and professionalism of ambitious shooters. We passionately support their aspiration to continually enhance performance. We do this with intuitive simple and smart products, based on profound user insight. This is why we have developed a reticle, especially for IPSC matches. The KAHLES "IPSC" reticle has been designed together with some of the best IPSC shooters in the world, like Raine Peltokoski and Jarkko Laukia, both top shooters from Finland. We have asked Raine to explain the basic idea behind the simple reticle concept.
