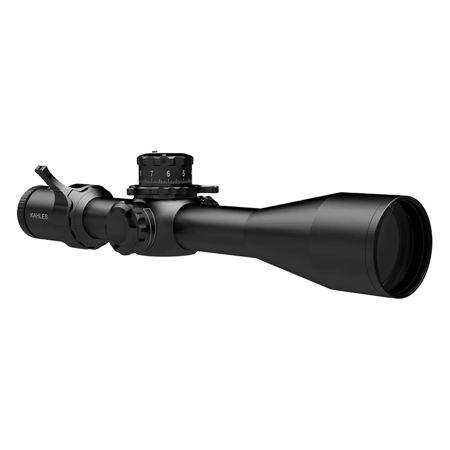

Swarovski Optik 5-25x56 K525i DLR Riflescope, Black with Illuminated First Focal Plane SKMR Reticle, CCW Left Windage, 34mm Tube

New K525i DLR - Dynamic Long Range
The K525i combines maximum optical performance and precision with unique handling and ergonomics. The DLR variant is optimized for the fast action nature of Dynamic Long Range competitions. It features extended field of view, easy to read clicks, extra long throw lever and parallax spinner.

Features

1st focal plane
When viewing the reticle in the first image plane, the reticle size also changes when the magnification is changed. The bar spacing and the coverage range remain the same.

Main tube 34 mm
The main tube has a diameter of 34 mm which is the standard for tactical scopes.

Adjustment direction CCW
Elevation and windage are working counter-clockwise (= ccw).

MIL
Clicks in MRAD. 0.1 MRAD correspond to a shift of the point of impact of 1 cm/100 m.

Windage left
Superior handling and ergonomics thanks to the unique arrangement of operating elements

Due to the unique arrangement, all operating elements can easily and comfortably be operated with the intuitively preferred hand. Without having to reach over the riflescope or having to move out of the shooting position, all relevant information is always in the visual field. All riflescopes of the K-series have the parallax wheel integrated into the elevation turret.

The patented central arrangement on top of the riflescope makes right and left-handed operation equally comfortable.

Ergonomically the windage is perfectly placed on the left side for right-handed shooters.

Zero Stop
The Zero Stop or mechanical stopping point is 3 or 4 clicks below the zero indicator and can be activated after having zeroed the scope. This feature allows to find intuitively and quickly the zero indicator (e.g. in bad light conditions) and to adapt perfectly to special circumstances, such as e.g. high temperatures or very close targets.

Twist Guard windage

Unique Twist Guard windage (patented)
The innovative TWIST GUARD windage with it's freely rotating end cover, reliably prevents accidental movement of the windage. This simple solution not only protects the windage from accidental movement, it also allows the shooter fast and unhindered handling of the windage without the need for cumbersome "locking" and "unlocking".

EasyRead elevation turret
The EasyRead elevation with only 100 clicks per rotation level enables particularly easy, fast and reliable reading of the clicks thanks to large click distances in combination with extra-large lettering.

Compared to KAHLES standard elevations with 140 or 160 clicks for fast clicking with long adjustment travel, the calculation of the clicks in the second plane of rotation is much easier.
