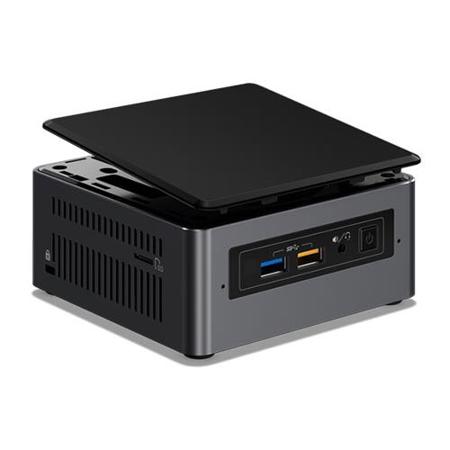

SimplyNUC NUC7i7BNH NUC Mini PC Kit, Tall Form Factor, Intel Core i7-7567U 3.5GHz, 8GB RAM, 256GB SSD, Windows 10 Pro

SKU: SI910XN14031

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SimplyNUC NUC7i7BNH Specifications

  • Processor

    Intel Core i7-7567U processor (3.5 GHz to 4.0GHz Turbo, Dual Core, Hyper-Thread, 4MB Cache, 28W TDP)

  • Processor Speed

    3.5GHz

  • System Memory

    8GB Two DDR4 SO-DIMM sockets (32GB Max), 1.2V

  • Graphics

    Intel Iris Plus Graphics 650
    One HDMI 2.0 port (4K at 60Hz)
    USB Type-C port with DisplayPort

  • Storage Drive

    256GB M.2 SATA SSD Pre-Installed

  • Storage Capabilities

    One M.2 socket supporting 22x80 M.2 SSDs, SATA or PCIe, 2TB SATA or PCIe SSD Max. Intel Optane Memory ready
    One SATA 3 port for connection to 2.5" HDD or SSD (up to 9.5mm) (4TB SSD or 2TB HDD Max)
    Micro SDXC slot with UHS-I support on the side

  • Peripheral Connectivity

    Intel Gigabit LAN
    Four Super-Speed USB 3.0 ports (two back panel ports and two front ports including one charging port)
    USB Type-C port providing USB 3.1 Gen 2 with data transfer up to 10 Gbps
    Two additional Hi-Speed USB 2.0 ports via internal header
    Intel Dual Band Wireless-AC 8265 (802.11ac), 2x2, up to 867 Mbps
    Dual Mode Bluetooth 4.2
    Thunderbolt 3 on USB Type-C port

  • System Bios

    64MB Flash EEPROM with Intel Platform Innovation Framework for EFI Plug and Play
    Advanced configuration and power interface V3.0b, SMBIOS2.5
    Intel Visual BIOS
    Intel Express BIOS update support

  • Audio

    Up to 7.1 surround audio via HDMI
    Headphone/microphone jack on the front panel
    Dual-array microphones on front

  • Hardware Management

    Voltage and temperature sensing
    ACPI-compliant power management control
    Processor fan speed control
    Fan sensor inputs used to monitor fan activity

  • Baseboard Power Requirements

    19V, 65W wall-mount AC-DC power adapter

  • Front Panel Header

    Reset, HDD LED, Power LEDs, power on/of

  • Expansion Capabilities

    Two USB 2.0 ports on two 1x4 internal headers for functional Lid support
    2.5in Drive Mount for SATA drive

  • Environment Operating Temp

    0 to 40 deg. C (32 to 104 deg. F)
    Non-condensing humidity

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Certification and Regulations

    Product Safety Regulations and Standards:
    IEC 60950-1
    UL 60950-1
    EN 60950-1
    CAN/CSA-C22.2 No. 60950-1

    EMC/RF Regulations and Standards (Class B):
    CISPR 32
    FCC CFR Title 47, Chapter I, Part 15, Subparts B, C, E
    ICES-003
    EN 55032
    EN 55024
    ETSI EN 300 328
    ETSI EN 301 489-1
    ETSI EN 301 489-17
    ETSI EN 301 893
    EN 62311
    AS/NZS 2772.2
    AS/NZS 4268
    VCCI V-2, V-3, V-4
    KN-32
    KN-24
    CNS 13438

  • Certification and Regulations (Cont.)

    Environmental Regulations:
    RoHS Directive 2011/65/EU
    WEEE Directive 2012/19/EU
    China RoHS

    Certified Operating Systems:
    Windows 10 64-bit (Pro & Home)
    Windows 10 IoT Enterprise - (64-bit only) CBB and LTSB
    Windows Server 2016
    Various Linux including: Ubuntu, Mint, openSUSE, etc.

  • Operating System

    Windows 10 Pro

  • Dimensions

    4.53 x 4.37 x 2.01" (11.51 x 11.10 x 5.11cm)

  • Weight

    2.5 lbs (1.13kg)

  • UPC Code

    680270788855

About SimplyNUC NUC7i7BNH

Do more, faster with your NUC7
Featuring 7th Gen Intel Core processors and support for up to 32 GB of high speed DDR4 RAM, you can get the memory you need to stream media, edit photos or create projects. With 4 USB 3.0 ports, you can use a USB keyboard, mouse and camera and still have room to charge your devices.

Watch, work & game in 4K
Intel Iris Plus Graphics provide a brilliant 4K experience for home or the office. You can watch theater-quality videos or grab a game controller and answer the call of duty. You also have the performance you need to create content without having to wait as your video and images render.

Cut cords, not performance
The Simply NUC7i7BNH comes with Intel 802.11ac wireless, called Gigabit wireless, for connectivity right out-of-the-box. This makes it simple to immediately access files in the cloud and with built-in Bluetooth 4.2, you can connect wireless peripherals like headsets and keyboards.

Who said small isn't powerful?
The Simply NUC7i7BNH is able to run multiple applications simultaneously including massive spreadsheets, documents, presentations and any other small home or office needs you might have as well as streaming video, showing off slideshows and even voice interaction using Cortana. All of this in a small 4" x 4" x 2" sized package which can mount behind your monitor or be unobtrusively located in plain sight due to its small size. And the active cooling system adjusts as needed to provide quiet during light loads where it isn't needed as much and barely audible cooling when more is needed.

The Simply NUC7i7BNH is built with the 7th generation Intel Core i7 processor to give you the performance to handle anything you throw at it. The Simply NUC7i7BNH is Intel Optane Memory ready which makes you ready for the future. By easily installing and pairing Intel Optane Memory with high capacity HDD storage media, you get amazing performance and responsiveness as well as shorter boot times, faster application launches and more responsive browsing. The Simply NUC7i7BNH has room for a 2TB HDD or 4TB SSD so you have the room to store and backup all your files.

New features let you use Windows 10 to its full potential
The Simply NUC7i7BNH has some cool new features including dual-array front microphones so you can take advantage of Cortana's capabilities if you include Windows 10 with no additional hardware needed. There's also a front power button and a multi-color LED ring so you can personalize the NUC with the look you want, along with 7.1 surround sound via the HDMI port to deeply immerse you in your content. You can also listen with headphones via the front microphone/audio jack. The choice is yours.

SimplyNUC NUC7i7BNH Features

  • 7th generation Intel Core i7-7567U processor
  • Intel Iris Plus Graphics 650
  • Two DDR4 SO-DIMM sockets (up to 32GB, 2133 MHz)
  • 8GB DDR4 (32GB Max)
  • 256GB SSD (2TB Max)
  • 1x SATA3 port for connection to 2.5" HDD or SSD
  • M.2 slot with flexible support for a 42 or 80 mm M.2 SSD
  • Intel Optane Memory Ready
  • Intel Dual Band Wireless-AC 8265 & Bluetooth 4.2
  • Back panel DC power connector (12V - 19V)
  • One full-size HDMI 2.0 display port supporting 8 channel audio (7.1 surround sound)
  • Intel Gigabit LAN
  • Two USB 3.0 ports on the back panel
  • Thunderbolt 3 port with support for USB 3.1 gen 2, DisplayPort 1.2 and 40 Gb/s Thunderbolt
  • Kensington lock support
  • Support for user-replaceable third-party lids
  • Micro SD card slot
  • Consumer infrared sensor
  • Two USB 3.0 ports (including one charging port) on the front panel
  • Front panel headphone/microphone jack
  • Front panel power button
  • Dual-array front microphones
  • Multi-color front panel LED ring

What's in the box:

  • SimplyNUC NUC7i7BNH NUC Mini PC Kit
  • AC Adapter
  • SimplyNUC 1 Year Limited Warranty
