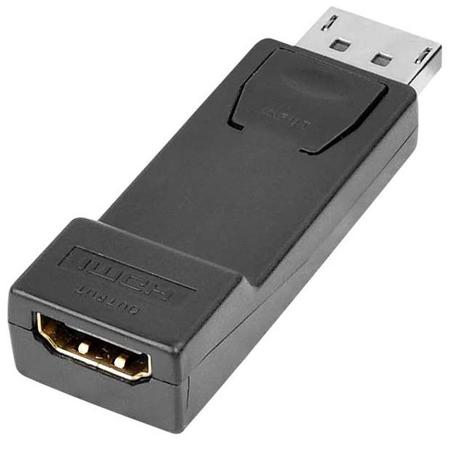

SIIG DisplayPort Male to HDMI Female Adapter, 1080p HDTV, UXGA PC Resolution Support, 1.62Gbps, 2.7Gbps Data Rate Support

SKU: SICBDP0811S1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

SIIG DisplayPort Male to HDMI Female Adapter Specifications

  • Connectors

    Latching 20-Pin DisplayPort, Male, Nickel plated with gold plated pins
    19-pin HDMI, Female, Nickel plated with gold plated pins

  • Video bandwidth

    Up to 2.25 Gbps

  • Supported data rates

    1.62 Gbps and 2.7 Gbps

  • Display modes

    PC: VGA, SVGA, XGA, SXGA and UXGA display modes
    HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p

  • Certifications/Standards

    RoHS

  • Dimensions (L x W x H)

    2.3 x 0.8 x 0.35" / 58.42 x 20.32 x 8.89mm

  • Weight

    0.5oz / 14.17g

  • UPC Code

    662774009872

About SIIG DisplayPort Male to HDMI Female Adapter

The SIIG DisplayPort Male to HDMI Female Adapter is designed for connecting DisplayPort equipped computers to HDMI-equipped monitors or televisions. This "Dongle" style adapter comes with latching 20-pin DisplayPort (male) to 19-pin HDMI (female) connectors to prevent accidental disconnection. It is the cost-effective solution to instantly adapt your DisplayPort systems to work with your HDMI monitors.

SIIG DisplayPort Male to HDMI Female Adapter Features

  • Dongle" style DisplayPort to HDMI converter
  • Compliant with DisplayPort 1.1 (both 1.62 and 2.7 Gbps) specifications
  • Supports digital audio (system's DisplayPort must support audio)
  • Supports HDCP (High-bandwidth Digital Content Protection) on HDCP compliant HDMI displays
  • Latching DisplayPort connector to prevent accidental disconnection

Key Features

  • Dongle" style DisplayPort to HDMI converter
  • Supports digital audio (system's DisplayPort must support audio)
  • Latching DisplayPort connector to prevent accidental disconnection

What's in the box:

  • SIIG DisplayPort Male to HDMI Female Adapter
  • SIIG Lifetime Limited Warranty
