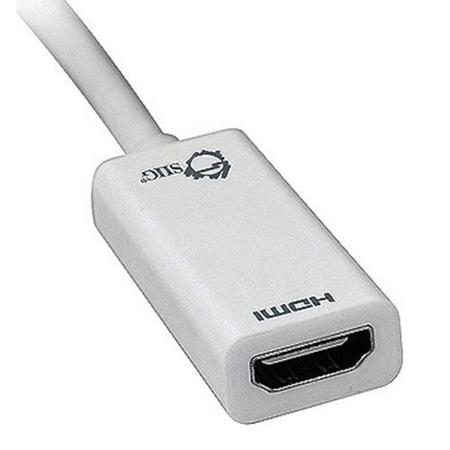

SIIG 20-Pin Mini DisplayPort Male to 19-Pin HDMI Female Adapter, White
See all SIIG items

SIIG 20-Pin Mini DisplayPort Male to 19-Pin HDMI Female Adapter, 1080p HDTV, UXGA PC Resolution Support, 1.62Gbps, 2.7Gbps Data Rate Support, White

SKU: SICBDP0T11S1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

SIIG 20-Pin Mini DisplayPort Male to 19-Pin HDMI Female Adapter, White Specifications

  • Chipset

    PTN3361B

  • Supported data rates

    DisplayPort: 1.62 and 2.7Gbps
    HDMI: Up to 2.25Gbps

  • Display modes

    PC: VGA, SVGA, XGA, SXGA and UXGA display modes
    HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p

  • Interfaces/Ports

    20-pin, Mini DisplayPort, Male, Input
    19-pin, HDMI Type A, Female, Output

  • Lane operation

    Configurable 1 or 2

  • Down Spread Spectrum (SSC) Support

    Yes

  • Material

    Plastic

  • Certifications/Standards

    FCC, CE, RoHS

  • Operating temperature

    32 to 140 deg. F (0 to 60 deg. C)

  • Storage temperature

    14 to 158 deg. F (-10 to 70 deg. C)

  • Humidity

    < 85% non-condensing

  • Overall length

    8.85" +/- 0.6" (224.79mm +/- 15.24mm)

  • Dimensions (L x W x H)

    Mini DisplayPort connector housing: 1.06 x 0.43 x 0.35" / 26.92 x 10.92 x 8.89mm
    HDMI connector housing: 1.77 x 0.83 x 0.59" / 44.96 x 21.08 x 14.99mm

  • Weight

    0.04lbs / 0.02kg

  • UPC Code

    662774020327

About SIIG 20-Pin Mini DisplayPort Male to 19-Pin HDMI Female Adapter, White

The SIIG White Adapter is designed to convert your mini DisplayPort output to a HDMI port. It allows you to connect your mini DisplayPort-equipped notebook or desktop system to a HDMI-enabled television and monitor, providing optimal video quality. It is the convenient and cost-effective solution to enable the latest mini DisplayPort-equipped computer to work with a HDMI display for high definition video quality.

SIIG 20-Pin Mini DisplayPort Male to 19-Pin HDMI Female Adapter, White Features

  • Compatible with Intel Thunderbolt
  • Connect the latest mini DisplayPort equipped computer systems to HDMI displays, providing optimal video quality
  • Compliant with DisplayPort standards, supporting 1.62Gbps and 2.7Gbps
  • Compliant with HDMI standards, supporting up to 2.25Gbps
  • Supports multi-channel digital audio
  • Supports 1080p and PC graphics resolution up to 1920x1200
  • Supports full DisplayPort link training
  • Supports EDID and MCCS pass-through
  • Compact design with 8KV ESD protection
  • supports multi-channel digital audio

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supports 1080p and PC graphics resolution up to 1920x1200
  • Supports full DisplayPort link training
  • Supports EDID and MCCS pass-through
  • Supports multi-channel digital audio

What's in the box:

  • SIIG 20-Pin Mini DisplayPort Male to 19-Pin HDMI Female Adapter
  • SIIG 3 Year Limited Warranty
