SIIG HDMI Extender Over Single CAT5/6 with 3DTV Support, Black
See all SIIG items

SIIG HDMI Extender Over Single CAT5/6 with 3DTV Support, Extends up to 200 Feet, Black

SKU: SICEH20L11S1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG HDMI Extender Over Single CAT5/6 with 3DTV Support, Black Specifications

  • Video bandwidth

    Single-link 225MHz (6.75Gb/s)

  • Input TMDS signal

    1.2V (peak-to-peak)

  • Input DDC signal

    5V (peak-to-peak, TTL)

  • Power consumption

    1 Watt

  • Transmission

    720p/1080i (HD @ 24-bit): up to 200 ft (CAT6)
    1080p (full HD @ 24-bit): up to 130 ft (CAT6)
    1080p (full HD @ 36-bit): up to 65 ft (CAT6)

  • Transmitting unit-Input

    1x HDMI (Type A, 19-pin female)

  • Transmitting unit-Output

    1x RJ45 (WE/SS 8P8C with 2 LED indicators)

  • Receiving unit-Input

    1x RJ45 (WE/SS 8P8C with 2 LED indicators)

  • Receiving unit-Output

    1x HDMI (Type A, 19-pin female)

  • Operating temperature

    0 to 40 degrees C (32 to 104 degrees F)

  • Storage temperature

    -20 to 60 degrees C (-4 to 140 degrees F)

  • Relative humidity

    20% to 90% RH (non-condensing)

  • Power supply

    Input: 100-240VAC
    Output: 5V DC, 2A

  • Compliance

    HDMI 1.4a
    HDCP 1.1

  • Certifications

    FCC
    CE
    WEEE
    RoHS

  • Dimensions (W x H x D)

    Transmitting unit: 3.75 x 3.60 x 1.10" / 9.52 x 9.14 x 2.79cm
    Receiving unit: 3.75 x 3.60 x 1.10" / 9.52 x 9.14 x 2.79cm

  • Weight

    Transmitting unit: 0.49 lbs / 0.22kg
    Receiving unit: 0.49 lbs / 0.22kg

  • UPC Code

    662774013558

About SIIG HDMI Extender Over Single CAT5/6 with 3DTV Support, Black

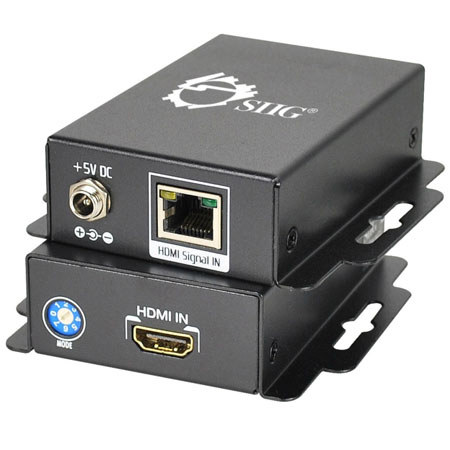

The SIIG HDMI Extender over Single CAT5/6 with 3DTV Support is designed to extend audio/video transmissions from HDMI source to HDMI display device over a single CAT5/5e/6 cable. It extends transmission distances up to 60m (200ft) @1080i, 40m (130ft) @1080p/24-bit and 20m (65ft) @ 1080p/36-bit HDTV formats. This HDMI extender features adjustable 8-level equalization control to minimize cable skew, pure uncompressed 7.1 channel or stereo digital audio and DTS-HD Master Audio and Dolby TrueHD Audio support.

The HDMI Extender over Single CAT5/6 with 3DTV Support is a solution enabling you to transmit high quality video and audio signals from DVD players, Blu-ray Disc player, PS3, PC and many more to a distant display device. It is HDMI 1.4a, HDCP 1.1 and RoHS compliant, FCC and CE approved.

SIIG HDMI Extender Over Single CAT5/6 with 3DTV Support, Black Features

  • Extends HDMI signals up to 200ft over one CAT5/5e/6 cable
  • Supports HDMI with 3D TV
  • Supports DTS-HD and Dolby True HD high bit rate audio support
  • HDMI and HDCP compliant
  • 8-level equalization control to adjust cable skew
  • Allows cascading
  • Metal housing with wall mount design
  • Supports uncompressed 7.1-channel or stereo digital audio

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supports HDMI with 3D TV
  • HDMI and HDCP compliant
  • 8-level equalization control to adjust cable skew
  • Allows cascading
  • Metal housing with wall mount design

What's in the box:

  • SIIG HDMI Extender over Single CAT5/6 with 3DTV Support (TX & RX units)
  • Power Adapter
  • Installation Kit
  • User's Manual
  • SIIG 3 Year Limited Warranty
