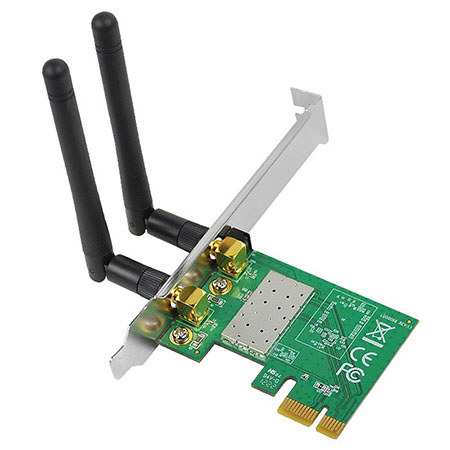

SIIG Dual profile Wireless-N PCI Express Wi-Fi Adapter
See all SIIG items

SIIG Dual profile Wireless-N PCI Express Wi-Fi Adapter, Up to 300Mbps Data Transfer Rate, 2.4GHz Frequency Band

SKU: SICNWR0811S1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG Dual profile Wireless-N PCI Express Wi-Fi Adapter Specifications

  • Chipset

    Ralink RT5392

  • Antennas configuration

    2-Transmitter & 2-Receiver

  • Bandwidth

    20MHz / 40MHz

  • Network modes support

    Infrastructure / Ad-Hoc / Soft AP

  • Form factor

    Full profile / Low profile

  • Media Access Control

    CSMA / CA

  • Frequency Band

    2.400GHz - 2.484GHz

  • Security

    64-bit / 128-bit WEP
    WPA (TKIP with IEEE 802.1x)
    WPA2 (AES with IEEE 802.1x)

  • Data Rate

    802.11b: 11,5.5, 2 and 1Mb/s
    802.11g: 54,48,36,24,18,12, 9 and 6Mb/s; Auto-fall back
    802.11n (20MHz channel): up to 144Mb/s
    802.11n (40MHz channel): up to 300Mb/s

  • Interface

    PCI Express, 32-bit

  • Wireless security

    64/128bit WEP, WPA, WPA2

  • Connector

    2-RP-SMA female

  • Certifications/Standards

    FCC, CE, RoHS

  • System

    Desktop PC with an available PCIe slot
    Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2

  • Operating temperature

    32 to 131 deg. F (0 to 55 deg. C)

  • Storage temperature

    -4 to 158 deg. F (-20 to 70 deg. C)

  • Humidity

    < 80% RH (non-condensing)

  • Dimensions (L x W x H)

    3.07 x 4.72 x 0.79" / 77.98 x 119.89 x 20.07mm

  • Weight

    1.44 oz (40.8g)

  • UPC Code

    662774016825

About SIIG Dual profile Wireless-N PCI Express Wi-Fi Adapter

The SIIG Dual Profile Wireless-N PCI Express Wi-Fi Adapter adds high speed wireless network connectivity to any PCI Express enabled PC. This PCI Express wireless card provides reliable 300Mb/s data transfer rate and is easy to install. Stream media, download files, play games and talk online when connected to a Wireless-N router. It complies with 2.4GHz IEEE 802.11 b/g/n standards, is FCC and CE regulatory approved and RoHS compliant. It supports Wi-Fi protected setup (WPS) with any Windows operating systems.

SIIG Dual profile Wireless-N PCI Express Wi-Fi Adapter Features

  • Complies with 2.4GHz IEEE 802.11 b/g/n standards
  • 2T2R with 300Mb/s data rate for both transmitting and receiving
  • Installs in standard height or low profile chassis with included brackets
  • Supports QoS-WMM, WMM-PS
  • Supports WPS (Wi-Fi protected setup)
  • Supports Multiple BSSID
  • Legacy and high throughput modes
  • Two detachable 2dBi antennas

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Complies with 2.4GHz IEEE 802.11 b/g/n standards
  • 2T2R with 300Mb/s data rate
  • Installs in standard height or low profile chassis with included brackets
  • Supports QoS-WMM, WMM-PS
  • Supports WPS (Wi-Fi protected setup)
  • Supports Multiple BSSID

What's in the box:

  • SIIG Dual profile Wireless-N PCI Express Wi-Fi Adapter
  • Spare Low Profile Bracket
  • 2x Antennas
  • Software CD
  • User's Manual
  • SIIG 5 Year Limited Warranty
