Sirchie Forensic Light Source Kit Specifications

  • Sliding Filter Arrays

    FAL201F: 365nm, 415nm, 450nm, white light
    FAL202F: 470nm, 505nm, 530nm, white light

  • Light Source

    35-watt, high intensity Xenon lamp/igniter
    Approx. 3000 hrs. of operation
    Color temp.: -4200O K. Lamp
    Output: 3200 lumens

  • Cooling

    12V DC 0.15 Amp 11CFM Fan

  • CGA6GF30 Battery Charger

    Seven hour charging time
    Input: 110V AC, 60 Hz
    Output: 12V DC 1.25 AMP
    Auto. voltage regulation, monitors battery condition

  • PA6GF30 Battery

    Two Sealed, Lead-Acid, 6V DC, 8Ah in series
    Approx. 120 min. continuous operation from full charge

  • Dimensions

    Light Source: 18.75x4.5x7.25" / 47.6x11.43x18.4cm
    CGA6GF30 Battery Charger: 9x4.5x3.375" / 22.86x11.43x8.57cm

  • Weight

    With Battery and Filter: 5.9lbs / 2.7kg
    CGA6GF30 Battery Charger: 3.5lbs (1.6kg)
    PA6GF30 Battery: 6.1lbs / 2.8kg

About Sirchie Forensic Light Source Kit

The Sirchie FAL3000 is a complete kit including all of the equipment needed for an intense, thorough search for evidence at the crime scene or in the laboratory. Physical evidence is a crucial part of any criminal investigation and the FAL3000 Forensic Alternative Light Source simplifies locating items of forensic interest. This compact, self-contained light source offers unlimited freedom to move about the crime scene. The instrument may be hand-held in two different positions or mounted on a standard photographic-type tripod. Battery operation permits searching a multitude of surfaces, even when working in the tightest situations and especially when searching for microparticle, physiological or latent print evidence.

The FAL300's high-intensity discharge xenon lamp in conjunction with a series of six bandpass filters (365-530nm), provides all of the lights needed to identify many forms of physical evidence: semen, saliva, other materials with natural fluorescence and fluorescent powders and dyes. High intensity white light is available for thoroughly scanning the crime scene. The filters are contained in two sliding filter arrays for quick selection of individual wavelengths and changeover from one array to the other. Detents are machined into each array providing positive positioning. Each filter is labeled for easy filter selection.

The intense light source and low-loss filters simplify photography when the camera is equipped with the appropriate barrier filter. The FAL3000 kit is supplied with three 52mm barrier filters: Orange, Yellow and Red. The FAL300 gives superior high intensity performance, lasting up to 2 hours of constant use on one battery charge. The battery pack is easily charged and can be left on the charger without any risk of overcharging. An optional AC conversion kit is available to use the FAL300 without the battery pack.

What's in the box:

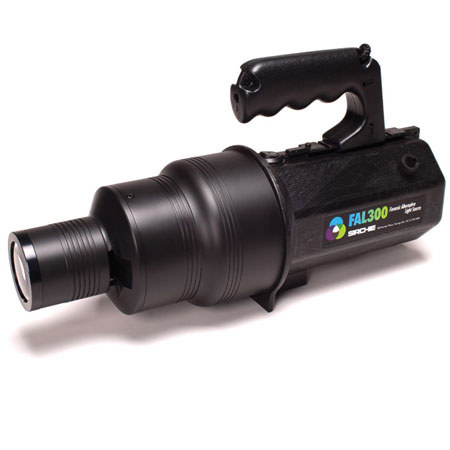

  • Sirchie FAL300 Lamp Assembly with High-Intensity Xenon Lamp
  • 2 x FAL309 Battery Packs
  • FAL201F Sliding Filter Array (365nm/415nm/450nm/White)
  • FAL202F Sliding Filter Array (470nm/505nm/530nm/White)
  • 4 x Barrier Filter Goggles (Yellow/Orange/Red/Clear-UV)
  • 3 x 52mm Camera Lens Barrier Filters (Orange/Red/Yellow)
  • 022-0139 Battery Charger
  • BM6009 Heavy Duty Tripod
  • Durable Molded Carrying Case with Precut Foam Inserts
  • Sirchie Warranty
