Sirchie 110V AC Dual Temperature Cyanoacrylate Laboratory Fuming Chamber

SKU: SIFR200DT MFR: FR200DT
Earn VIP Reward Points

Key Features

  • Enhance latent fingerprint development with this reliable fuming chamber for evidence.
  • Dual temperature settings ensure optimal cyanoacrylate fuming for various evidence types.
  • Achieve consistent, repeatable results in latent print development with precise controls.
  • This durable fuming chamber offers a safe, controlled environment for forensic processing.
  • Maximize evidence integrity using included supplies for pre and post-treatment procedures.
  • Ensure compliance with forensic standards using controlled cyanoacrylate vapor application.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sirchie Fuming Chamber Specifications

  • AC Power (nominal)

    (110-120V AC +/-10%), 5.8A, 50-60 Hz, 670 watts

  • Voltage Fluctuation

    Tolerance of up to +/-10% of specified nominal operating voltage

  • Transient Overvoltage

    Tolerance of up to "Overvoltage Category II"
    FR200DT: 110/120v mains 1500v

  • Power cord, 120V

    13A/125V, 5-15P Plug/IEC320-C13 Receptacle, 16AWG, 6'-7" (2M)

  • Power cord, 220V

    10A/250V, CEE7/7(M) Plug/IEC320-C13 Receptacle, 14AWG, 8' / 2.44m

  • AC Receptacle

    IEC320 15A, 250V receptacle w integrated fuse holder (tool required for fuse access)

  • Fusing

    6.3A, 250V Slo-Blo, 5mmX20mm cartridge

  • Heaters

    Two 300 watt (nominal) disc heaters, with independent HI-TEMP or STANDARD heater operation via front panel power switches

  • Control

    Two thermostat switches located on bottom of each heater disc.
    Active when front panel power switches are ON (HI-TEMP or STANDARD position)
    STANDARD thermostat supplies power to heater at temps below (Approx.) 257 deg. F (118 deg. C) at heater surface and removes power at temps above that threshold.
    HI-TEMP thermostat supplies power to heater at temps (Approx.) 450 deg. F (232 deg. C) at heater surface and removes power at temps above that threshold.

  • Indicators

    Amber lamps on front panel illuminate when each heater is switched ON (HI-TEMP or STANDARD setting)
    Lamps are not illuminated when the switch is OFF

  • Equipment Volume

    4.0'3 / 1.22m3

  • Construction

    Vinyl clad aluminum alloy with steel screw fasteners

  • Ports

    Two 1-in.(2.54 cm) dia. input/exhaust ports with plastic sealing caps

  • Operating temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Operating relative humidity

    20% - 80%, non-condensing

  • Altitude range

    Sea level: 0 ' /0m to 6562' / 2000.12m

  • Pollution Degree 2

    Only non-conductive pollution occurs except that occasionally a temporary conductivity caused by condensation is expected

  • Dimensions (L x W x H)

    30.5 x 12.0 x 22.0" (774.70 x 304.80 x 558.80mm)

  • Weight

    Unloaded: 22.5lbs (10.21kg)
    Max Load: 18.0lbs (8.16kg)
    with Max Load: 40.5lbs (18.37kg)

About Sirchie Fuming Chamber

Make your forensic investigations more efficient with SIRCHIE's advanced Dual Temperature Cyanoacrylate Fuming Chamber. This state-of-the-art laboratory equipment, designed for high-volume processing, boasts a spacious 4.0 cubic-foot volume, allowing for simultaneous processing of numerous items.

The chamber's dual heating elements offer versatility, with the ability to switch independently between Standard (230 degrees F) for fuming with traditional cyanoacrylate liquid, and Hi-Temp (500 degrees F) for compatibility with SIRCHIE's innovative CyanoPowder Crystals. This flexibility ensures optimal results for various forensic applications.

Enhancing visibility, the chamber features a clear, polycarbonate front door panel, enabling close monitoring of latent print development. The built-in control print hanger simplifies the process by eliminating guesswork associated with fuming time.

The chamber is equipped with two inlet ports, designed to accommodate the Sirchie Cyanowand, Portable Humidifier, and DeFumigator, further enhancing its functionality. To maintain the clarity of the polycarbonate surfaces and prevent cyanoacrylate build-up, CyanoBloc Treatment Pads are supplied for use before the initial operation.

The chamber is designed for use with CyanoPowder, a revolutionary crystalline formulation that addresses the shelf life limitations of standard liquid cyanoacrylate. This unique powder formulation remains usable for years, reducing waste and offering identical, if not superior, performance, making this fuming chamber an essential tool for modern forensic laboratories.

Sirchie Fuming Chamber Features

  • Advanced Dual Temperature Cyanoacrylate Fuming Chamber for efficient forensic investigations
  • Spacious 4.0 cubic-foot volume for high-volume, simultaneous item processing
  • Dual heating elements with Standard and Hi-Temp settings for versatile forensic applications
  • Clear, polycarbonate front door panel for close monitoring of latent print development
  • Two inlet ports compatible with Sirchie Cyanowand, Portable Humidifier, and DeFumigator
  • Use of innovative CyanoPowder Crystals for extended shelf life and superior performance

Warranty Information

This product has a limited warranty of 3 months.

Key Features

  • Enhance latent fingerprint development with this reliable fuming chamber for evidence.
  • Dual temperature settings ensure optimal cyanoacrylate fuming for various evidence types.
  • Achieve consistent, repeatable results in latent print development with precise controls.
  • This durable fuming chamber offers a safe, controlled environment for forensic processing.
  • Maximize evidence integrity using included supplies for pre and post-treatment procedures.
  • Ensure compliance with forensic standards using controlled cyanoacrylate vapor application.

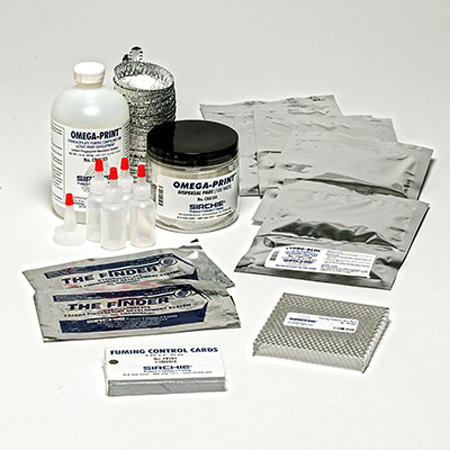

What's in the box:

  • Sirchie 6x 1.5g CYP15 CyanoPowder
  • CNA103 Omega-Print fingerprint Developer (16 oz)
  • 25x CNA106 Omega-Print Disposable Fuming Trays
  • 100x CNA104 Omega-Print Dispersal Pads
  • 2x CNA20001 FINDER Cyanoacrylate Packets
  • CNA110 Cyano-Bloc Pre-treatment and Post-treatment Pads
  • 50x FR201 Fuming Control Cards
  • FR1002 Fuming Platform Wire Mesh
  • 4x Evidence Support Rods
  • 16x FR1006 Evidence Clips
  • Sirchie 1 Year Warranty
