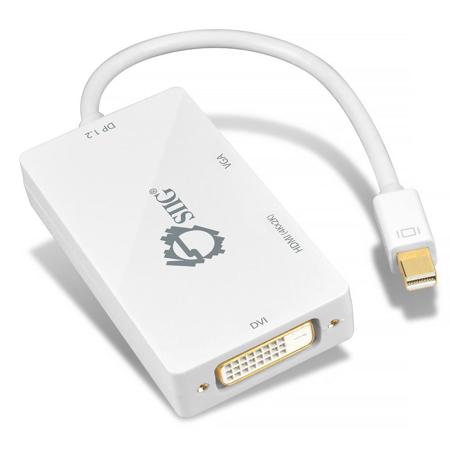

SIIG Mini DisplayPort 1.2 to 4K HDMI/DVI/VGA Conversion Adapter, White
See all SIIG items

SIIG Mini DisplayPort 1.2 to 4K HDMI/DVI/VGA Conversion Adapter, White

SKU: SIICBDP1H11S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SIIG Mini DisplayPort 1.2 to 4K HDMI/DVI/VGA Conversion Adapter, White Specifications

  • Chipset

    ANX9833 + PS8339B

  • Supports

    Supports Mini DisplayPort v1.2 Dual-mode input
    Supports DisplayPort v1.2, for 1.62 Gbps, 2.7 Gbps, 5.4 Gbps link rates

  • Resolution

    HDMI: Up to 4Kx2K at 30Hz
    DVI: Up to 1920x1080 at 60Hz
    VGA: Up to 2048x1152 at 60Hz

  • Connectors

    1, 20-pin, Mini DisplayPort, Male, Input
    1, 19-pin, HDMI, Female, Output
    1, 25-pin, DVI-D, Female, Output
    1, 15-pin, D-sub VGA, Female, Output

  • Material

    Plastic

  • Length (embedded cable)

    10" (25.40cm) (2550 +/- 20mm)

  • Operating temperature

    32 to 113 deg. F (0 to 45 deg. C)

  • Storage temperature

    14 to 158 deg. F (-10 to 70 deg. C)

  • Relative humidity

    < 85% non-condensing

  • Certifications/Standards

    FCC, CE, RoHS

  • Requirements

    Computer with an available Mini DisplayPort 1.2 output (Mini DisplayPort converter/adapters not supported)

  • Dimensions (WxHxD)

    3.44 x 1.77 x 0.59" (8.74 x 4.50 x 1.50cm)

  • Weight

    0.11 lbs (0.05kg)

  • UPC Code

    662774021850

About SIIG Mini DisplayPort 1.2 to 4K HDMI/DVI/VGA Conversion Adapter, White

• Simply connects the Mini DisplayPort output of tablet or laptop computer to either a HDMI, DVI or VGA equipped display device
• Works with one connected output at a time
• 3-in-1 converter solution expands the compatibility between Mini DisplayPort and most mainstream displays without requiring an additional adapter
• Supports DisplayPort 1.2 protocols includes 48-bit color depth, high bite rate (up to 21.6 Gbps) and maximum video resolution up to 4Kx2K (30Hz) on HDMI output
• Compact and lightweight design makes it a perfect solution to use at home, in the office or on the road
• No driver installation required
• Supports audio out through HDMI connection only
• Bus-powered, no external power source required

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SIIG Mini DisplayPort 1.2 to 4K HDMI/DVI/VGA Conversion Adapter
  • User Reference Guide
  • SIIG 2 Year Limited Warranty
