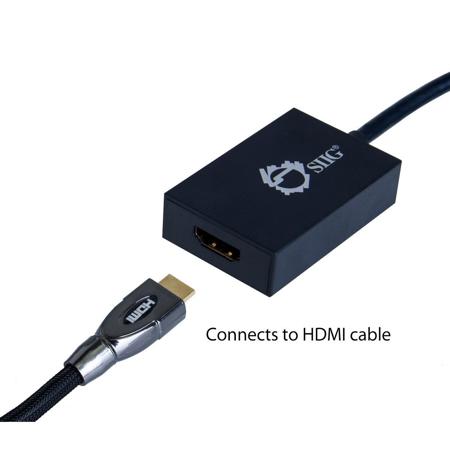

SIIG DisplayPort 1.2 to HDMI 4Kx2K 60Hz Active Adapter

SIIG DisplayPort 1.2 to HDMI 4Kx2K 60Hz Active Adapter

SKU: SIICBDP1M11S
Be the first to review this item

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SIIG DisplayPort 1.2 to HDMI 4Kx2K 60Hz Active Adapter Specifications

  • Chipset

    PS176

  • Adapter type

    Active

  • HDMI 2.0 compatible

    Yes

  • HDCP 2.2 compatible

    Yes

  • DisplayPort 1.2 compatible

    Yes

  • Display modes

    PC: VGA, SVGA, XGA, SXGA, UXGA, WUXGA and UHD
    HDTV: 480i, 576i, 480p, 576p, 1080i, 1080p and 2160p

  • Audio

    8-channel surround sound

  • Video bandwidth

    Up to 18Gbps

  • Connectors

    20-Pin DisplayPort (male) to 19-pin HDMI (female)
    Gold plated Connector

  • Housing material

    Plastic

  • Cable length

    5.9" (14.99cm)

  • Operating temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage temperature

    14 to 122 deg. F (-10 to 50 deg. C)

  • Humidity

    < 85% RH (non-condensing)

  • Certifications/Standards

    FCC, CE, RoHS

  • Requirements

    Native DisplayPort output with embedded audio

  • Dimensions (WxHxD)

    1.38 x 2.09 x 0.55" (3.51 x 5.31 x 1.40cm)

  • Weight

    1.12 oz (31.75g)

Related Articles & Videos

About SIIG DisplayPort 1.2 to HDMI 4Kx2K 60Hz Active Adapter

• Transmits high definition video resolutions up to 4Kx2K/60Hz with 24-bit color and up to 8-channel audio
• Supports RGB up to 12-bit and YCbCr in 4:4:4/4:2:2 pixel formats
• Supports AMD Eyefinity with SLS (Single Large Surface) video wall mode (requires connecting multiple adapters) allows combining multiple monitors into one large display for panoramic display
• Compatible with both HDCP 1.4 and HDCP 2.2 content protection
• Plug-n-play with no driver installation or external power source required
• Latching DisplayPort connector provides secure connection
• Compact and lightweight design offers great portability while on-the-go

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SIIG DisplayPort 1.2 to HDMI 4Kx2K 60Hz Active Adapter
  • SIIG 2 Year Limited Warranty
