SIIG DisplayPort 1.2 to 3-Port HDMI MST Splitter
See all SIIG items

SIIG DisplayPort 1.2 to 3-Port HDMI MST Splitter

SKU: SIICEDP0C12S

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

SIIG Splitter Specifications

  • System Requirements

    Desktop or laptop computer with an available DisplayPort 1.2 with Multi-Stream Transport (MST) output connector
    AMD Eyefinity, NVIDIA Surround technology, or Intel with DisplayPort 1.2 with MST graphics adapters

  • Chipset

    STDP4320

  • Maximum resolution

    3840x2160 at 30Hz (4K)

  • Compliant with

    DisplayPort 1.2a Specification

  • Display Modes

    Mirror, Extend, Video Wall (e.g., 2x2, Panoramic)

  • Total Bandwidth 21.6Gbps (100%)

    3840x2160 at 30Hz (40%); 2560x1600 at 60Hz (38%); 2560x1440 at 60Hz (35%); 1920x1200 at 60Hz (30%); 1920x1080 at 60Hz (22%)

  • Housing

    Aluminum

  • Embedded DisplayPort cable length

    7.9" (20.07cm)

  • Connector

    1x 20-pin, DisplayPort, Male, Input
    3x 19-pin, HDMI, Type A, Female, Output
    1x 5-pin, Micro USB, Female, Input (for power only)

  • Micro USB Power Cable

    Micro USB (male) to USB Type-A (male)
    Length: 3.3' (1.01m)

  • Operating temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage temperature

    -4 to 158 deg. F (-20 to 70 deg. C)

  • Relative humidity

    5% to 90% RH (non-condensing)

  • Certifications/Standards

    FCC, CE, RoHS

  • Dimensions (WxHxD)

    4.14 x 2.60 x 0.67" (10.52 x 6.60 x 1.70cm)

  • Weight

    0.27 lbs (0.12kg)

  • UPC Code

    662774027449

About SIIG Splitter

The DisplayPort 1.2 to 3-Port HDMI MST Splitter boosts your productivity by allowing you to connect three HDMI displays to your DisplayPort Multi-Stream Transport (MST) enabled computer.

SIIG Splitter Features

  • Boost your productivity by connecting three HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology

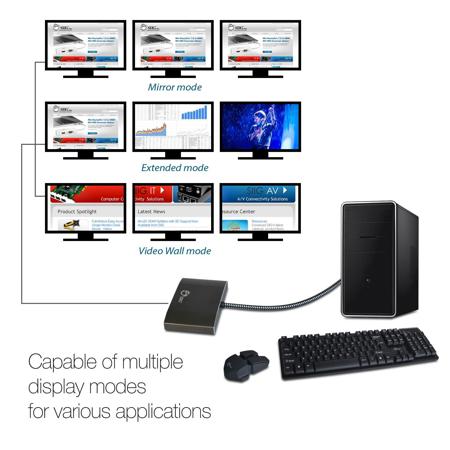

  • Provides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode with individual content on each display and Video Wall mode which combines multiple monitors to use as one large display
  • Supports UHD video resolutions up to 3840x2160 at 30Hz (4K) and 7.1-ch surround audio
  • Compatible with DisplayPort 1.2 MST graphics adapters such as AMD Eyefinity, NVIDIA Surround technology, or various Intel Graphics
  • Plug-n-play, hassle-free set up without complicated hardware or driver installation
  • Premium aluminum housing reduces outside interference and provides optimal video quality
  • Built-in woven braided DisplayPort cable for enhanced durability

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SIIG DisplayPort 1.2 to 3-Port HDMI MST Splitter
  • Micro USB Power Cable
  • User Reference Guide
  • SIIG 2 Year Limited Warranty
