SIIG Converter Specifications

  • Requirements

    Desktop or laptop computer with an available HDMI and USB port
    Note: HDMI 1.4 recommended

  • Chipset

    STDP2600

  • Compliant with

    DisplayPort 1.2a specifications for 1, 2 or 4 lanes
    HDMI 1.4 specification

  • Supports

    5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) link rates

  • Video Bandwidth

    Up to 21.6Gbps

  • PC display modes

    VGA, SVGA, XGA, SXGA and UXGA

  • HDTV

    480p, 576p, 720p, 1080i, 1080p and 4Kx2K at 30Hz

  • Video resolution

    800x600, 1024x768, 1280x1024, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080 at 60Hz, 1920x1200 at 60Hz, 2048x1152 at 60Hz, 2560x1440 at 60Hz, 2560x1600 at 60Hz, 3840x2160 at 30Hz

  • Housing

    ABS

  • Connector

    1x 19-pin, HDMI, Male, Input
    1x 20-pin, DisplayPort, Female, Output
    1x 4-pin, USB Type-A, Male, Power only, Input

  • Operating temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Relative humidity

    10% to 90% RH (non-condensing)

  • Certifications/Standards

    FCC, CE, RoHS

  • Dimensions (LxWxH)

    Housing only: 2.24 x 1.34 x 0.47" (5.69 x 3.40 x 1.19cm)
    Overall length (including cable): 9.8" (24.89cm)
    Embedded cable length: 7.68" (19.51cm) (HDMI & USB)

  • Weight

    0.10 lbs (0.05kg)

  • UPC Code

    662774040899

About SIIG Converter

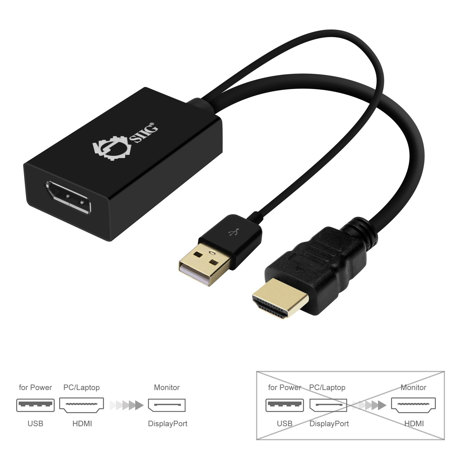

The HDMI to DisplayPort 4K Ultra HD Converter converts an HDMI output signal to DisplayPort output at up to 4Kx2K resolution.

SIIG Converter Features

  • Easily connect a DisplayPort monitor to a HDMI equipped notebook, desktop or other HDMI source device. Note: This is NOT a bi-directional adapter. DO NOT use for DisplayPort to HDMI conversion
  • Compliant with DisplayPort specification v1.2, supporting 1.62, 2.7Gbps and 5.4Gbps
  • Compliant with HDMI 1.4a specification, link rate up to 2.97Gbps/data pair
  • Supports video resolution up to 1920x1080 at 60Hz and 4Kx2K at 30Hz
  • Supports 7.1-ch audio, sample rate up to 192kHz
  • USB-Powered and Plug and play, no software required

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SIIG HDMI to DisplayPort 4K Ultra HD Converter
  • User Reference Guide
  • SIIG 2 Year Limited Warranty
