Review Summary
HDMI source device, such as computer PCs, Blu-ray players and media players
HDMI displays, monitors and HDTVs
HDMI cable
5GHz
Channel 0: 5.180 GHz (20MHz)
Channel 1: 5.220 GHz (20MHz)
Channel 2: 5.240 GHz (20MHz)
Channel 3: 5.240 GHz (40MHz)
Channel 4: 5.745 GHz (20MHz)
Channel 5: 5.765 GHz (20MHz)
Channel 6: 5.745 GHz (40MHz)
Channel 7: 5.765 GHz (40MHz)
Channel 8: 5.825 GHz (20MHz)
Channel 9: 5.805 GHz (20MHz)
Additional transmitter (part# CE-H23811-S1) and receiver (part# CE-H23911-S1) (Purchase separately)
Extender:
1 Transmitter (TX) to 1 Receiver (RX)
Splitter:
1 Transmitter (TX) to 2 Receivers (RX)
Switch:
2 Transmitters (TX) to 1 Receiver (RX)
2 Transmitters (TX) to 2 Receivers (RX)
H.264
<200ms
480p / 720p / 1080i / 1080p at 60Hz
Up to 165' (50.29m) (line of sight)
Up to 5m (16.40') (Input & Output)
Supports 2-Ch PCM stereo audio
Supports full frequency IR signal from 20KHz to 60KHz
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Blaster
2x Antenna
1x Power jack
1x Switch button
1x Reset button
With HDMI 1.3 & HDCP 1.2
Input: AC 100-240V / 50-60Hz
Output: DC 5V/2A
E335801 / Class VI
32 to 122 deg. F (0 to 50 deg. C)
14 to 140 deg. F (-10 to 60 deg. C)
0 to 90% RH (non-condensing)
FCC, CE, RoHS
Aluminum
5.51 x 1.06 x 3.10" (14.00 x 2.69 x 7.87cm)
0.61 lbs (0.28kg)
662774041209
Wirelessly transmits HDMI signals with stereo audio to a remote display (requires either HDMI Extender Kit part# CE-H23711-S1 sold separately or receiver unit part# CE-H23911-S1 sold separately) up to 165ft (line of sight)
Broadcast video content to up to two remotely located displays simultaneously, requires part# CE-H23911-S1 sold separately
Supports video resolutions up to 1080p Full HD to deliver stunning and crystal clear images
5GHz Dual Antenna wireless technology with 10 selectable wireless channels prevent signal interference and provide optimal reception quality

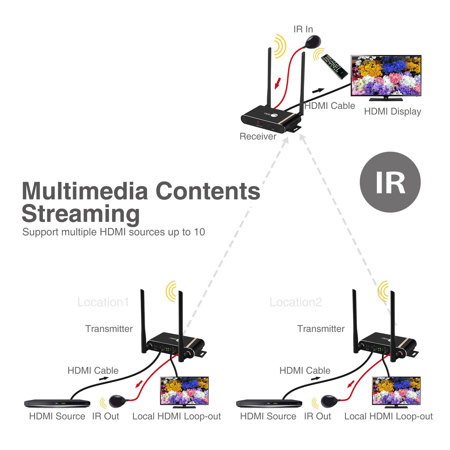

Supports up to 2 transmitter units (part# CE-H23811-S1 sold separately) and 2 receiver units (part# CE-H23911-S1 sold separately) allowing you to choose and broadcast any of the 2 sources to any of the 2 displays simultaneously
With built-in switch button and included palm size remote control to select the wireless channels of both RX and TX units to retrieve different video content or set for channel pairing
Included IR extension modules allow remote controlling the HDMI source device at the display unit
Supports local HDMI signal output and facilitates the screen monitoring of the HDMI source
Premium and durable aluminum housing improves heat dissipation and ensures system stability during long hours of operation
Slim and low profile design easily adopts into versatile application environment, mounting brackets included for different installation requirements
Note:
The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions and may be much less than the maximum.
