SIIG Dual Antenna Wireless Multi-Channel HDMI Receiver
See all SIIG items

SIIG Dual Antenna Wireless Multi-Channel HDMI Receiver for Expandable HDMI Extender/Transmitter

SKU: SIICEH23911S

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

SIIG Receiver Specifications

  • Requirements

    HDMI source device, such as computer PCs, Blu-ray players and media players
    HDMI displays, monitors and HDTVs
    HDMI cable

  • Wireless Technology

    5GHz

  • 10 Channels

    Channel 0: 5.180 GHz (20MHz)
    Channel 1: 5.220 GHz (20MHz)
    Channel 2: 5.240 GHz (20MHz)
    Channel 3: 5.240 GHz (40MHz)
    Channel 4: 5.745 GHz (20MHz)
    Channel 5: 5.765 GHz (20MHz)
    Channel 6: 5.745 GHz (40MHz)
    Channel 7: 5.765 GHz (40MHz)
    Channel 8: 5.825 GHz (20MHz)
    Channel 9: 5.805 GHz (20MHz)

  • Supported Topology

    Additional transmitter (part# CE-H23811-S1) and receiver (part# CE-H23911-S1) (Purchase separately)

    Extender:
    1 Transmitter (TX) to 1 Receiver (RX)
    Splitter:
    1 Transmitter (TX) to 2 Receivers (RX)
    Switch:
    2 Transmitters (TX) to 1 Receiver (RX)
    2 Transmitters (TX) to 2 Receivers (RX)

  • Video Compression Technology

    H.264

  • Wireless latency

    <200ms

  • Resolution

    480p / 720p / 1080i / 1080p at 60Hz

  • Distance

    Up to 165' (50.29m) (line of sight)

  • HDMI cable length

    Up to 5m (16.40') (Input & Output)

  • Audio

    Supports 2-Ch PCM stereo audio

  • IR signal

    Supports full frequency IR signal from 20KHz to 60KHz

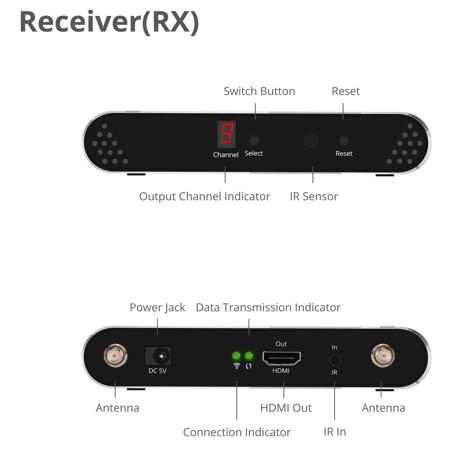

  • Connectors

    1x 19-pin HDMI, Type A, Female, Output
    1x 3.5mm jack, IR Receiver
    2x Antenna
    1x Switch button
    1x Power jack
    1x Reset button

  • Compliant

    With HDMI 1.3 & HDCP 1.2

  • Power Adapter

    Input: AC 100-240V / 50-60Hz
    Output: DC 5V/2A

  • UL Listed

    E335801 / Class VI

  • Operating temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Storage temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Relative humidity

    0 to 90% RH (non-condensing)

  • Certifications/Standards

    FCC, CE, RoHS

  • Housing material

    Aluminum

  • Dimensions (LxHxW)

    5.51 x 1.06 x 3.10" (14.00 x 2.69 x 7.87cm)

  • Weight

    0.61 lbs (0.28kg)

  • UPC Code

    662774041216

About SIIG Receiver

• Wirelessly receives HDMI signals with stereo audio (requires either Expandable HDMI Extender Kit part# CE-H23711-S1 sold separately or Expandable HDMI Extender - Transmitter part# CE-H23811-S1 sold separately) up to 165ft (line of sight)
• Supports video resolutions up to 1080p Full HD to deliver stunning and crystal clear images
• 5GHz Dual Antenna wireless technology with 10 selectable wireless channels prevent signal interference and provide optimal reception quality
• Supports up to 2 transmitter units (part# CE-H23811-S1 sold separately) and 2 receiver units (part# CE-H23911-S1 sold separately) allowing you to choose and broadcast any of the 2 sources to any of the 2 displays simultaneously
• With built-in switch button and included palm size remote control to select the wireless channels to retrieve different video content or set for channel pairing
• Included IR extension modules allow remote controlling the HDMI source device at the display unit
• Premium and durable aluminum housing improves heat dissipation and ensures system stability during long hours of operation
• Slim and low profile design easily adopts into versatile application environment, mounting brackets included for different installation requirements

Note:

The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions and may be much less than the maximum

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SIIG Dual Antenna Wireless Multi-Channel HDMI Receiver
  • Power Adapter
  • 2x Antennas
  • IR Receiver Extension Cable
  • 2x Mounting Ears
  • 4x Screws
  • Remote Control
  • User Reference Guide
  • SIIG 2 Year Limited Warranty
