SIIG Splitter and Amplifier Specifications

  • Requirements

    HDMI source device such as computers, game consoles, Blu-ray/DVDplayers and media players
    HDMI displays, monitors and HD TVs

  • Chipset

    IT6663FN+IT6664E

  • Compliant with

    HDMI 2.0 compliant
    HDCP 2.2 compliant

  • Supports

    4K2K at 60 4:4:4 8bit
    HDR 4K2K at 60 4:2:0 10bit
    xvYCC, x.v.Color & Deep Color
    Supports resolution down scaling from 4K to 1080p
    Embedded EDID and EDID learning via rotary control switch

  • Video bandwidth

    18Gbps (single-link 600MHz)

  • Maximum Resolution

    3840x2160 at 60Hz (YUV 4:4:4)
    HDR 3840x2160 at 60Hz (YUV 4:2:0)

  • Display Mode

    Mirror

  • Audio support

    Dolby Digital, DTS-HD and Dolby TrueHD audio

  • ESD protection

    +/-15kV Air / +/-8kV Contact

  • Housing Material

    Aluminum

  • Transmission distance (HDMI cable)

    4K at 60Hz: Up to 10M (5m/In; 5m/Out)
    1080p & 4K at 30Hz: Up to 15M (5m/In; 10m/Out)

  • Connector

    1x 19-Pin, HDMI, Type A, Female, Input
    8x 19-Pin, HDMI, Type A, Female, Output
    1x 5-Pin, Micro USB, Female, Firmware update
    1x Rotary control switch, EDID Mode selection

  • Power Adapter

    Input: 100-240VAC, 50/60 Hz
    Output: 5VDC, 2A

  • Operating temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Relative humidity

    20% to 90% RH (non-condensing)

  • Certifications/Standards

    FCC, CE, RoHS

  • Dimensions (LxHxW)

    9.10 x 0.90 x 2.70" (23.11 x 2.29 x 6.86cm)

  • Weight

    1.85 lbs (0.84kg)

  • UPC Code

    662774041292

About SIIG Splitter and Amplifier

• Distributes HDMI video and audio from a single source to up to 8 HDMI displays simultaneously while maintaining signal quality
• Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
• Supports up to 4K at 60Hz (YUV 4:4:4 8-bit), HDR 4K at 60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
• Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
• Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
• Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs
• EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility

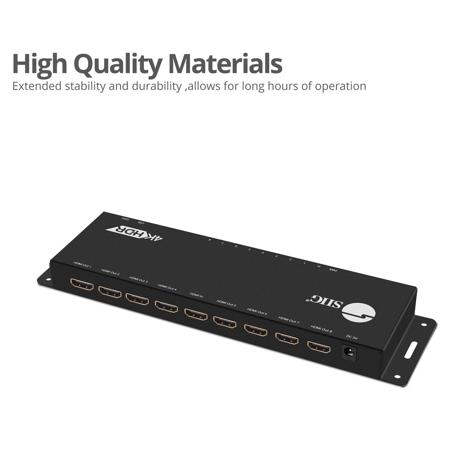

• Low heat generation with sturdy metal housing provides excellent heat dissipation, durability and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
• Easy to cascade multiple splitters for more displays. Supports up to 10 layers
• LED indication for power and signal

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SIIG 1x8 HDMI 2.0 Splitter and Distribution Amplifier with Auto Video Scaling
  • Power Adapter
  • Screw Kit
  • User Reference Guide
  • SIIG 3 Year Limited Warranty
