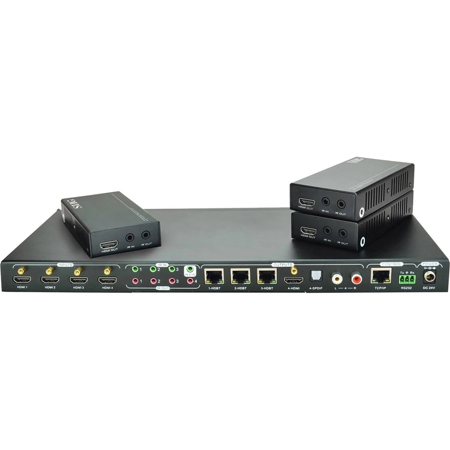

SIIG 4x4 4K HDMI HDBaseT Matrix Switcher Kit with 3x HDBaseT Receivers

Overhaul your audio-visual setup with the 4x4 4K HDMI HDBaseT Matrix Switcher Kit, a professional-grade solution designed for high-quality signal transmission. This comprehensive kit includes a 4K HDBaseT Matrix Switcher and three HDBaseT Receivers, along with all necessary accessories.

The 4K HDBaseT Matrix Switcher is a robust device, equipped with four HDMI inputs capable of handling a maximum signal of 4kx2K@60Hz. It also features three IR inputs, one IR EYE, four IR outputs, three HDBaseT outputs, one HDMI output, one SPDIF output, and one L&R RCA output. For seamless control, it includes a TCP/IP, RS232 control port via a phoenix connector.

Each HDBaseT Receiver in the kit is designed with an HDBaseT input, an IR input, an IR output, and an HDMI output. These receivers are powered directly by the Matrix Switcher, eliminating the need for separate power sources.

The Matrix Switcher allows for flexible source selection through front panel buttons, IR, RS 232, or GUI. The chosen source is then delivered to HDBaseT zoned outputs 1-3 and the HDMI output. This device is capable of delivering 4K signals up to 40m and 1080p signals up to 70m, all while powering the receivers via a single CAT5e cable. For optimal performance, it is recommended to use a high-quality CAT6 cable.

The Matrix Switcher also supports EDID management and is HDCP 2.2, 1.4 compliant, ensuring compatibility with a wide range of devices. Audio sources can be selected via RS232 commands and TCP/IP at the Matrix Switcher or by a 3rd party control, offering you complete control over your audio-visual experience.

In conclusion, the 4x4 4K HDMI HDBaseT Matrix Switcher Kit is a comprehensive, professional-grade solution for managing and enhancing your audio-visual setup.
