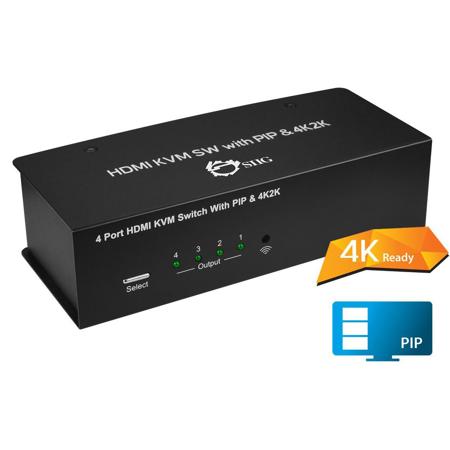

SIIG 4x1 USB HDMI KVM Switch with 4Kx2K and PIP Controls
See all SIIG items

SIIG 4x1 USB HDMI KVM Switch with 4Kx2K and PIP Controls

SKU: SIICEKV0612S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG KVM Switch Specifications

  • Requirements

    Windows and Mac computer with HDMI output
    HDMI enabled game consoles, Blu-Ray DVD players and other HDMI devices

  • Chipset

    Silicon Image Sil9687 + EPF021A + GL850G

  • Supported resolution

    480p/720p/1080i/1080p/3840x2160 at 30Hz (PIP monitor up to 1080p only)

  • HDMI frequency

    Up to 300MHz (up to 3Gbps)

  • Remote control

    Up to 5m (16.40')

  • HDMI distance

    Up to 5m (16.40')

  • Interfaces/Ports

    Input:
    4x 19-pin, Type A, HDMI, Female
    4x 4-pin, Type B, USB 2.0, Female
    1x 3.5mm, Microphone jack

    Output:
    4x 3.5mm, Microphone jack
    1x 19-Pin, HDMI, Female
    3x 4-Pin, Type A, USB 2.0, Female

  • KVM Ports

    4

  • KVM Cable Range

    Up to 5m (16.40')

  • Video Type

    HDMI (v1.4)

  • HDCP Compliant

    Yes

  • Audio

    Yes

  • Switch Method

    Switches between four computers using manual select button, keyboard hot keys (does not work with Mac keyboards), or IR remote control

  • Power adapter Input

    100-240V, 50-60Hz

  • Power adapter Output

    DC 5V/3A

  • Operating temperature

    32 to 140 deg. F (0 to 60 deg. C)

  • Storage temperature

    -4 to 158 deg. F (-20 to 70 deg. C)

  • Relative humidity

    10 to 90% non-condensing

  • Certifications/Standards

    FCC, CE, RoHS

  • Housing material

    Aluminum

  • Dimensions (WxHxD)

    6.73 x 2.97 x 1.83" (17.09 x 7.54 x 4.65cm)

  • Weight

    0.79 lbs (0.36kg)

  • UPC Code

    662774023915

About SIIG KVM Switch

• Designed to share an HDTV or display, USB keyboard and mouse with microphone between four USB/HDMI computers or devices
• Supports high definition 4Kx2K video resolution to deliver stunning and crystal clear images/videos
• Easily switching between computer/device via the on board front panel select button or the included IR remote control makes this USB HDMI KVM Switch user-friendly to operate
• High-quality circuit design with external power adapter provide smooth and reliable performance
• PIP feature allows up to 3 sources to display simultaneously on the single screen
• Premium metal housing effectively reduces electromagnetic interference while offering rapid heat dissipation for stable operation and long life
• Built-in USB port allows sharing of USB peripherals such as pen drives or printers

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SIIG 4x1 USB HDMI KVM Switch
  • 2x USB HDMI KVM Cable with Audio and Mic
  • 4x Housing Rubber Pad
  • IR Remote Controller
  • Power Adapter
  • Installation Guide
  • SIIG 2 Year Limited Warranty
